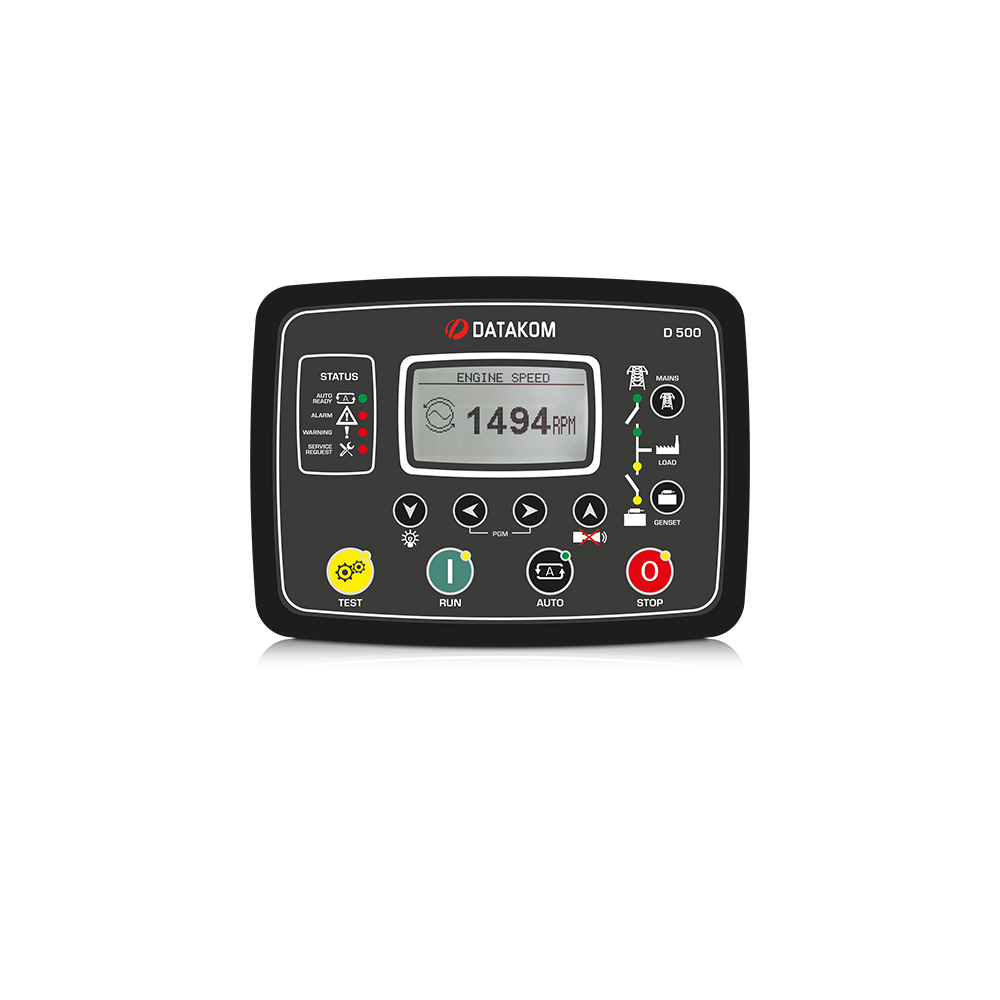

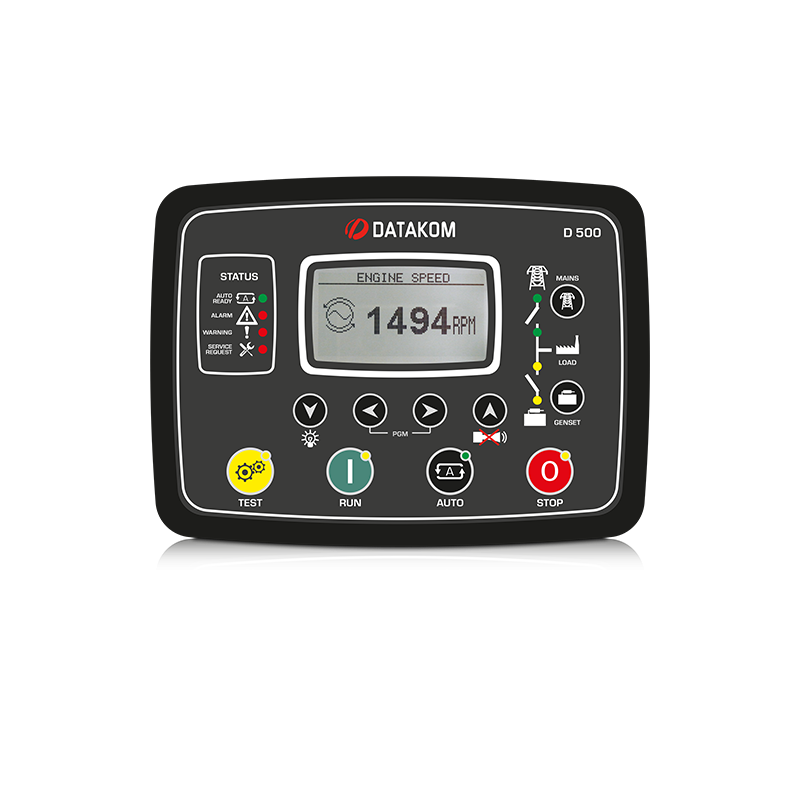

D-500 Advanced Genset Controller

New product

WEB BASED D-500

The D-500 is a next generation genset control unit combining multi-functionality and wide communication possibilities together with a reliable and low cost design.

The unit complies and mostly exceeds world’s tightest safety, EMC, vibration and environmental standards for the industrial category.

Less

Software features are complete with easy firmware upgrade through USB port.

The Windows based PC software allows monitoring and programming through USB, RS-485, RS-232, Ethernet and GPRS.

The Rainbow Scada web service allows monitoring and control of an unlimited number of gensets from a single central location.

• AMF unit (uninterrupted transfer)

• ATS unit (uninterrupted transfer)

• Remote start controller

• Manual start controller

• Engine controller

• Remote display panel

• Harmonic analysis of V & I

• Internal battery (optional)

• Long term data record on flash

• Input & output extension

• Ethernet (10/100Mb)

• 4-band GPRS modem (optional)

• USB Host & USB Device

• RS-485 (2400-115200baud)

• RS-232 (2400-115200baud)

• Micro SD card slot

• J1939-CANBUS

• Geo-locating through GSM

• GPS support (USB & RS-232)

• Embedded web server

• Web monitoring & programming

• Internet Central Monitoring

• SMS message sending

• E-mail sending

• Free PC software: Rainbow Plus

• Modbus RTU & Modbus TCP/IP

• SNMP

 Diesel and gas genset support

 400Hz operation support

 400 event logs, full snapshot

 All parameters front panel editable

 3 level configuration password

 128x64 graphical LCD display

 Downloadable languages

 Waveform display of V & I

 Harmonic analysis of V & I

 Synchroscope & check synch

 Allows closed transfers

 16Amp MCB & GCB outputs

 8 configurable digital inputs

 Inputs expandable to 40

 8 configurable digital outputs

 Outputs expandable to 40

 4 configurable analog inputs

 Both CANBUS-J1939 & MPU

 3 configurable service alarms

 Multiple automatic exerciser

 Weekly operation schedule

 Dual mutual standby with equal aging of  gensets

 Manual “speed fine adjust” on selected ECUs

 Automatic fuel pump control

 Disable protections feature

 Excess power protection

 Reverse power protection

 Overload IDMT protection

 Load shedding, dummy load

 Multiple load management

 Current unbalance protection

 Voltage unbalance protection

 Fuel filling & fuel theft alarms

 Battery back-up real time clock

 Idle speed control

 Battery charge run enabled

 Combat mode support

• Multiple nominal conditions

 Contactor &  MCB drive

 4 quadrant genset power counters

 Mains power counters

 Fuel filling counter

 Fuel consumption counter

 Modem & ethernet diagnostics

 Configurable through USB, RS-485, Ethernet  and GPRS

 Free configuration program

 Allows SMS controls

 Ready for central monitoring ethernet & GPRS

 Mobile genset support

 Automatic GSM geo-location

 GPS connectivity (USB&RS232)

 Dynamic DNS support

 Easy USB firmware upgrade

 IP65 rating with standard gasket
