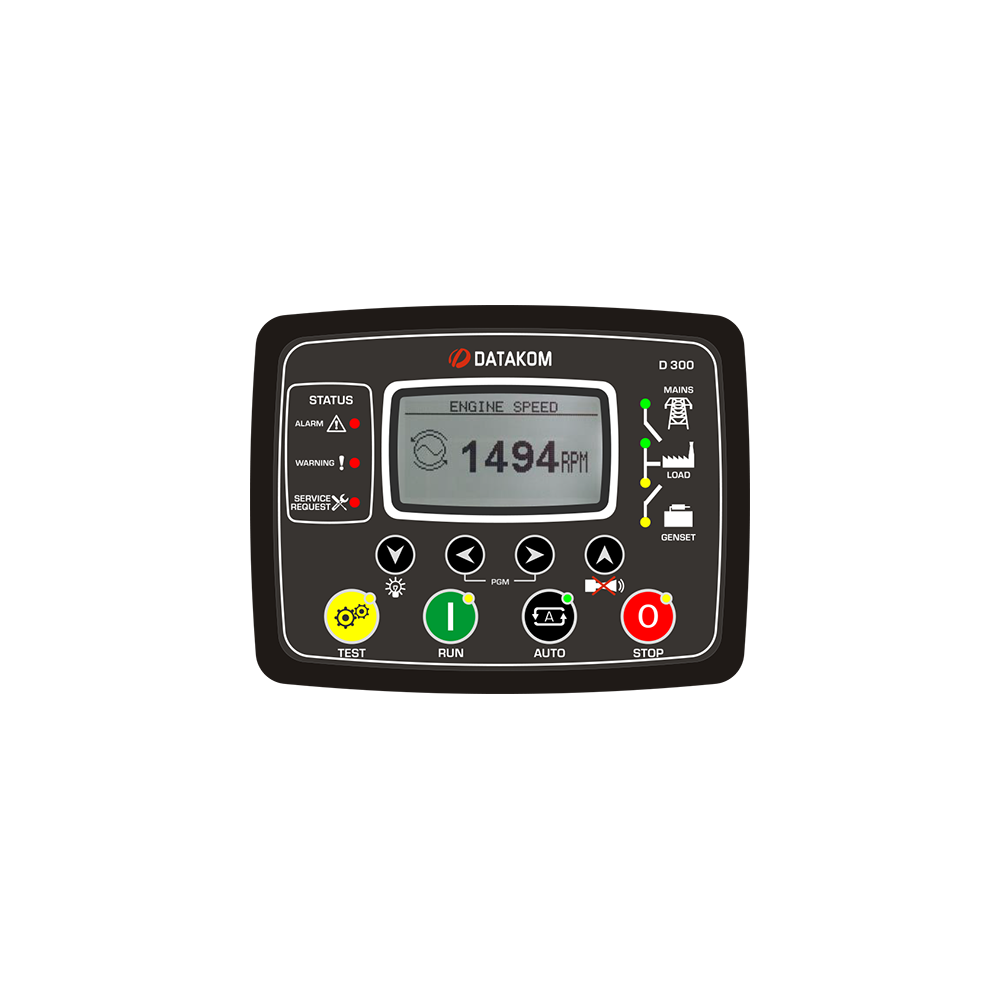

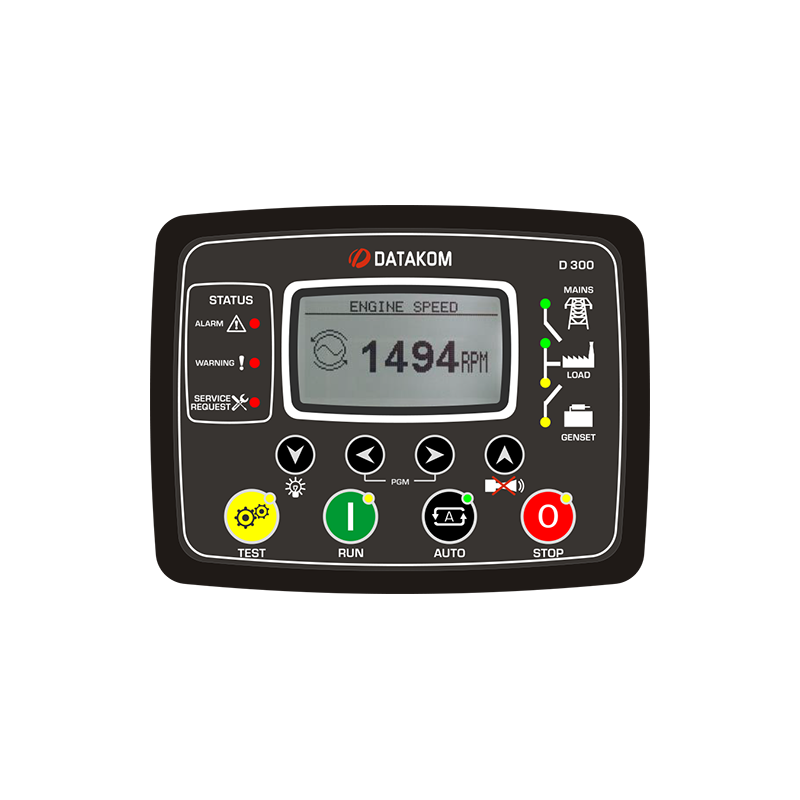

D-300 Advanced Genset Controller
New product
WEB BASED D-300
The D-300 is a cost effective, modern technology
genset controller ready for internet monitoring.
Its main advantages are multifunctionality,
support for multiple topologies, harmonic analysis and detailed
power measurements.
Software features are complete with easy firmware upgrade through USB port.
The Windows based PC software allows monitoring and programming through USB, RS-232 and GPRS.
The Rainbow Scada web service allows monitoring and control of an unlimited number of gensets from a single central location.
• AMF unit
• ATS unit
• Remote start controller
• Manual start controller
• Engine controller
• Remote display panel
• 4-band GPRS modem (optional)
• USB Device
• RS-232 (2400-57600baud)
• J1939-CANBUS
• Geo-locating through GSM
• GPS support (RS-232)
• Internet Central Monitoring
• SMS message sending
• E-mail sending
• Free PC software: Rainbow Plus
• Modbus RTU
|
• Diesel and gas genset support • 400Hz operation support • 400 event logs, full snapshot • All parameters front panel editable • 3 level configuration password • 128x64 graphical LCD display • Downloadable languages • Waveform display of V & I • Harmonic analysis of V & I • 16Amp MCB & GCB outputs • 8 configurable digital inputs • 6 configurable digital outputs • 3 configurable analog inputs • Both CANBUS-J1939 & MPU • 3 configurable service alarms • Multiple automatic exerciser • Weekly operation schedule
|
• Dual mutual standby with equal aging of gensets • Manual “speed fine adjust” on selected ECUs • Automatic fuel pump control • Disable protections feature • Excess power protection • Reverse power protection • Overload IDMT protection • Load shedding, dummy load • Multiple load management • Current unbalance protection • Voltage unbalance protection • Fuel filling & fuel theft alarms • Battery back-up real time clock • Idle speed control • Battery charge run enabled • Combat mode support |
• Multiple nominal conditions • Contactor & MCB drive • 4 quadrant genset power counters • Mains power counters • Fuel filling counter • Fuel consumption counter • Modem diagnostics display • Configurable through USB, RS-232 and GPRS • Free configuration program • Allows SMS controls • Ready for central monitoring • Mobile genset support • Automatic GSM geo-location • GPS connectivity (RS232) • Easy USB firmware upgrade • IP65 rating with optional gasket |
