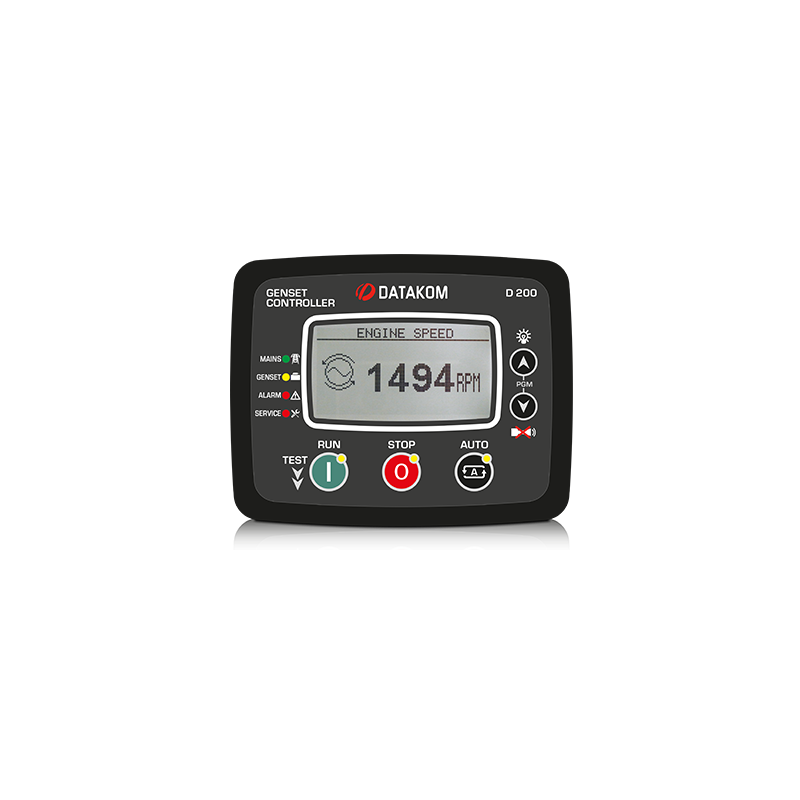

D-200 Advanced Genset Controller
New product
WEB BASED D-200
The D-200 is the lowest cost genset controller
ready for internet monitoring.
Despite small dimensions and low cost, its main
advantages are multifunctionality, support for
multiple topologies, harmonic analysis and detailed power measurements.
Software features are complete with easy firmware upgrade through USB port.
The Windows based PC software allows monitoring and programming through USB and GPRS.
The Rainbow Scada web service allows monitoring and control of an unlimited number of gensets from a single central location.
• AMF unit
• ATS unit
• Remote start controller
• Manual start controller
• Engine controller
• 4-band GPRS modem (optional)
• USB Device
• J1939-CANBUS (optional)
• Geo-locating through GSM
• Internet Central Monitoring
• SMS message sending
• E-mail sending
• Free PC software: Rainbow Plus
|
• Diesel and gas genset support • 400Hz operation support • 400 event logs, full snapshot • All parameters front panel editable • 3 level configuration password • 128x64 graphical LCD display • Downloadable languages • Waveform display of V & I • Harmonic analysis of V & I • 16Amp MCB & GCB outputs • 6 configurable digital inputs • 5 configurable digital outputs • 3 configurable analog inputs • Standard MPU input • Optional CANBUS-J1939 • 3 configurable service alarms
|
• Dual mutual standby with equal aging of gensets • Manual “speed fine adjust” on selected ECUs • Automatic fuel pump control • Disable protections feature • Excess power protection • Reverse power protection • Overload IDMT protection • Load shedding, dummy load • Multiple load management • Current unbalance protection • Voltage unbalance protection • Fuel filling & fuel theft alarms • Idle speed control • Battery charge run enabled
|
• Combat mode support • Multiple nominal conditions • Contactor & MCB drive • 4 quadrant genset power counters • Mains power counters • Fuel filling counter • Fuel consumption counter • Modem diagnostics display • Configurable from USB & GPRS • Free configuration program • Allows SMS controls • Ready for central monitoring • Mobile genset support • Automatic GSM geo-location • Easy USB firmware upgrade • IP65 rating with optional gasket |
