DKG-209 Automatic Mains Failure Unit
New product

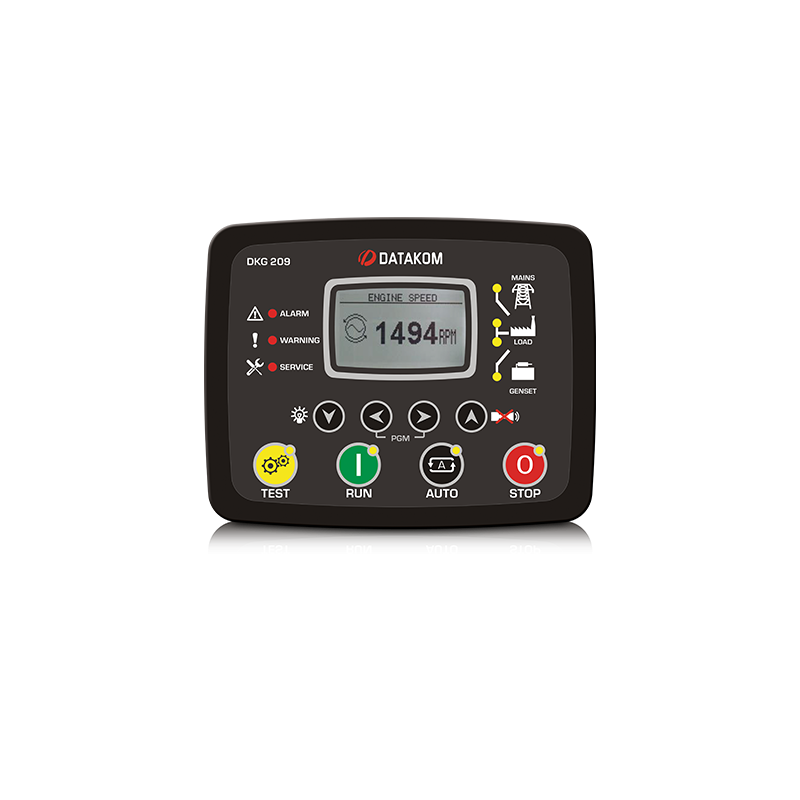

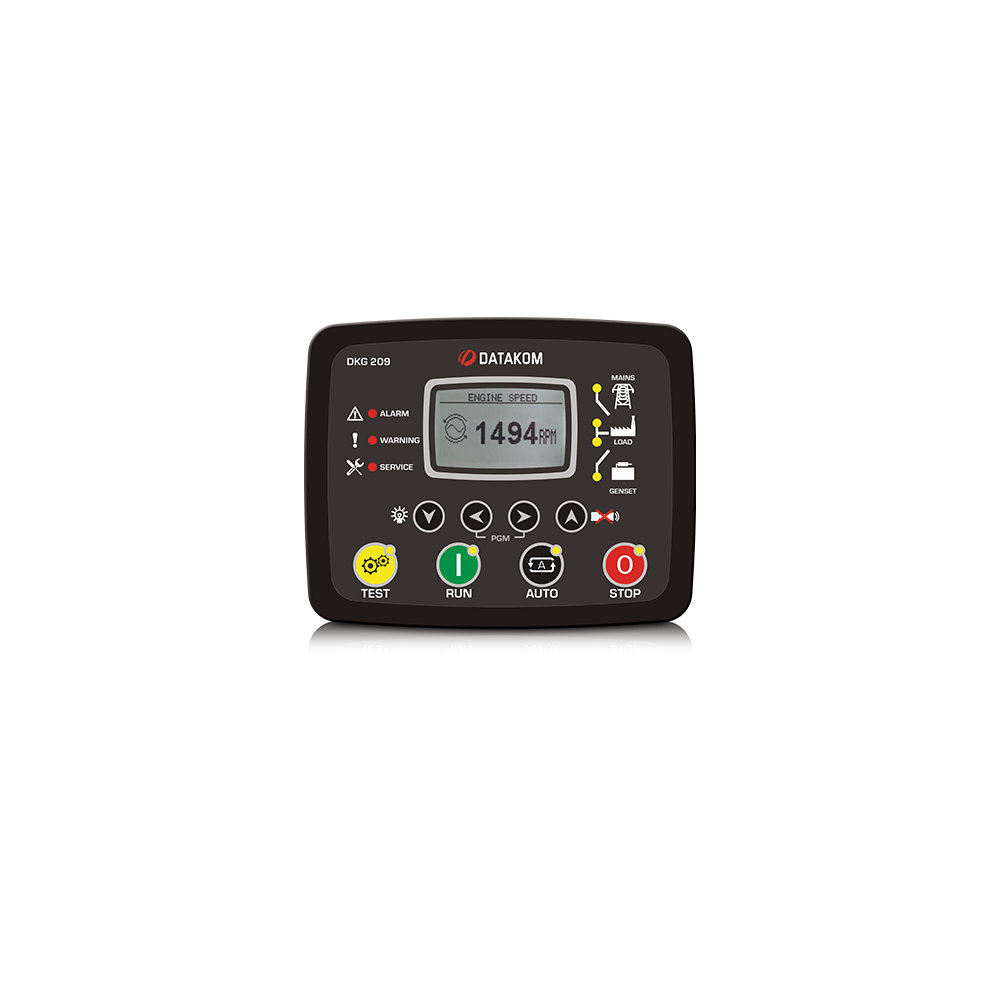

DKG-209 AUTOMATIC MAINS FAILURE UNIT
The DKG-209 is a comprehensive AMF unit for single genset standby operations.
It monitors mains phase voltages, frequency and phase rotation, runs the genset in case of mains failure and transfers the load between mains and genset.
When the genset is running, it monitors the engine and the alternator and shuts-down the genset in case of failure.
The unit is able to initiate modem calls and send SMS messages through optional external modem.
The unit provides a comprehensive set of digitally adjustable timers, threshold levels, input and output configurations and operating sequences. All programs may be modified via front panel pushbuttons, and do not require an external unit.
Last 100 faults are stored in the event log file. The event log includes not only the engine-hours information, but also a comprehensive list of measured genset parameters at the time that the fault has occurred.
The WINDOWS based RAINBOW program allows remote monitoring and control.
True RMS measurements
Dual genset mutual standby operation
Event logging with engine run hours stamp and measurements
Field adjustable parameters
Logic level serial port
Free MS-Windows Remote monitoring SW
GSM and PSTN modem support
GSM SMS message sending on fault
MODBUS communications
Multiple language support
Customer logo display capability
16 Amp contactor outputs
1 Amp DC semiconductor outputs
Configurable analogue inputs: 3
Configurable digital inputs: 5
Configurable digital outputs: 1
Total digital outputs: 5
Plug-in connection system
