DKG-217 Manuel And Remote Start Unit
New product

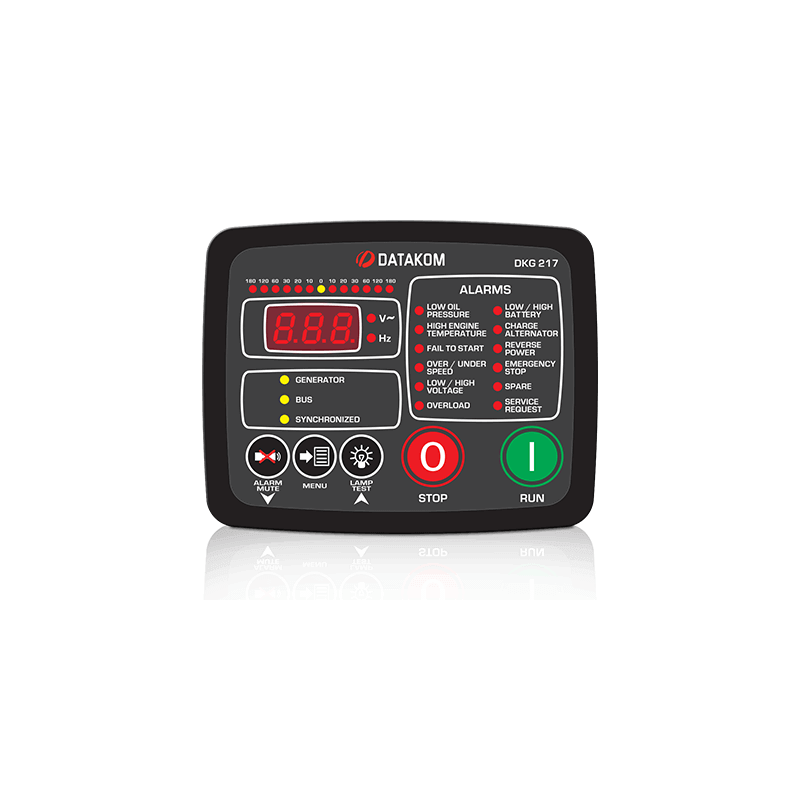

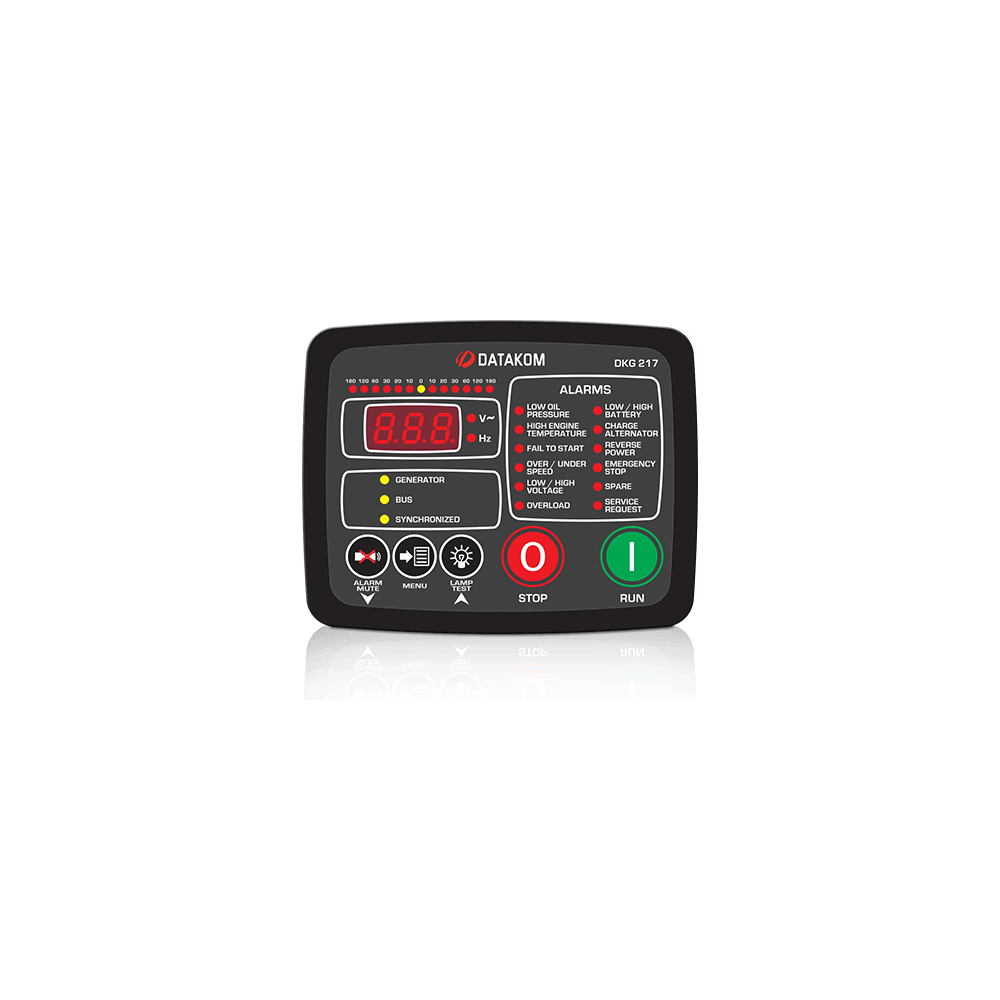

Datakom DKG-217 Manuel And Remote Start Unit
Manual starting and stopping
Zero power consumption at rest
Remote Start operation available
LED bargraph synchroscope
Programmable ΔV, Δf, Δθ for check synch relay
Engine control
Generator protection
Built in alarms and warnings
3 phase genset voltage inputs
1 phase genset CT input
1 phase busbar voltage input
Engine oil pressure measurement
Engine coolant temperature measurement
Genset active power measurement (single phase)
Genset power factor measurement (single phase)
Periodic maintenance request indicator
Engine hours run counter
Event logging
Statistical counters
Front panel configurable
100+ adjustable parameters
Logic level serial port
Optional RS-232 adapter
Free MS-Windows Remote monitoring SW:
-local, LAN, IP and modem connection
-monitoring, download of parameters
LED displays
Configurable analogue inputs: 2
Configurable digital inputs: 5
Configurable relay outputs: 2
Total relay outputs: 5
Survives cranking dropouts
Sealed front panel
Plug-in connection system for easy replacement
Small dimensions (130x100x39mm)
