EBC 1210 Battery Charger Units – EBC Series

SMPS technology for maximum efficiency and reliablity with minimum heat dissipation.

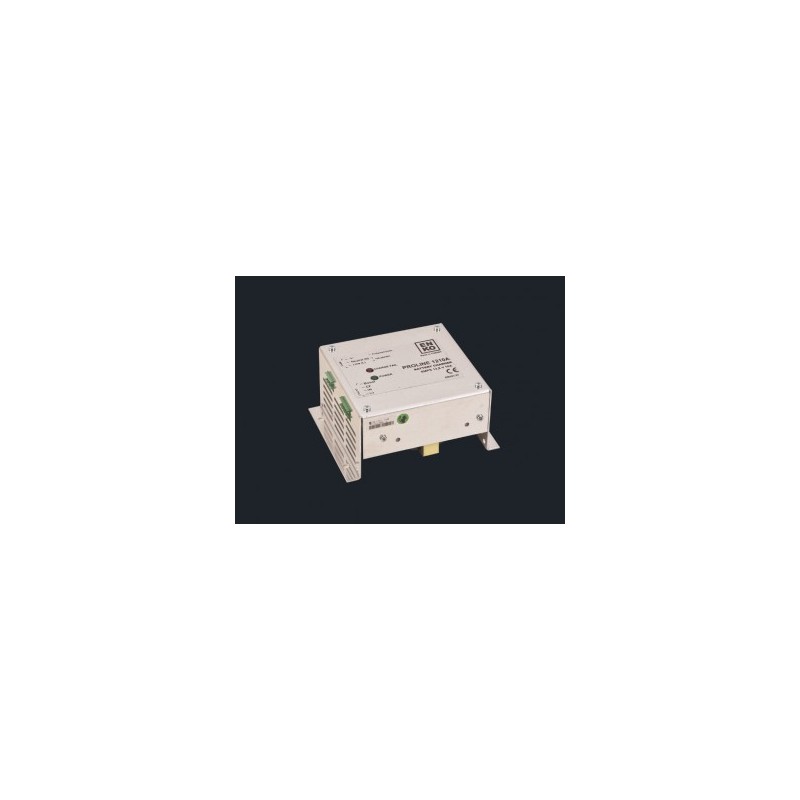

EBC 1210M can deliver continuous charging current of 10A into 12V battery system (voltage is set to 13.8Vdc, with an option of up to 14.7Vdc) These battery chargers are designed with performance in mind and special care is taken for protecting and extending the life-time of the battery.

EBC 1210M is designed with “Switched Mode” technology, where the switching transistor has only two states, ON or OFF, which increases the overall efficiency, hence reduces the excess heat dissipation and in return, increasing the device life-time and reliability.

The control system is also designed in such a way that; battery is charged in three stages:

• Constant current mode (protecting battery cells)
• Constant voltage mode (reducing the charge current)
• Float charge (compensation of internal self-discharge)

Constant current mode makes sure that; when the battery is drained down below its rated capacity, the high charge current flow into the battery is limited in order to protect the cells and reduce damage to the plates.

As the battery capacity is recovered, each cell voltage reaches up to 2.30Vdc to 2.45Vdc level, which means that the required charging current starts to reduce.

When the required battery terminal voltage is fully reached, the charger keeps supplying just enough current in order to compensate for the internal self-discharge (float charge). This ensures that the battery can maintain its high charge state and deliver its rated out-put current, when ever required.

The charger is also designed to operate with Constant Power output, where full output power can be delivered into the load up to 60° C ambient temperature. The output power is linearly de-rated down to zero at 70°C. This function ensures that the charger can deliver maximum available power to the load under any operating conditions without reducing charger reliability.
