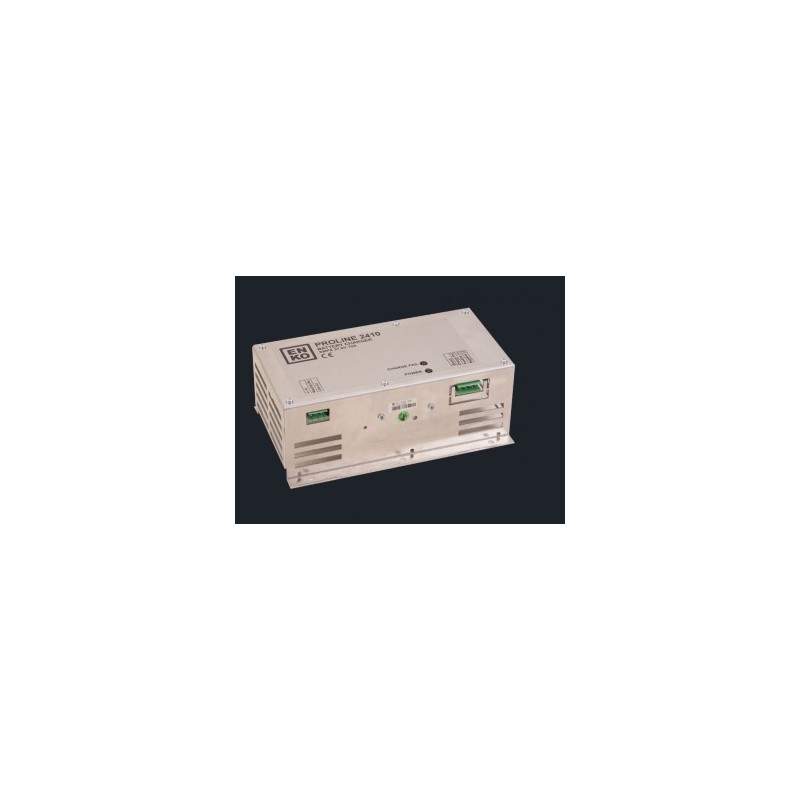

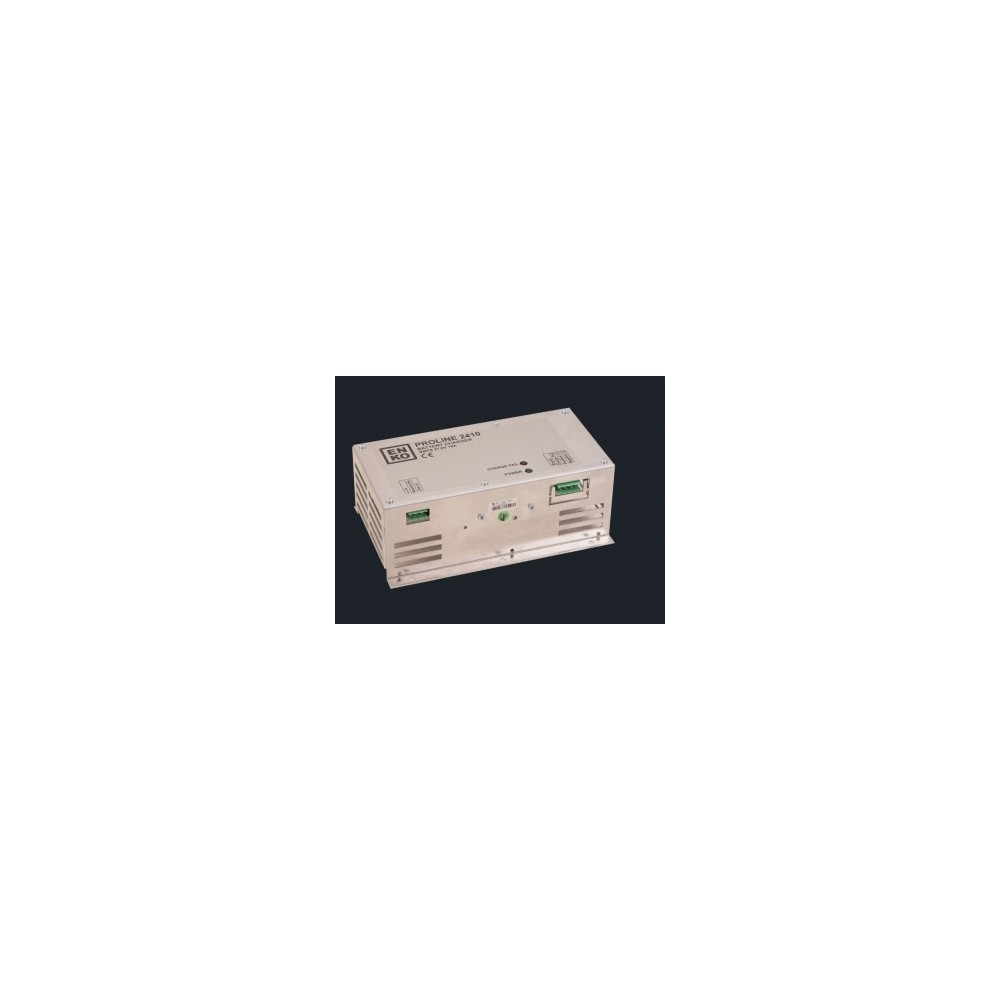

EBC 2410 Battery Charger Units – EBC Series

SMPS technology for maximum efficiency and reliablity with minimum heat dissipation.

EBC 2410M can deliver continuous charging current of 10A into 24V battery system (voltage is set to 27.6Vdc, with an option of up to 29.4Vdc) These battery chargers are designed with performance in mind and special care is taken for protecting and extending the life-time of the battery.

EBC 2410M is designed with “Switched Mode” technology, where the switching transistor has only two states, ON or OFF, which increases the overall efficiency, hence reduces the excess heat dissipation and in return, increasing the device life-time and reliability.

The control system is also designed in such a way that; battery is charged in three stages:

• Constant current mode (protecting battery cells)
• Constant voltage mode (reducing the charge current)
• Float charge (compensation of internal self-discharge)

Constant current mode makes sure that; when the battery is drained down below its rated capacity, the high charge current flow into the battery is limited in order to protect the cells and reduce damage to the plates. Charging characteristics are compliant to DIN41772/DIN41773; power limited.

As the battery capacity is recovered, each cell voltage reaches up to 2.30Vdc to 2.45Vdc level, which means that the required charging current starts to reduce.

When the required battery terminal voltage is fully reached, the charger keeps supplying just enough current in order to compensate for the internal self-discharge (float charge). This ensures that the battery can maintain its high charge state and deliver its rated out-put current, when ever required.

The charger is also designed to operate with Constant Power output, where full output power can be delivered into the load up to 60° C ambient temperature. The output power is linearly de-rated down to zero at 70°C. This function ensures that the charger can deliver maximum available power to the load under any operating conditions without reducing charger reliability.

Typical Cell charging characteristics of the charger is shown in the table. The Cell is part of the battery and 24V batteries contain 12 cells. Factory setting of the charger allows each Cell to be charged to 2.30Vdc, which corresponds to 27.60Vdc terminal voltage. User can use an option up to 2.45Vdc per Cell, which corresponds to 29.40Vdc battery terminal voltage.

Each charging stage can be seen on the table. Initial cell charging is achieved with constant current mode, which limits the current such that it does not damage the cell plates. Normal charging time should be calculated as 10hr to 12hr. This requires typical charging current rating of 10% of the rated battery current capacity.

After the initial charging stage is completed, charge current starts to decrease as the cell voltage approaches 2.30Vdc. This takes approximately 60% of the charging period and is necessary to equalize each Cell voltage within the battery. During this period, the charger ensures stable constant voltage across the battery terminals.

After the charging is completed, the battery keeps draining current from the charger in order to compensate its internal resistive losses, called Self Discharging of the battery. This needs to be compensated in order to keep the battery charge at its highest condition.
