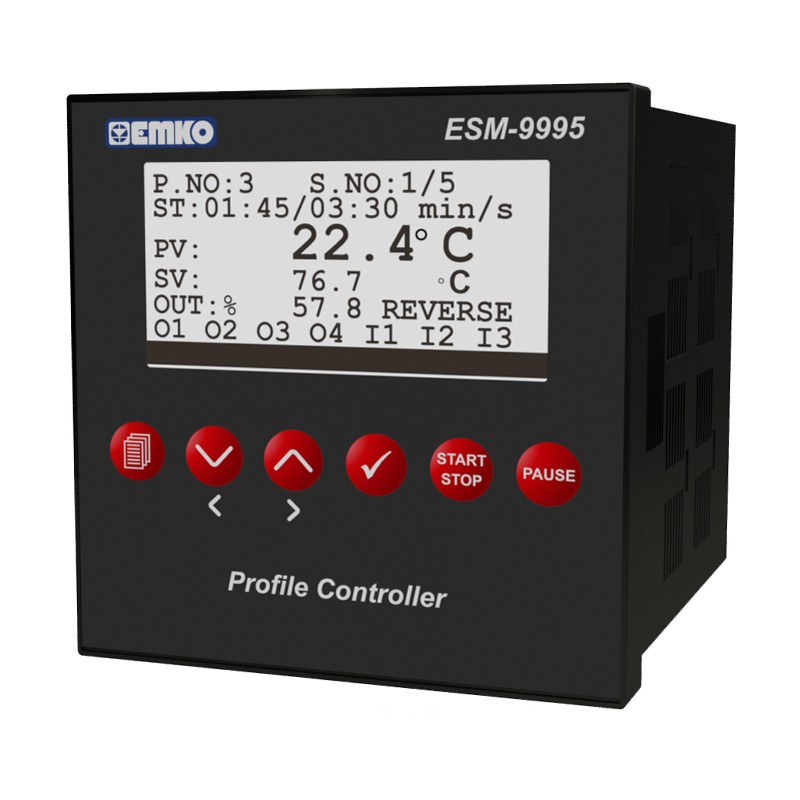

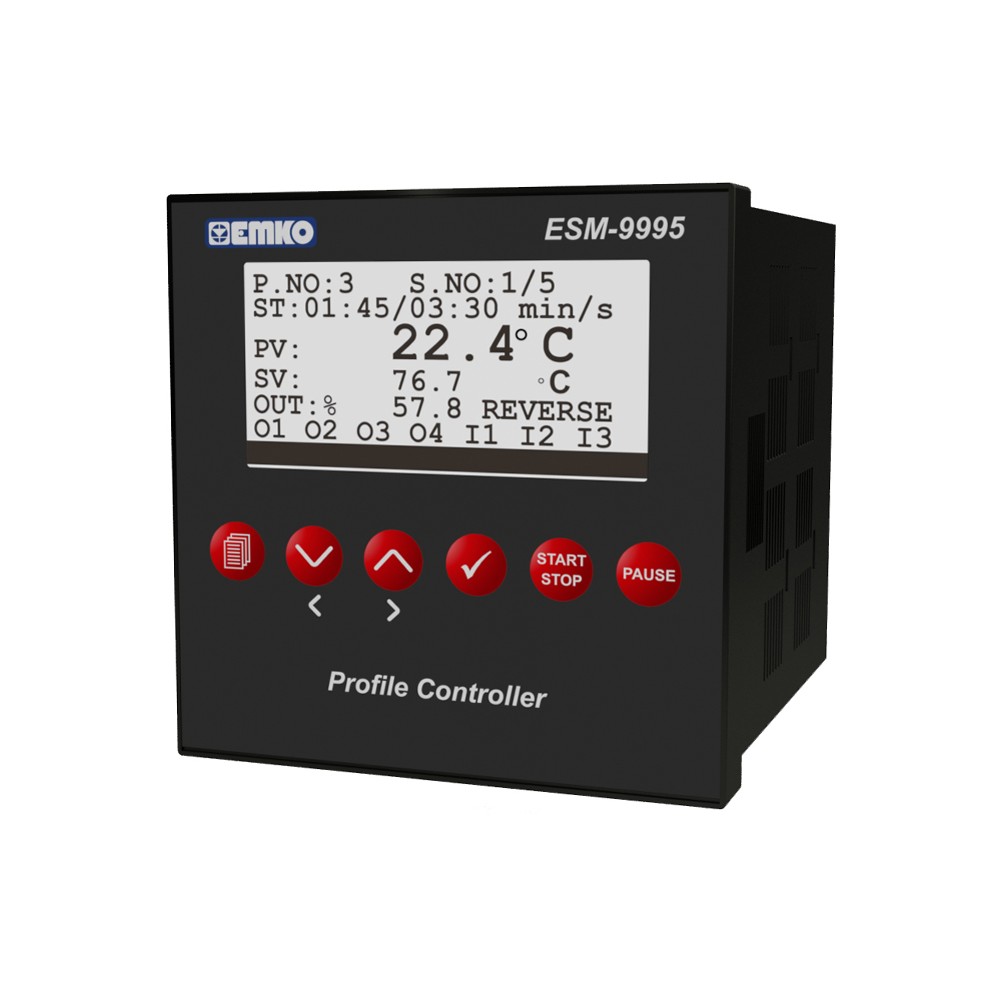

ESM-9995 1000 steps Profile Controller

ESM-9995
1000 steps Profile Controller

- 100 program, 1000 step control - Programmable relay functions per steps - Universal process input (TC, RTD, mV Z , V Z , mA Z ) - 6 different electric cut-out behaviour - ON/OFF, P, PI, PD, PID reverse and direct control - Motorized valve control with feedback - Motorized valve control floating control - Auto-Tuning and Self-Tuning (automatic calculations of PID parameters) - Automatic / Manual operating modes - Bumpless transfer ability - Sensor Error detection - Remote Set control - Re-transmission (for process, SET values) - Operating with Real Time Clock (RTC) - 8 set point which is selected with digital inputs - ModBus ASCII/RTU communication protocol

Housing & Mounting : 96mm x 96mm x 87.5mm 1/4 DIN 43700 plastic housing for Panel mounting.
Panel cut-out is 92x92mm.

Protection Class: NEMA 4X (IP65 at front, IP20 at rear).

Weight: Approximately 0.34 Kg.

Environmental Ratings: Standard, indoor at an altitude of less than 2000 meters with none condensing humidity.

Storage/Operating Temperature: -40 C to +85 C / 0 C to +50 C

Storage/Operating Humidity: 90 % max. (None condensing)

Installation : Fixed installation

Overvoltage Category : II

Pollution Degree: II, office or workplace, none conductive pollution

Operating Conditions: Continuous

Supply Voltage and Power: 100 - 240 V V (-%15 / +%10) 50/60 Hz. 6VA, 24 V V (-%15 / +%10) 50/60 Hz. 6VA

24 V Z (-%15 / +%10) 6W

Analogue input 1: Universal input (TC, RTD, ZVoltage/Current)

Termocouple input types: Selectable by parameters

L (DIN43710) , J ,K ,R ,S ,T ,B ,E ,N (IEC584.1)(ITS90) , C (ITS90)

Thermoresistance Input Types: PT 100 (IEC751) (ITS90)

ZVoltage Input Types: Selectable by parameters 0...50mVZ, 0...5VZ, 0...10VZ

ZCurrent Input Types: Selectable by parameters 0...20mAZ, 4...20mAZ

Analogue input 2 : Remote Set input ( 0...20mAZ, 4...20mAZ)

Analogue input 3 : Motorized Valve Feedback Potantiometer input.(1K-10K)

Accuracy: ± 0,25% of full scale for thermocouple, thermoresistance and voltage, ± 0,70% of full scale for current

Cold Junction Compensation : Automatically ± 0.1°C/1°C.

Line Compensation : Maximum 10

Sensor Break Protection : Upsc

Profile Programs and Steps : 100 Program to 1000 Step

Control Forms : Programmable ON / OFF, P, PI, PD or PID
