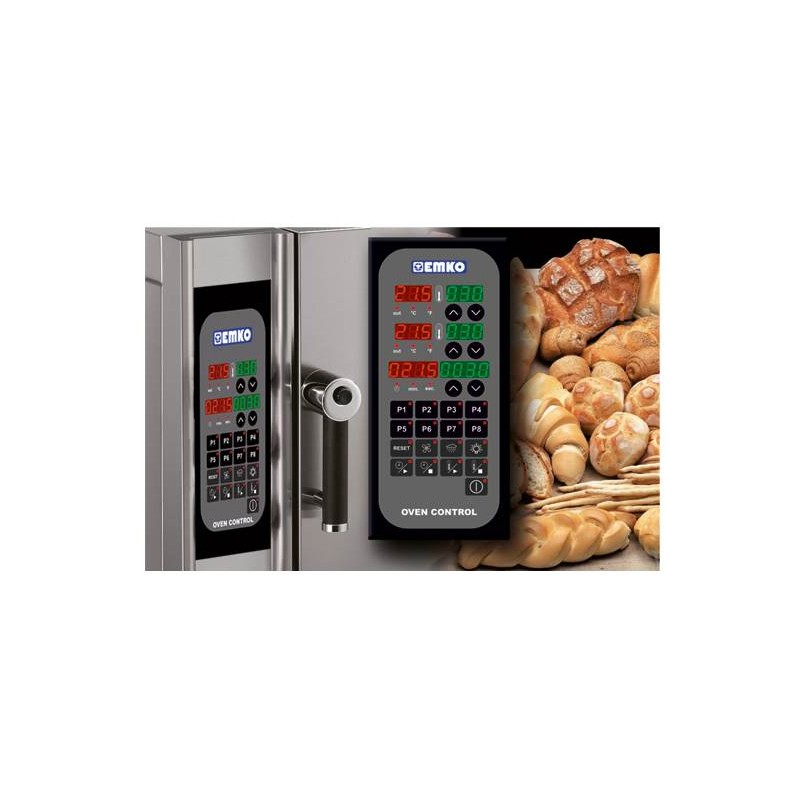

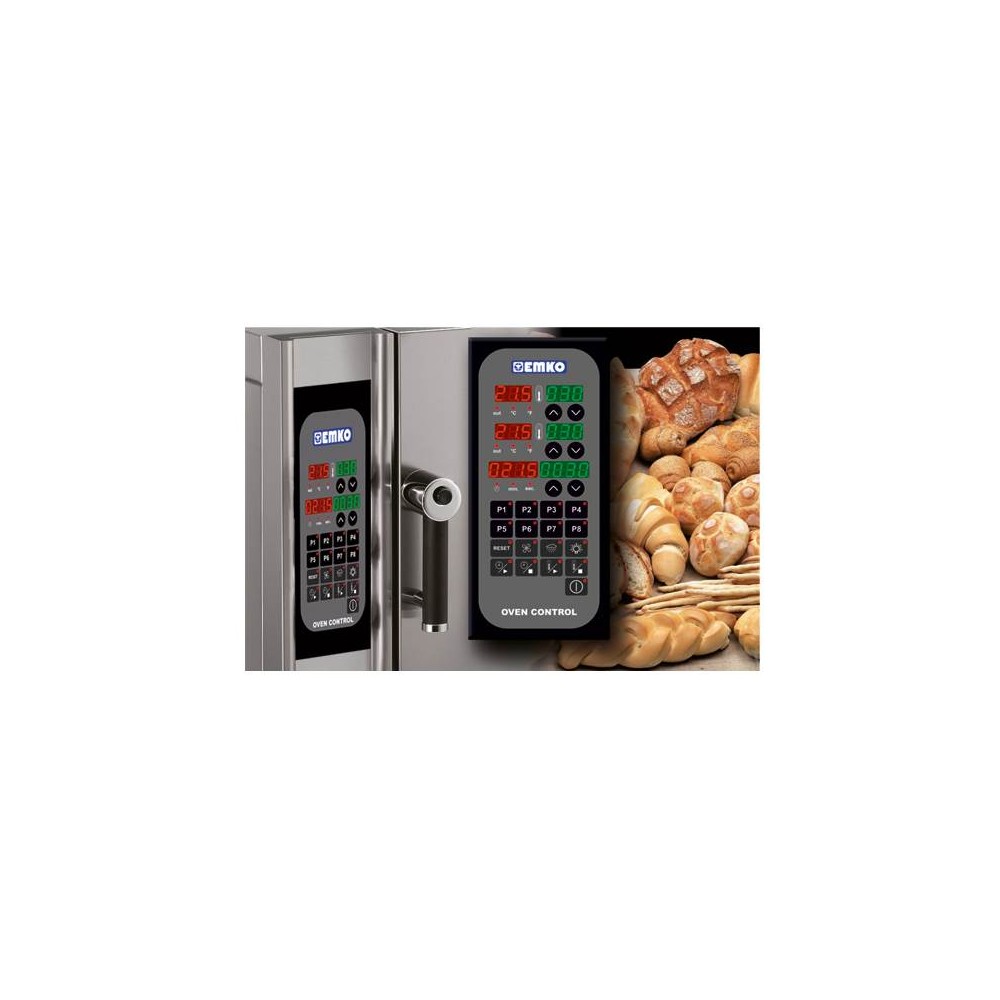

Oven Controller Single or Dual Zone
New product
Oven Controller
Oven Controller Single or Dual Zone
Oven Controller is designed to measure and control temperature for convection type ovens. It controls the cooking process for given time and set values. It offers single and dual zone control, 8 different programming options for 8 different bakery products.
| Display and Front Panel | |
| Buttons | 8 Prg, fan, steam,light, time (start/stop), cooking (start/stop) direction and power buttons |
| Led Indicators | OUT (Red), °C (Red), °F 3 mm |
| Display | 2 x 3 digit, 1 x 4 digit LED display (Green), 2 x 3 digit, 1 x 4 digit LED display (Red) |
| Body | |
| Physical Features | 300 mm x 140 mm |
| Protection Class | NEMA 4X (IP65 at front) |
| Weight | Approximately 0.8Kg. |
| Installation | Fixed Installation |
| Electrical Features | |
| Supply Voltage and Power | 230 V ~ (+%15) 50/60 Hz. 1.5 VA |
| Sensor Inputs | Thermocouple J, K (IEC584.1)(ITS90) |
| Digital Inputs | 3 inputs ( Brulor failure, door switch, spare) |
| Scale | Fe CuNi 0℃...800℃ NiCr 0℃...999℃ |
| Accuracy | ± % 1 of full scale for Thermocouple |
| Outputs | |
| Relay Outputs (Single) | 10A@250 Vac for heating control, 8 x 8A@250Vac for fan, steam, lighting, time, cooling |
| Relay Outputs (Dual) | 2x 10A@250 Vac for heating control, 8 x 8A@250Vac for fan, steam, lighting, time, cooling |
| Control | |
| Hysteresis | 1 to 100℃ for TC inputs |
| Control Form | On / Off |
| Reading Frequency | 3 readings per second |
| Quality Standarts | |
| Approvals | CE |
