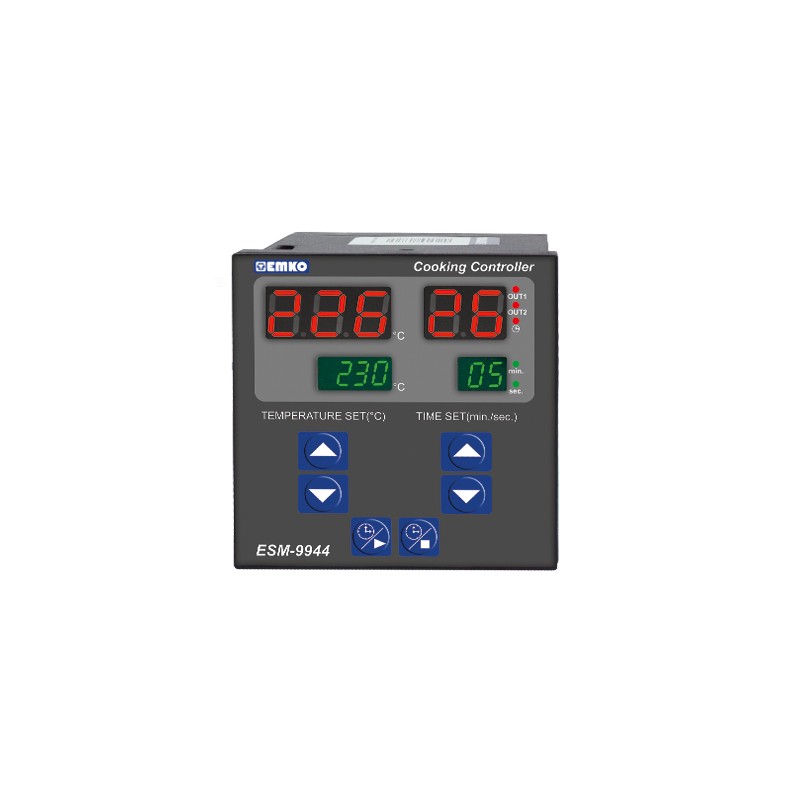

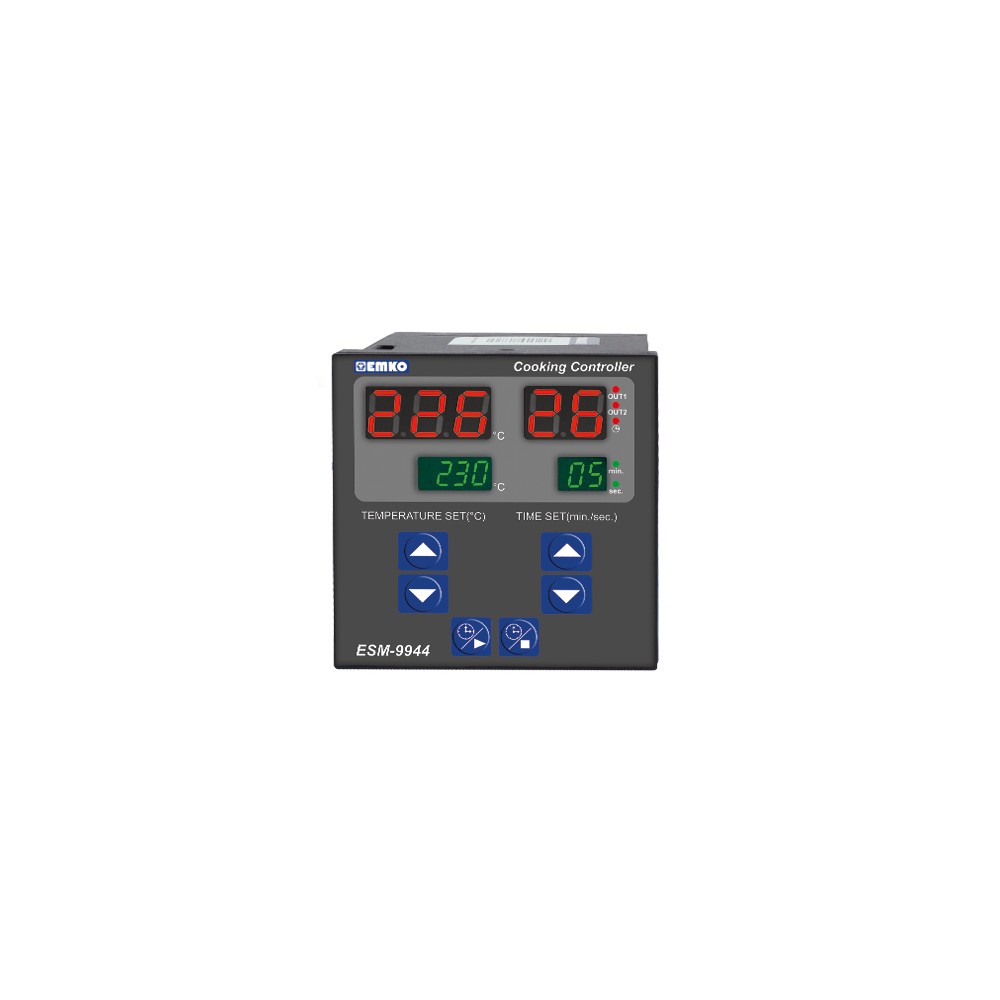

ESM-9944 Cooking Controllers (96 X 96 mm )
New product
ESM-9944
Cooking Controllers (96 X 96 mm )
APPLICATION FIELDS - Bakery Applications, - Fermentation Cabinets, - Ceramics and Glass ovens, - Grain drier cabinet, - Industrial fryer, - Incubators
| Display and Front Panel | |
| Buttons | SetP, direction and enter buttons |
| Led Indicators | SET (Green), OUT (Red), PROG (Red) 3 mm |
| Body | |
| Physical Features | 96 mm x 96 mm 96 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Weight | Approximately 0.450 Kg. |
| Installation | Fixed Installation |
| Electrical Features | |
| Supply Voltage and Power | 230 V ~ (+%15) 50/60 Hz. 1.5 VA 115 V ~ (+%15) 50/60 Hz. 1.5 VA 24 V ~ (+%15) 50/60 Hz. 1.5 VA |
| Sensor Inputs | J, K (IEC584.1)(ITS90) PT-100, PT-1000 (IEC751)(ITS90) |
| Scale | Fe CuNi 0℃...800℃ NiCr 0℃...999℃ PT 100 -50℃...400℃ |
| Accuracy | ± % 1 of full scale for Thermocouple and Thermoresistance |
| Outputs | |
| Temperature Output | 7A@250 V~ at resistive load Max. 20mA @ 12Vdc |
| Time Output | 7A@250 V~ at resistive load Max. 20mA @ 12Vdc |
| Control | |
| Hysteresis | 1 to 100℃for TC type devices, 1 to 100℃for PT-100 (-50℃, 400℃) |
| Control Form | On / Off |
| Reading Frequency | 3 readings per second |
| Quality Standarts | |
| Approvals | CE |
