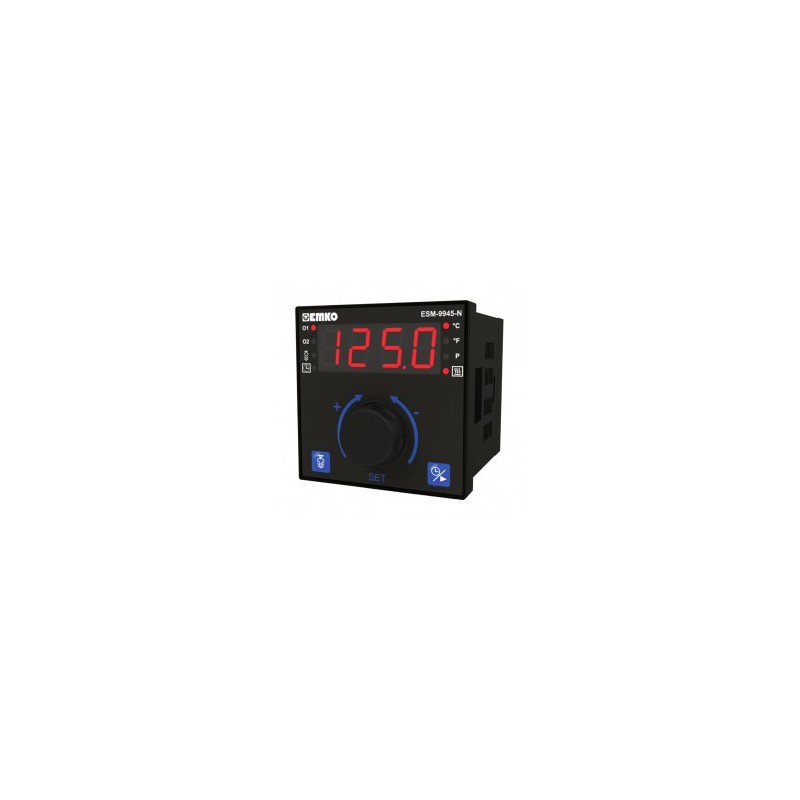

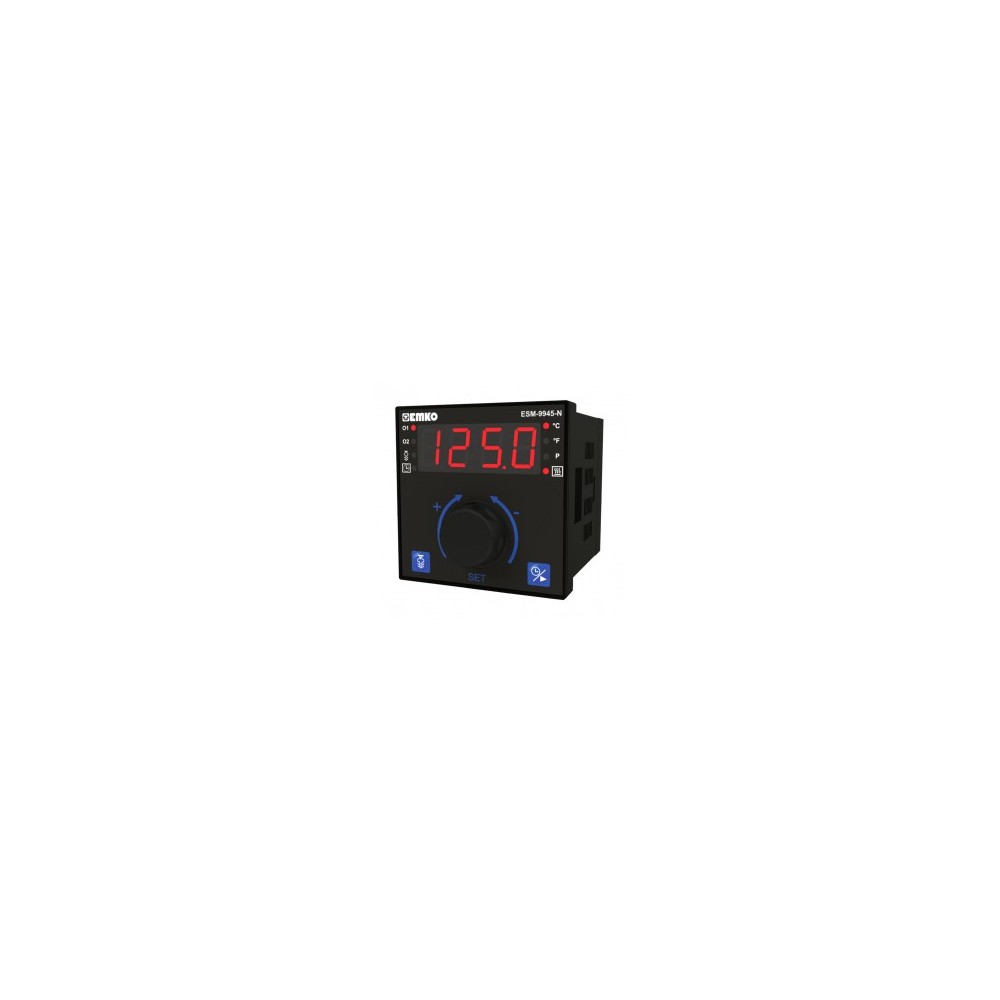

ESM-9945-N Cooking Controllers
New product
ESM-9945-N
Cooking Controllers
APPLICATION FIELDS - Bakery Applications, - Fermentation Cabinets, - Ceramics and Glass ovens, - Grain drier cabinet, - Industrial fryer, - Incubators
| Display and Front Panel | |
| Buttons | SetP, direction and enter buttons |
| Led Indicators | SET (Green), OUT (Red), PROG (Red) 3 mm |
| Display | 16mm Red 4 digits LED Display |
| Body | |
| Physical Features | 96mm x 96mm 96mm |
| Protection Class | IP65 at front,IP20 at rear |
| Weight | Approximately 0.370 Kg. |
| Installation | Fixed Installation |
| Electrical Features | |
| Supply Voltage and Power | 24 Vac (-%15)+%10) 50/60 Hz. - 3VA 115 Vac (-%15)+%10) 50/60 Hz. - 3VA 230 Vac (-%15)+%10) 50/60 Hz. - 3VA |
| Sensor Inputs | ‘‘J’’ Fe-CuNi, ‘‘K’’ NiCr-Ni, ''R'' Pt13%RhPt ''S'' Pt10%RhPt Pt-100 |
| Scale | Fe CuNi -200℃...900℃ Ni,CrNi -200℃...1300℃ Pt13%RhPt 0℃....1700℃ Pt10%RhPt 0℃.....1700℃ PT 100 -200℃...650℃ |
| Accuracy | ± % 1 of full scale for Thermocouple and Thermoresistance |
| Outputs | |
| Relay Output | Relay Output (7A @ 250Vac SSR Driver output (max 10mA @ 17Vdc) |
| Time Output | Relay Output (5A @ 250Vac at resistive load)or optinal SSR Driver output (max 10mA @ 17Vdc) |
| Steam Output | Relay Output (5A @ 250Vac at resistive load)or optinal SSR Driver output (max 10mA @ 17Vdc) |
| Control | |
| Hysteresis | 1 to 100℃for TC type devices, 1 to 100℃for PT-100 (-50℃, 400℃) |
| Control Form | ON/OFF, P, PI, PD, ve PID |
| Reading Frequency | 10 readings per second |
| Quality Standarts | |
| Approvals | AEC, CE |
