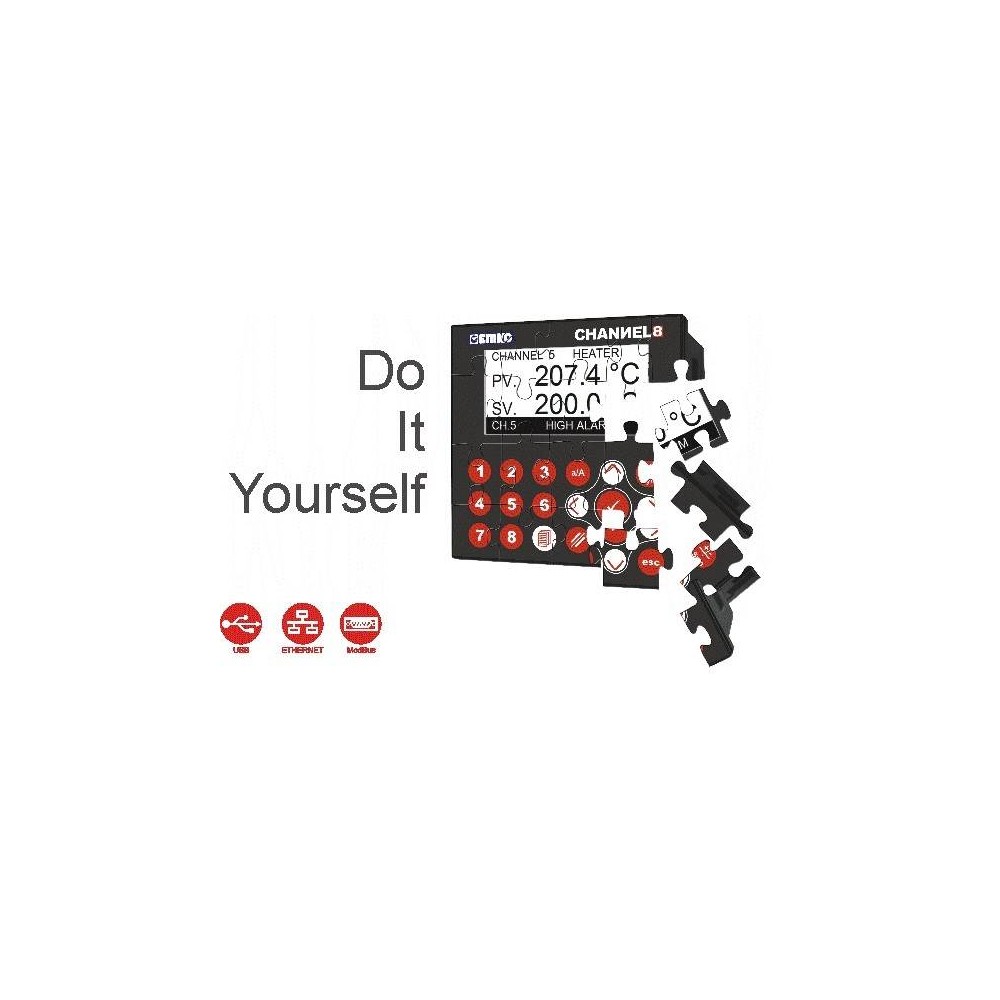

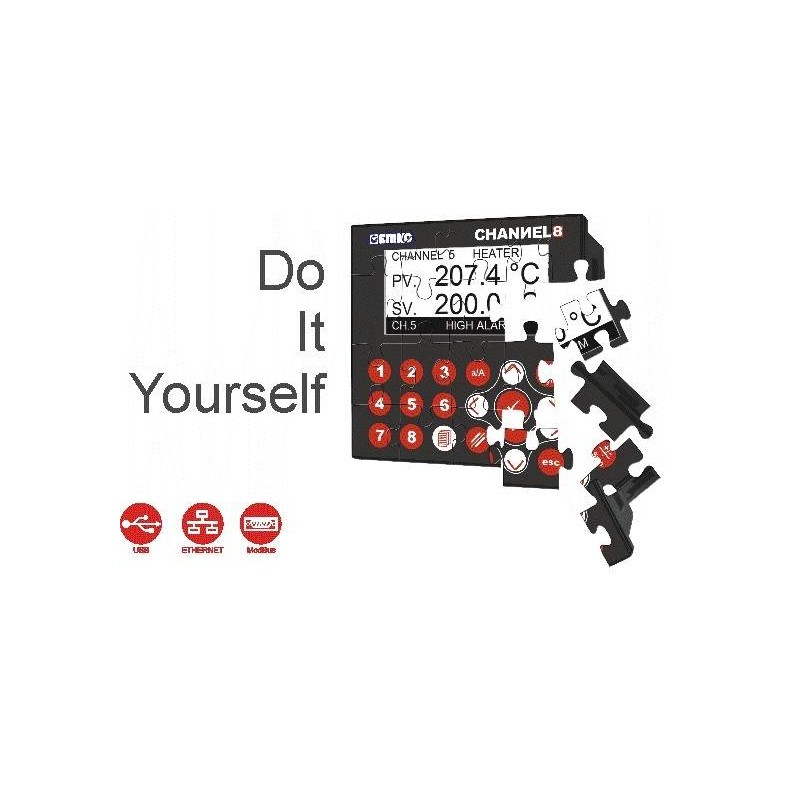

EPLC-96 Build your own device
New product
EPLC-96
Build your own device
EPLC-96 series controller offers versatile control options for a wide range of applications developed in industries such as automotive, textile, food, cooling, machinery etc...It can be customized with different type of Input and Output card options to meet the specific requirements of the application. It supports CodeSys programming platform and can be programmed in 6 different languages. RS-232, RS-485, Ethernet communication options are available as well. The USB module option enables the device record the data to a flash drive or read the data from it.
| Display and Front Panel | |
| Buttons | Function and direction buttons ( Can be defined in the program) |
| Gösterge | 128 X 64 pixel graphic LCD |
| Body | |
| Physical Features | 96 mm x 96 mm 96 mm |
| Protection Class | NEMA 4X ( IP65 at front , IP20 at rear) |
| Weight | Appx. 0,40kgs |
| Installation | Fixed installation |
| Electrical Features | |
| Supply Voltage and Power | 100 - 240 V ~ (-%15 / +%10 ) 50/60 Hz. 7 VA 24 V ~ (-%15 / +%10 ) 50/60 Hz. 7 VA 24 V DC (-%15 / +%10 ) 7 W |
| Communication | |
| Standard Communication | RS-232 (Modbus RTU) |
| Optional Communication | RS-485 (Modbus RTU) "500V ~ isolation" Ethernet (Modbus RTU Over TCP ve Modbus RTU TCP) "1500V ~isolation" USB 2.0 (Data loggin into the flash drive.) |
| Input Card Types | |
| A Type | 12 x Digital NPN/PNP Inputs, 2 x High Speed Counter Inputs |
| B Type | 9 x Digital NPN/PNP Inputs, 2 x High Speed Counter Inputs, 1 Universal Analogue Input |
| C Type | 4 x Digital NPN/PNP Inputs, 1 x High Speed Counter Input, 4 TC Inputs |
| E Type | 4 x Digital NPN/PNP Inputs, 1 x High Speed Counter Input, 4 Analogue Inputs |
| G Type | 3 x Digital NPN/PNP Inputs, 1 x High Speed Counter Input, 8 PT-100 Inputs |
| H Type | 3 x Digital NPN/PNP Inputs, 1 x High Speed Counter Input, 8 Analogue Inputs |
| Output Card Types | |
| T Type | 11 x Transistor Outputs, 2 PWM Outputs |
| U Type | 11 x Transistor Outputs, 2 PWM Outputs, 1 x 0-10Vdc or 0-20mAdc Analogue Output |
| V Type | 11 x Transistor Outputs, 2 PWM Outputs, 2 x 0-10Vdc or 0-20mAdc Analogue Outputs |
| W Type | 2x5 NO Relay Outputs (Common Connection) |
| X Type | 2x5 NO Relay Outputs (Common Connection), 1 x 0-10Vdc or 0-20mAdc Analogue Output |
| Y Type | 6 NO Relay Outputs |
| Z Type | 5 NO Relay Outputs, 1 x 0-10Vdc or 0-20mAdc Analogue Output |
| Communication Card Types | |
| RS-232 | Standard Communication Card |
| RS-485 | Optional Communication Card |
| USB | Optional Communication Card ( For data logging into the Flash drive) |
| Ethernet | Optional Communication Card |
| Ethernet + USB | Optional Communication Card |
| RS-485 + USB | Optional Communication Card |
| Control |
| Relay Outputs | 5A@250 V~ at resistive load |
| Transistor Outputs | PNP (source) type transistor output ( Max. 1A @24VDC ) |
| Quality Standards | |
| Approvals | GOST-R, CE |
