CHANNEL8AN 8 Channel Analogue Scanner
New product

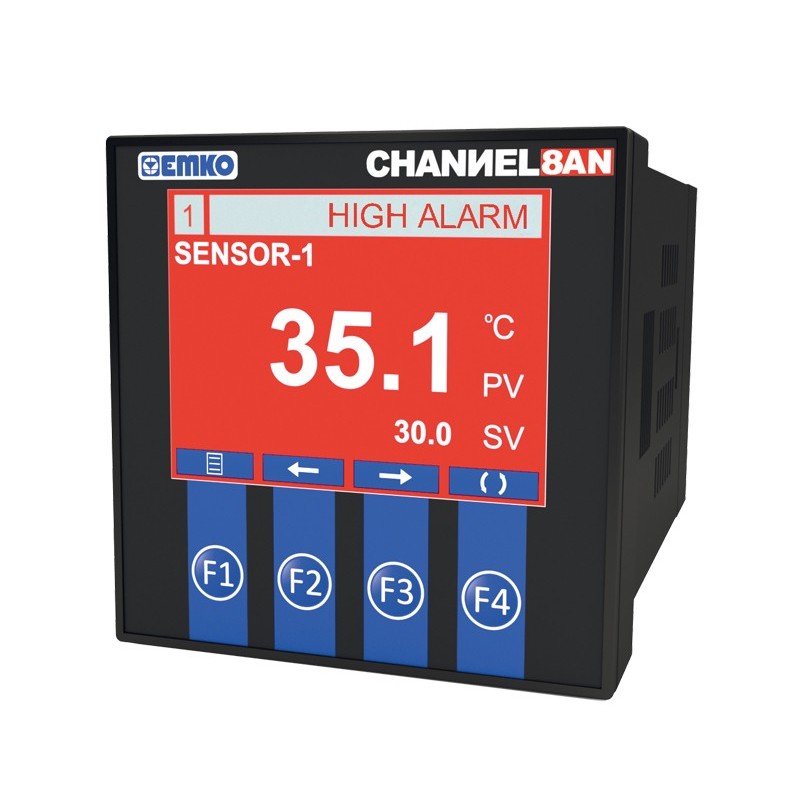

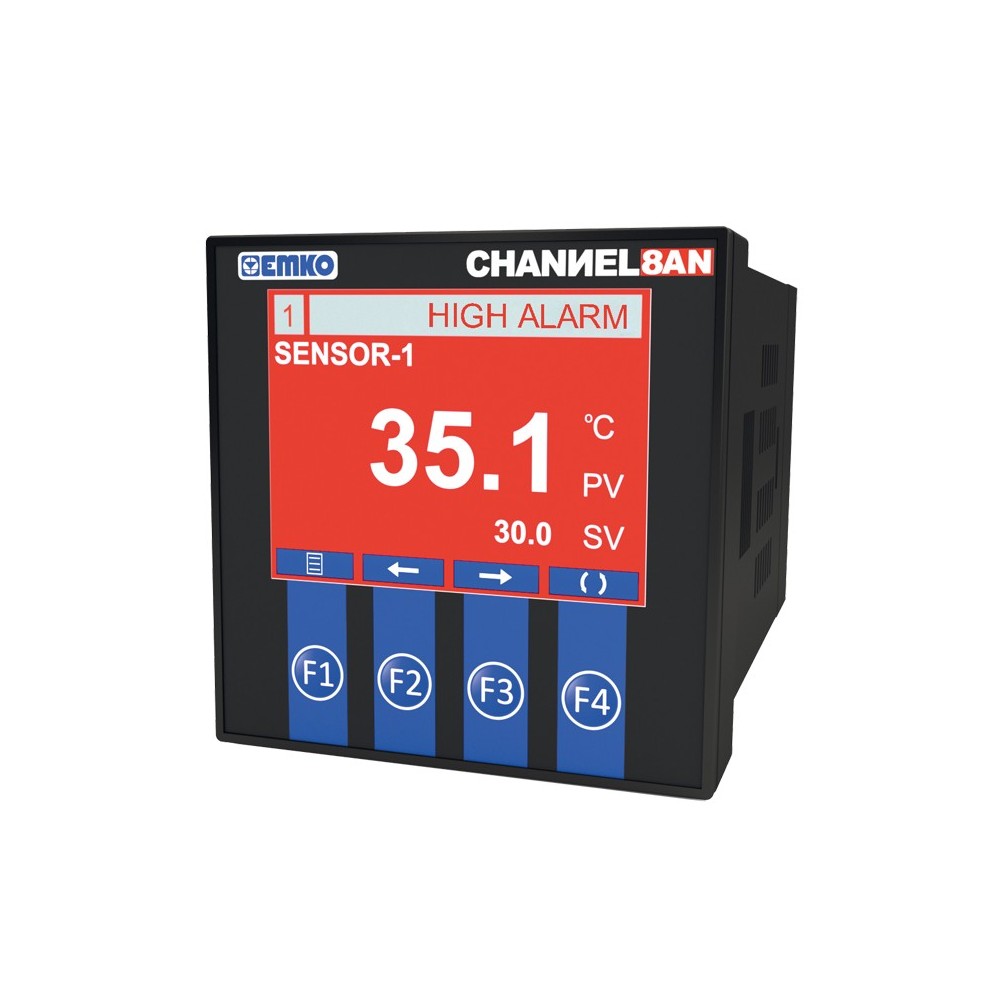

CHANNEL8AN
8 Channel Analogue Scanner
8 x Pt-100 inputs 320 x 240 Pixel TFT LCD screen 3 Different alarm and pre-alarm types for each channel (High, Low and Band Alarms) ModBus RTU communication protocol (RS-232, RS-485 and Ethernet communication) Relay or (pnp “source”) transistor output 8 Analogue inputs 8 PT-100 input wiht two wire ON-OFF control Sensor error detection Adjustable offset User defined channel labels Display scan modes Operating with Real Time Clock (RTC) Data Logging to USB Flash Memory Adjustable data logging time interval Password protection for programming mode
| Display and Front Panel | |
| Buttons | Function and direction buttons |
| Indicator | 320 x 240 Pixel TFT LCD screen |
| Body | |
| Physical Features | 96 mm x 96 mm 96 mm |
| Protection Class | NEMA 4X ( IP65 at front , IP20 at rear) |
| Weight | Appx. 0,40kgs |
| Installation | Fixed installation |
| Electrical Features | |
| Supply Voltage and Power | 100 - 240 V ~ (-%15 / +%10 ) 50/60 Hz. 7 VA 24 V ~ (-%15 / +%10 ) 50/60 Hz. 7 VA 24 V DC (-%15 / +%10 ) 7 W |
| Sensor Inputs | 0-20 mA , 4-20 mA , 0-10V DC |
| Scale | -200℃...650℃ |
| Accuracy | ± % 0,25 of full scale |
| Communication | |
| Standard Communication | RS-232 (Modbus RTU) |
| Optional Communication | RS-485 (Modbus RTU) "500V ~ isolation" Ethernet (Modbus RTU Over TCP ve Modbus RTU TCP) "1500V ~isolation" USB 2.0 (Data loggin into the flash drive.) |
| Outputs | |
| Relay Outputs | 5A@250 V~ at resistive load |
| Transistor Outputs | PNP (source) type transistor output ( Max. 1A @24VDC ) |
| Control | |
| Hysterisis | -400 ℃ to 400 ℃ for PT-100 (-200℃...650℃) |
| Control Form | On / Off |
| Reading Frequency | 400 ms |
| Quality Standards | |
| Approvals | GOST-R, CE |
