DKG-379 DC Genset Controller
New product

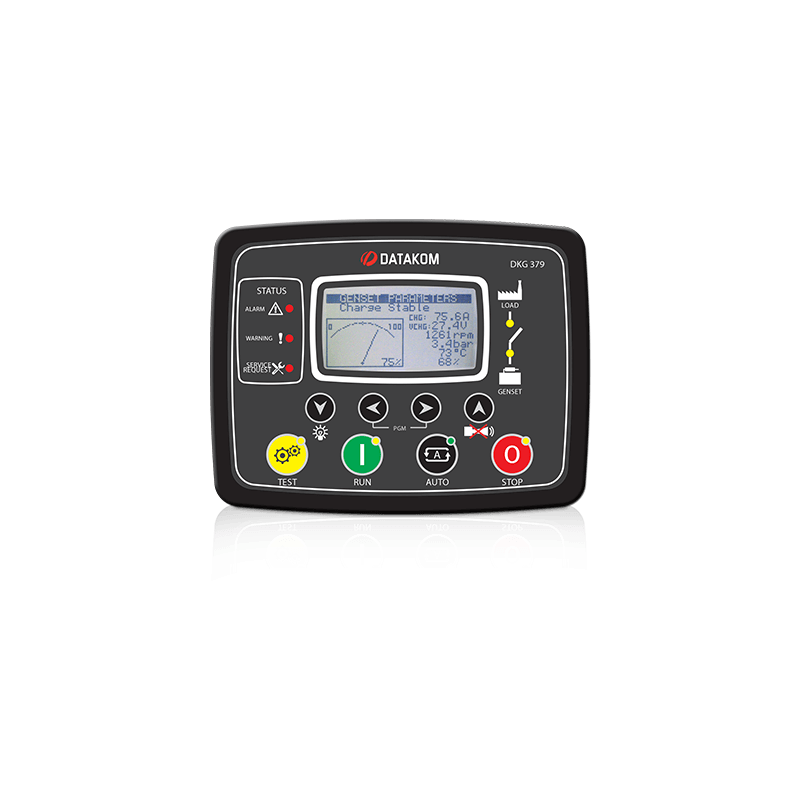

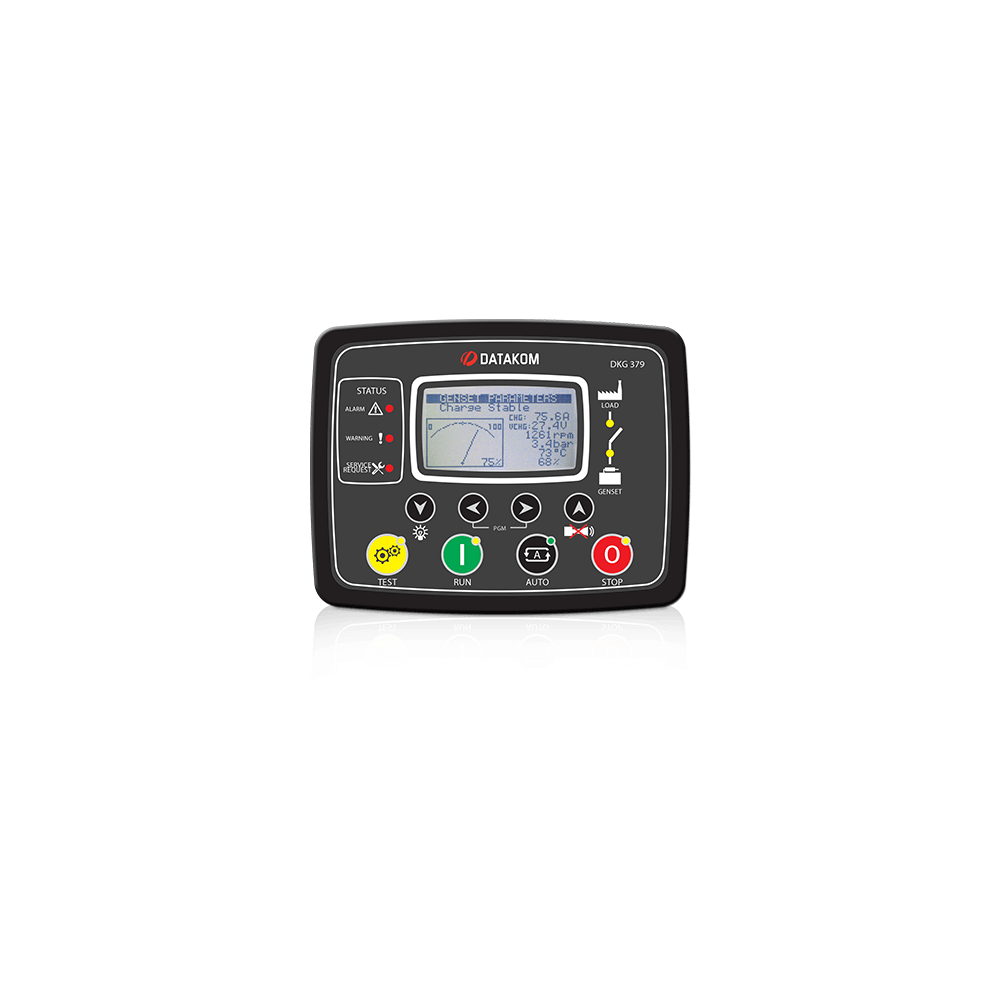

DKG-379 VARIABLE SPEED DC GENSET CONTROLLER
CANBUS AND MPU VERSIONS
The DKG-379 is an advanced DC genset controller for both variable and fixed speed systems. It is presented in 3 different versions, as ANALOG DRIVE, POWER DRIVE and CANBUS DRIVE.
The controller has a precision PID loop providing exact matching of the optimal charging characteristics, as well as overvoltage, overcurrent, overspeed, overheat protections.
|
Compatible with 12V, 24V and 48V DC systems DC power drive output (7A-DC) ECU connection through J1939 CAN option 0-10V analog control output Isolated Volt - Amp measurements Battery temperature input for PT100 sensor Optimal charging, provides longer battery life Temperature dependent battery charging Thermal protection, short circuit protection Dual genset mutual standby operation |
100 event logs with time stamp and measurements Battery backed-up real time clock Built in daily / weekly / monthly exerciser Field adjustable parameters RS-232 serial port Free MS-Windows Remote monitoring SW GSM and PSTN modem support GSM SMS message sending on fault MODBUS communications Multiple language support Customer logo display capability |
