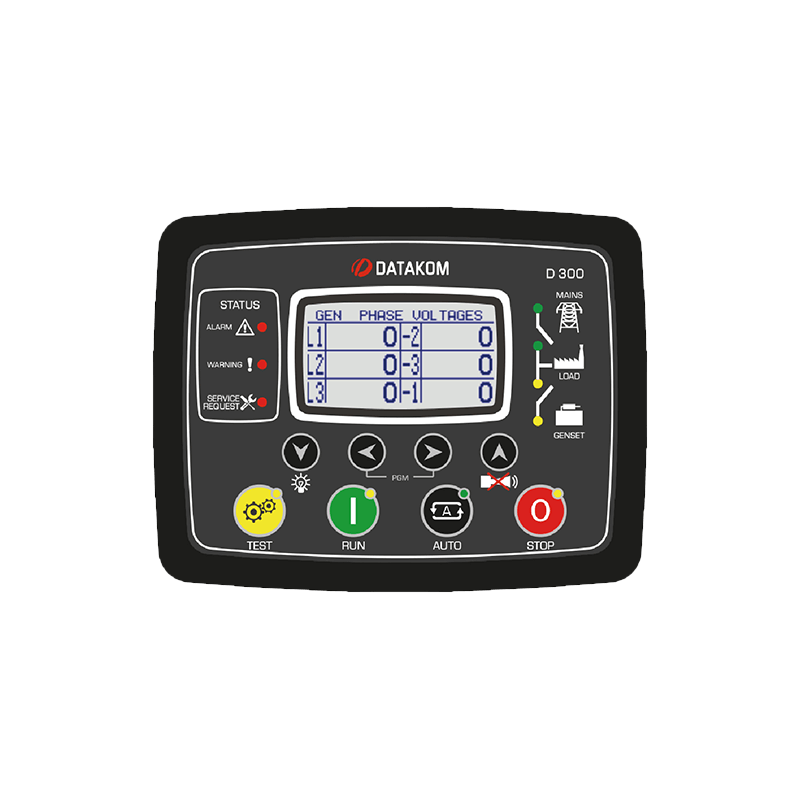

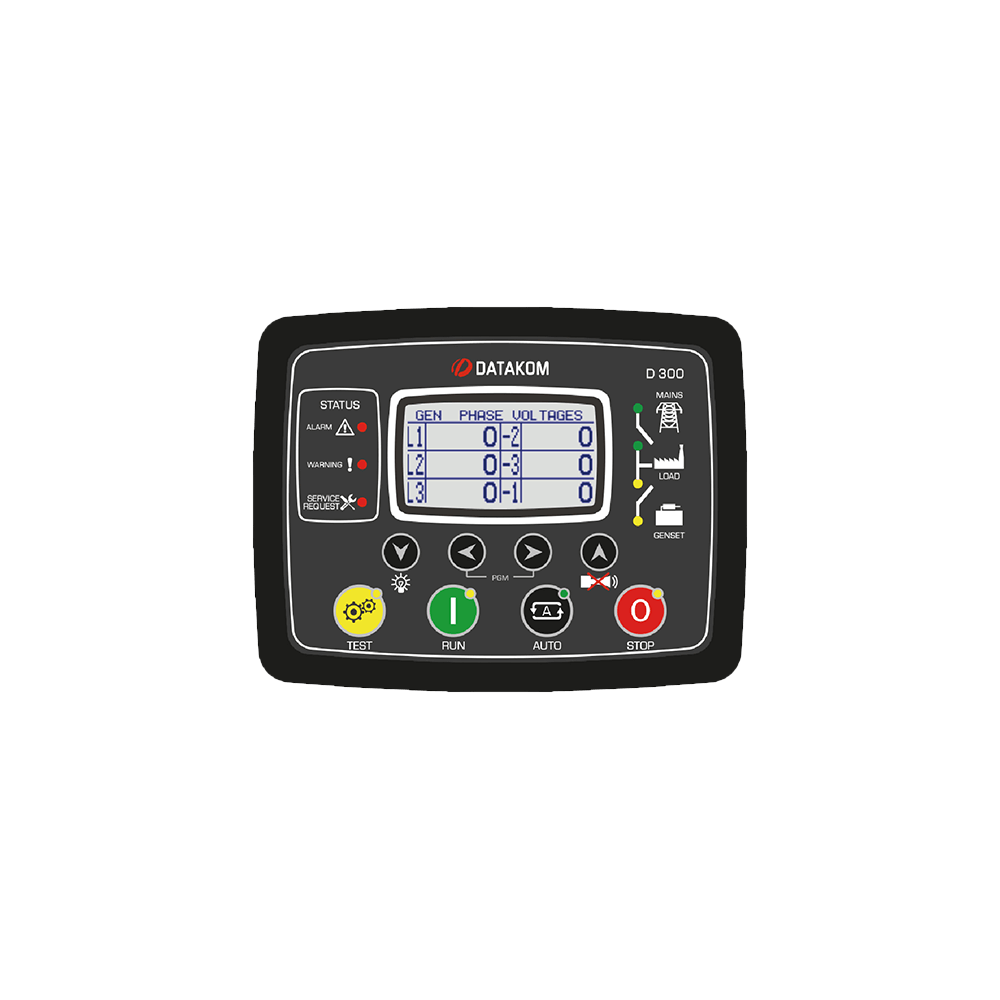

D-300 MK3 Genset Controller

• Diesel and gas genset support

• 400Hz operation support

• 400 event logs, full snapshot

• All parameters front paneleditable

• 3 level configuration password

• 128x64 graphical LCD display

• Downloadable languages

• Waveform display of V & I

• Harmonic analysis of V & I

• 16Amp MCB & GCB outputs

• 8 configurable digital inputs

• 6 configurable digital outputs

• 3 configurable analog inputs

• Both CANBUS-J1939 & MPU

• 3 configurable service alarms

• Multiple automatic exerciser

• Weekly operation schedule

• Dual mutual standby with equal aging of gensets

• Manual “speed fine adjust” onselected ECUs

• Automatic fuel pump control

• Disable protections feature

• Excess power protection

• Reverse power protection

• Overload IDMT protection

• Load shedding, dummy load

• Multiple load management

• Current unbalance protection

• Voltage unbalance protection

• Fuel filling & fuel theft alarm

• PLC functionality

• DPF regeneration functionality

• Battery back-up real time clock

• Idle speed control

• Battery charge run enabled

• Combat mode support

• Multiple nominal conditions

• Contactor & MCB drive

• 4 quadrant genset powercounters

• Mains power counters

• Fuel filling counter

• Fuel consumption counter

• Modem diagnostics display

• Configurable through USB, RS-485, Ethernet and GPRS

• Free configuration program

• Allows SMS controls

• Ready for central monitoring

• Mobile genset support

• Automatic GSM geo-location

• Easy USB firmware upgrade

• -40°C operation with optional display heater

• IP65 rating with optional gasket
