BCU 465W3P2C1D2110K2E1-/LM400WF3O0E1-88680015
New product

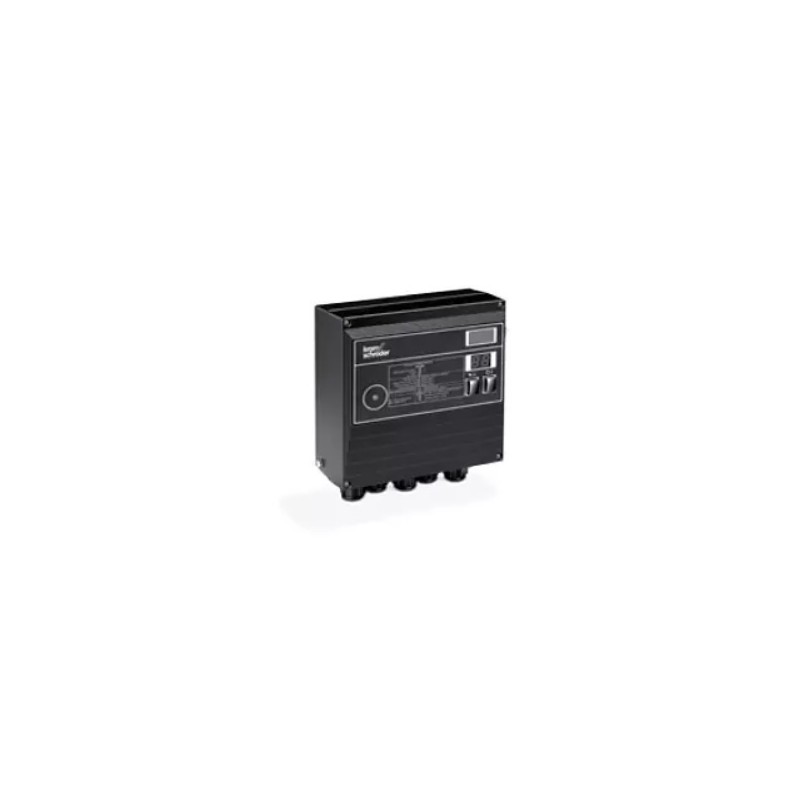

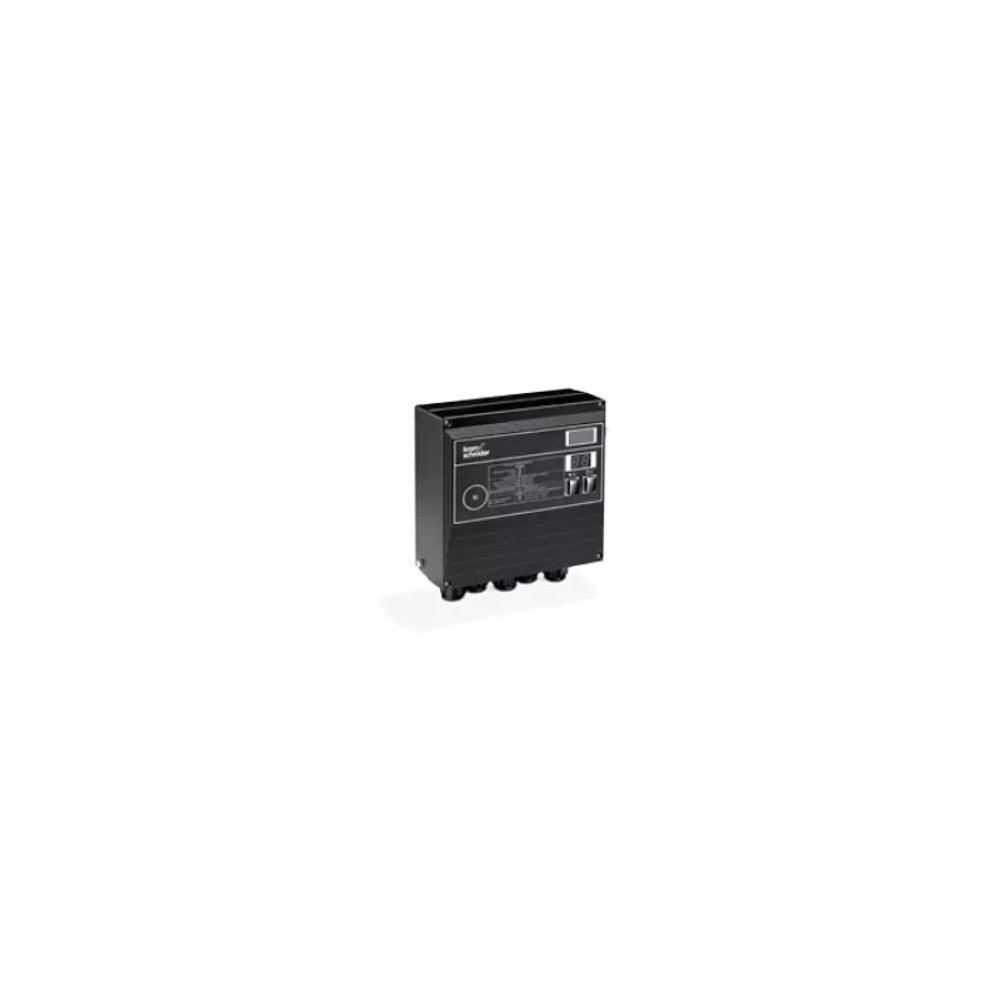

Kromschröder BCU 465W3P2C1D2110K2E1-/LM400WF3O0E1-88680015 / Burner Control Unit
Type: Burner control unit
Housing for on-site mounting, for controlling, igniting and monitoring impulse-controlled, modulating or stage-controlled gas burners. For continuous operation with ionization control or UV control using UV sensor UVD. Intermittent operation with UV sensor UVS. Display of the program status, unit parameters and flame signal. Manual operating mode. Diagnosis and adjustment of unit parameters via optical interface using PC software BCSoft. EC-type tested and certified, FM and EAC approved, certified for systems up to SIL 3 (compliant with PL e).
Series: Version for extended air control
Mains voltage: 230 V AC, 50/60 Hz
Ignition transformer: 8 kV, 12 mA, ED 100 %
Flange plate: M32
Valve proving system: TC and POC
High temperature operation: Flameless operation
Input function: Auxiliary gas
Pressure switch: Pressure switch for air
Connection plugs: With spring force terminals
Packaging: Individual packaging
Energy supply: Via L1
Power module: Power module
Series: 400
Mains voltage: 230 V AC, 50/60 Hz
Air actuator: With air valve control
Optional output: None
Energy supply: Via L1
