BCU 460W8P1C0D0000K1E1-/LM400WF3O0E1-88680125
New product

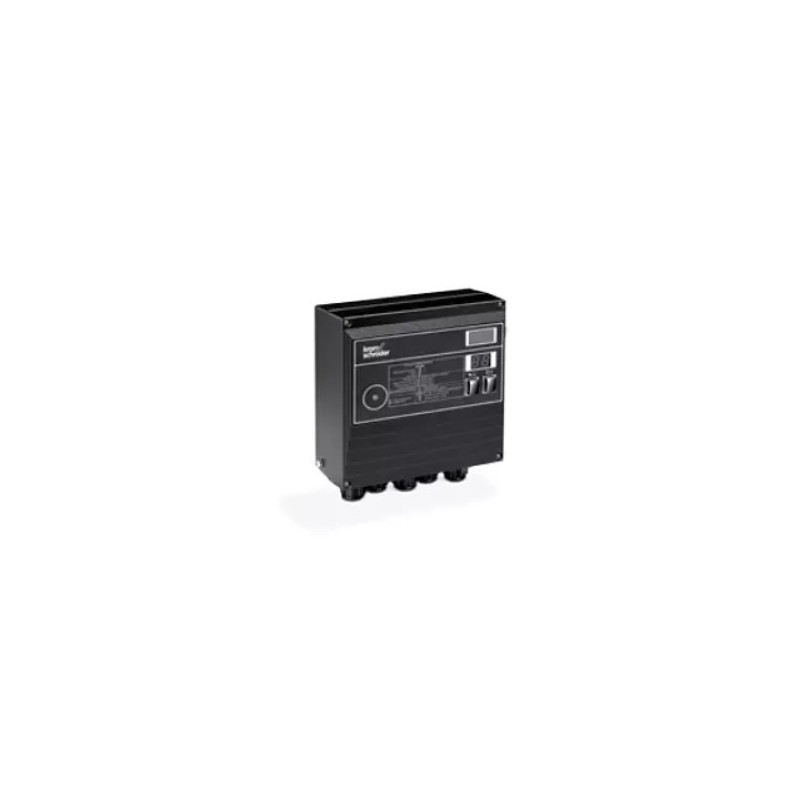

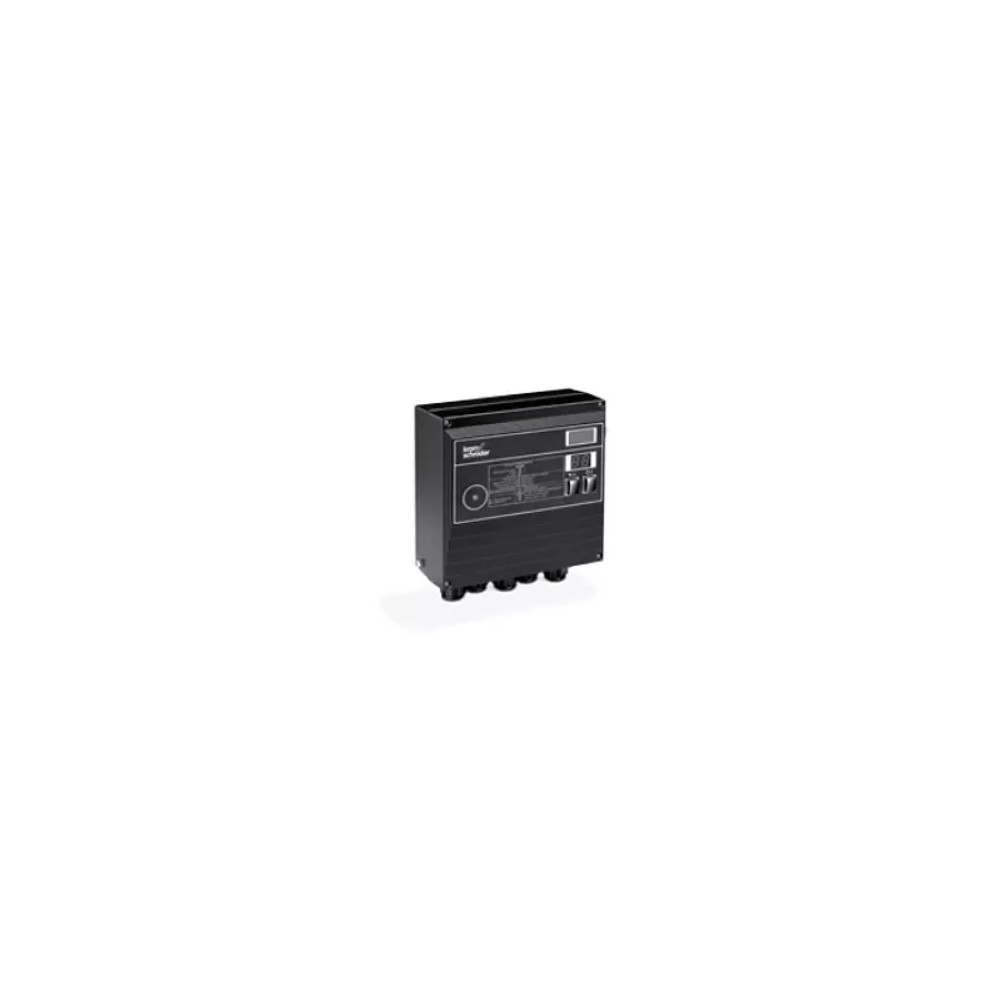

Kromschröder BCU 460W8P1C0D0000K1E1-/LM400WF3O0E1-88680125 / Burner Control Unit
Type: Burner control unit
Housing for on-site mounting, for controlling, igniting and monitoring impulse-controlled, modulating or stage-controlled gas burners. For continuous operation with ionization control or UV control using UV sensor UVD. Intermittent operation with UV sensor UVS. Display of the program status, unit parameters and flame signal. Manual operating mode. Diagnosis and adjustment of unit parameters via optical interface using PC software BCSoft. EC-type tested and certified, FM and EAC approved, certified for systems up to SIL 3 (compliant with PL e).
Series: Standard version
Mains voltage: 230 V AC, 50/60 Hz
Ignition transformer: 8 kV, 20 mA, ED 33 %
Flange plate: Standard
Valve proving system: None
High temperature operation: None
Input function: None
Pressure switch: None
Connection plugs: With screw terminals
Packaging: Individual packaging
Energy supply: Via L1
Power module: Power module
Series: 400
Mains voltage: 230 V AC, 50/60 Hz
Air actuator: With air valve control
Optional output: None
Energy supply: Via L1
