BCU 570WC1F1U0K1-E-88660010

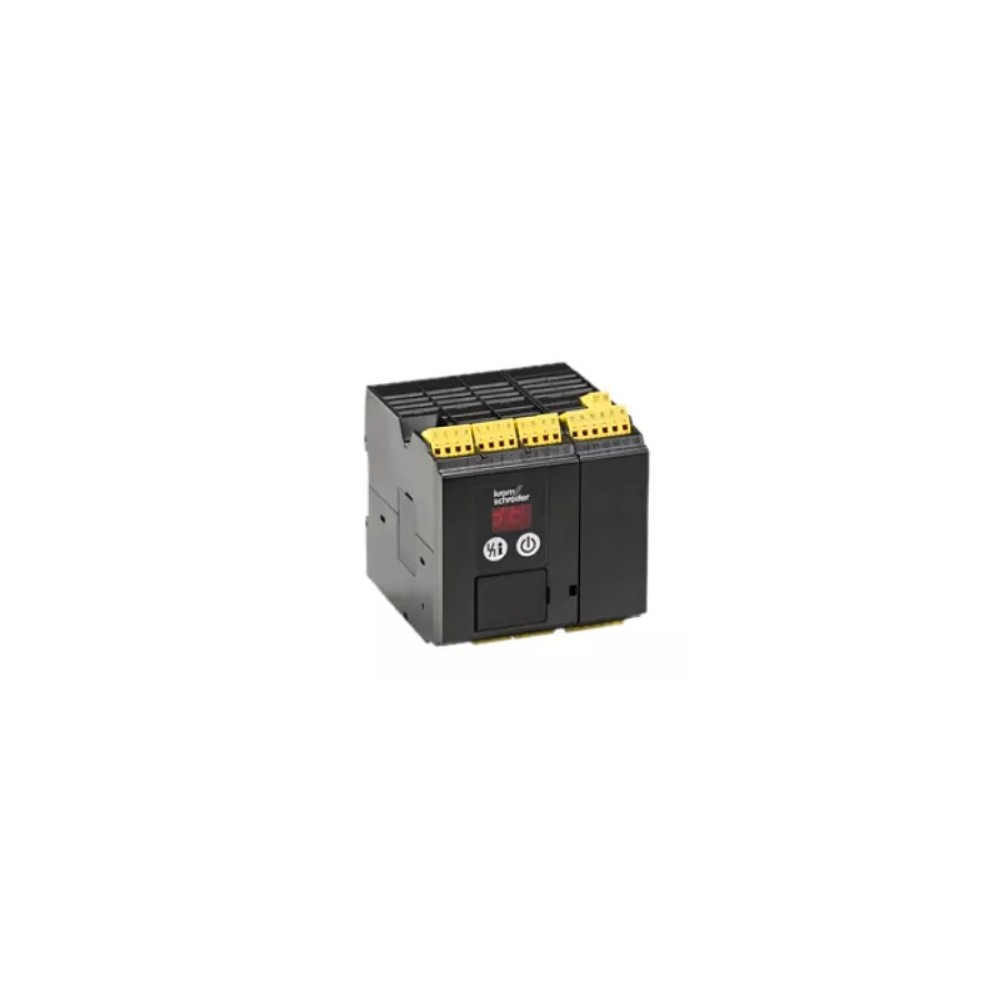

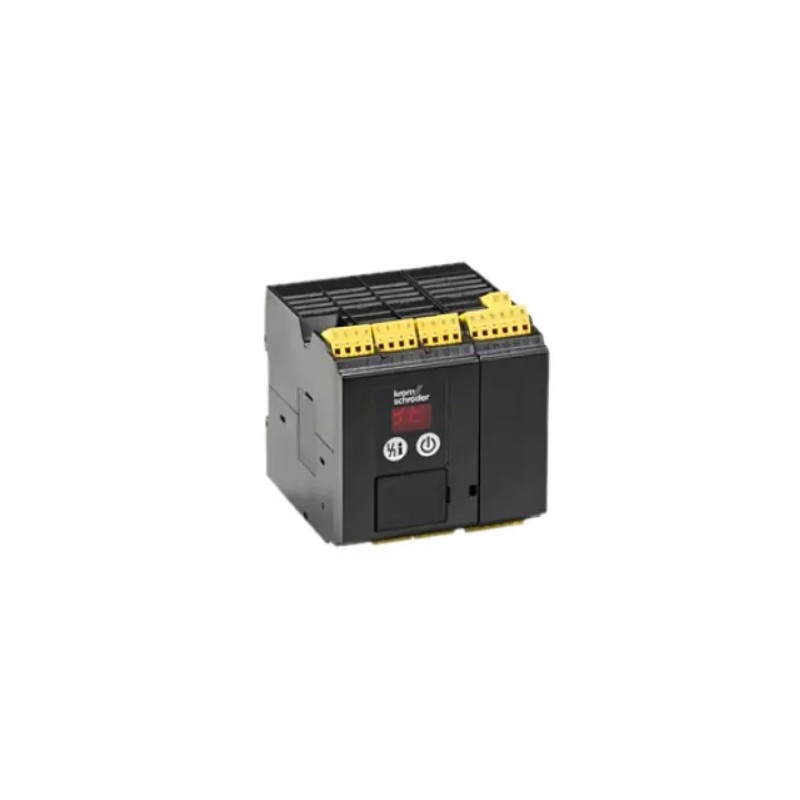

Kromschröder BCU 570WC1F1U0K1-E-88660010 / Burner Control Unit

Type: Burner control unit

Housing for control cabinet installation, for controlling, igniting and monitoring modulating forced draught burners. For continuous operation with ionization control or UV control using UV sensor UVD. Intermittent operation with UV sensor UVS. Display of the program status, unit parameters and flame signal. Manual operating mode. Diagnosis and adjustment of unit parameters via optical interface using PC software BCSoft.

Series: 570

Market: EU certified, certified for systems up to SIL 3 (compliant with PL e)

Mains voltage: 230 V~, 50/60 Hz

Valve proving system: Yes

Capacity control: Modulating capacity control with interface for actuator IC

Flame control: With ionization or UV signal

Electrical connection: Screw connection terminals

Individual packaging: Yes
