BCU 570QC1F2U0K2-E-88660311

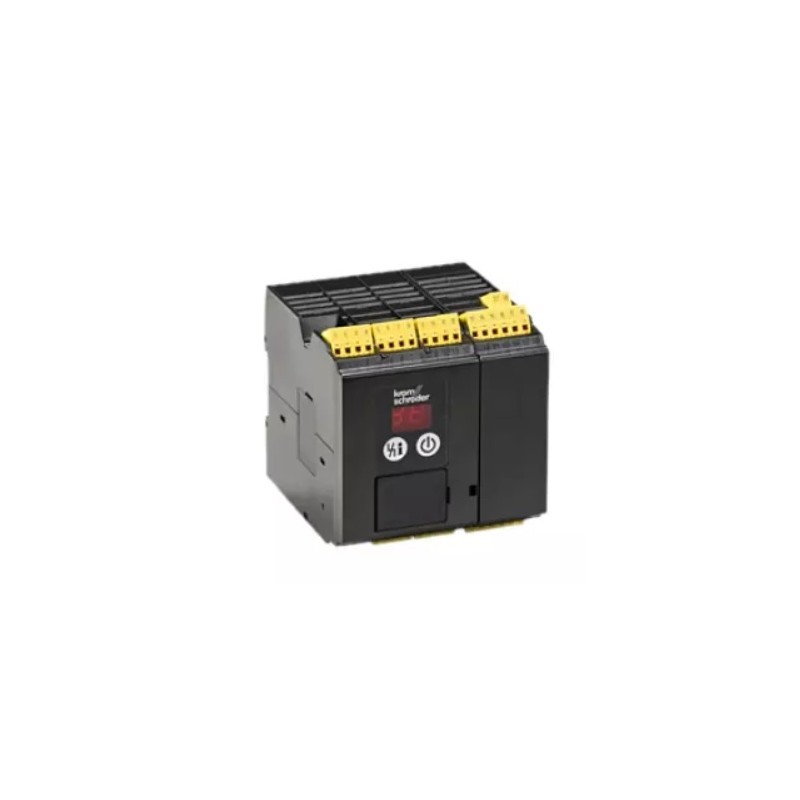

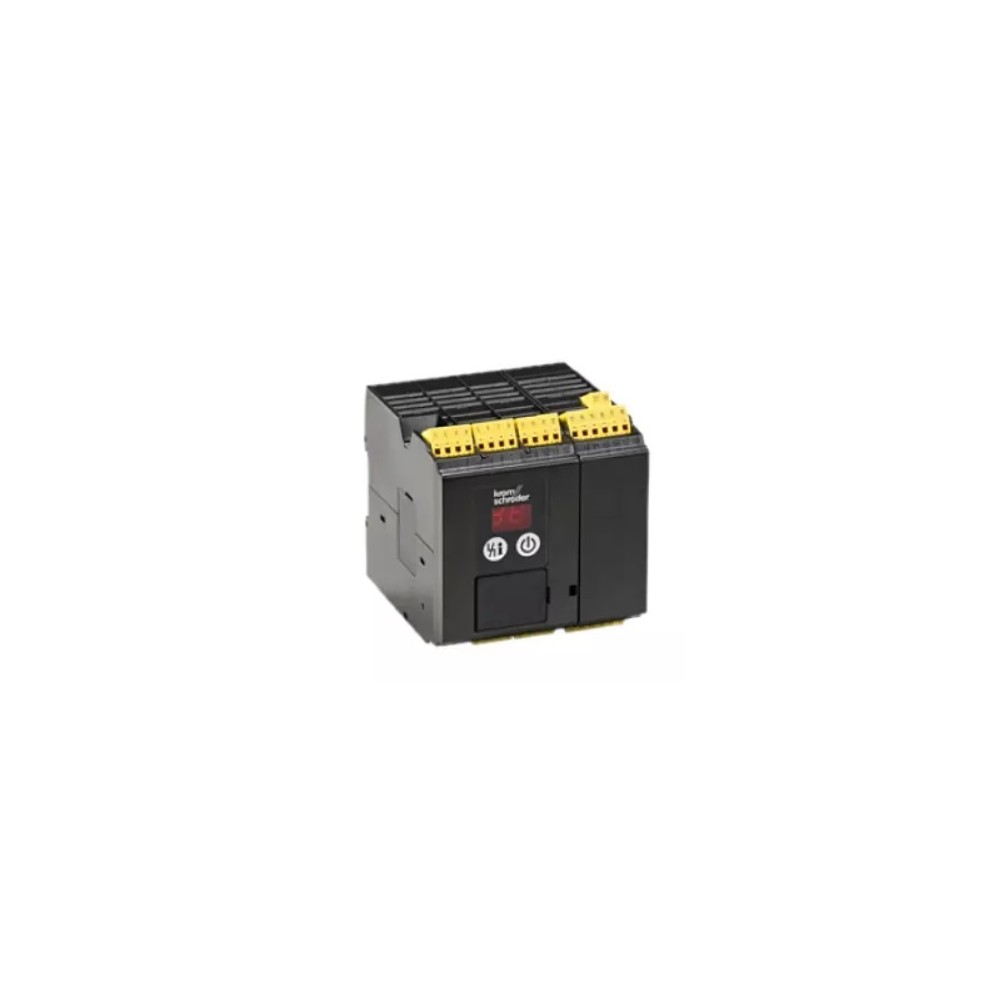

Kromschröder BCU 570QC1F2U0K2-E-88660311 / Burner Control Unit

Type: Burner control unit

Housing for control cabinet installation, for controlling, igniting and monitoring modulating forced draught burners. For continuous operation with ionization control or UV control using UV sensor UVD. Intermittent operation with UV sensor UVS. Display of the program status, unit parameters and flame signal. Manual operating mode. Diagnosis and adjustment of unit parameters via optical interface using PC software BCSoft.

Series: 570

Market: EU certified, CSA and FM approved, certified for systems up to SIL 3 (compliant with PL e)

Mains voltage: 120 V~, 50/60 Hz

Valve proving system: Yes

Capacity control: Modulating capacity control with interface for RBW

Flame control: With ionization or UV signal

Electrical connection: Spring force connection terminals

Individual packaging: Yes
