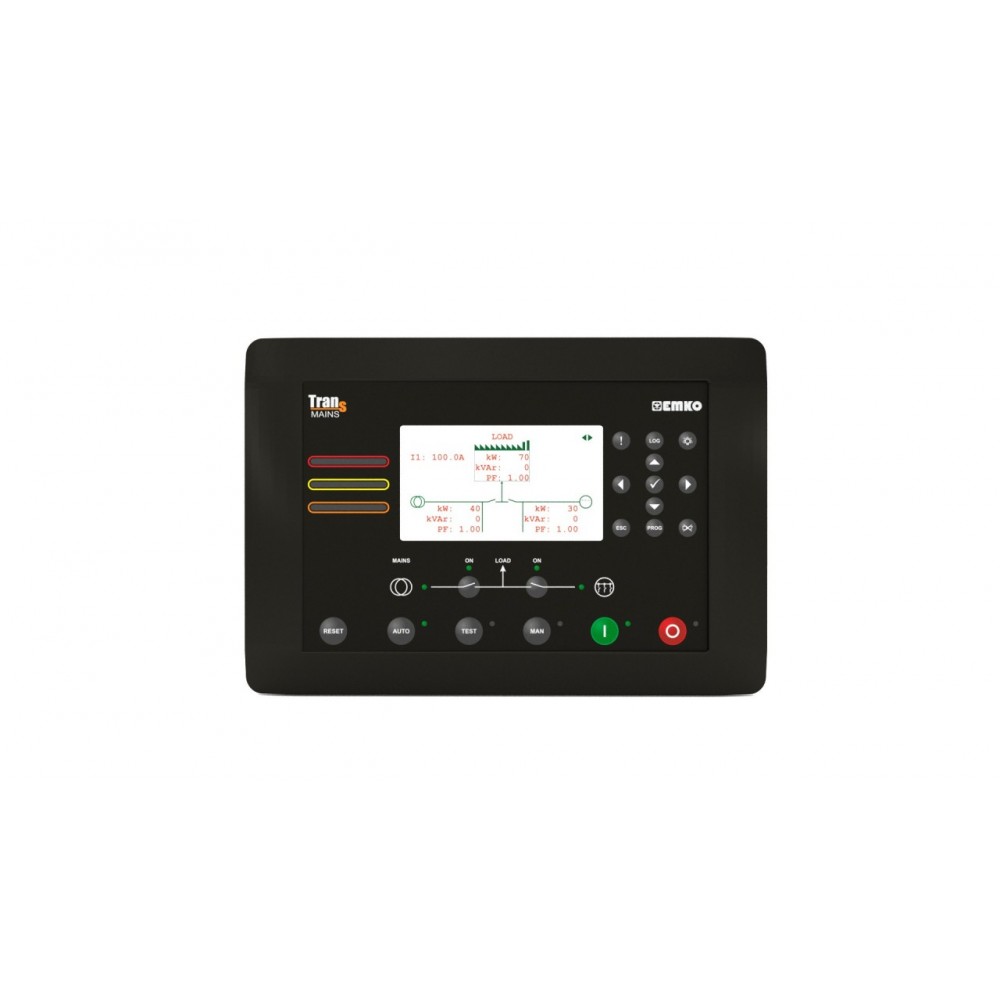

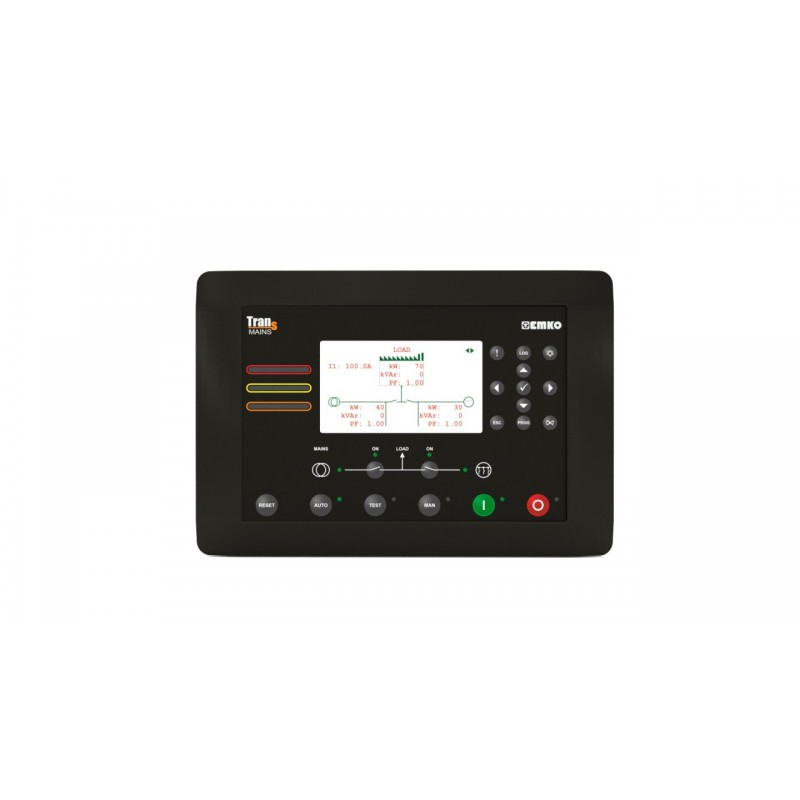

TRANS MAINS Automatic Transfer & Load Share Unit With Mains

Condition: New product

More info

TRANS MAINSAutomatic Transfer & Load Share Unit With MainsLoad sharing with genset (up to 32 gensets)
Busbar voltages and frequency measurements
Bus failure detection
Peak lopping (mains or genset)
Power export to mains
Mains de-coupling protection with R.O.C.O.F and vector shift methods
Logic Controller functionality for PLC

Features	Descriptions
LCD Languages	English, Turkish
Inputs	13x Configurable digital
Outputs	Configurable 9x Transistors, GBR outputs
Current Measurement	3 phase mains, 3 phase generator 3-300 Vac Phase-Neutral, 5-99.9 Hz. Accuracy: scale %1 Resolution: 1V, Harmonic: up to 11 harmonics
Voltage Measurement	3 phase mains, 3 phase busbar 3-300 Vac Phase-Neutral, 5-99.9 Hz. Accuracy: scale %1 Resolution: 1V, Harmonic: up to 11 harmonics
Case
Dimensions	276 mm x 189 mm x 45 mm.
Protection Class	IP65 at front side
Operating Range
DC Battery Supply range	8 to 32Vdc, max.operating current is 860mA
Sender Measurement	0 to 1300 ohm, accuracy: 1%FS, resolution: 1 ohm
Cabin.Temp.Measuremet
Operating / Storage Temp.	-20°C with +70°C / -40°C with +80°C
Expansions
Internal	USB programming and communication port, CanOpen multi communication, Ethernet, RS485
GPRS	Optional
Embedded WEB server	Optional
Serial ModBus
Approvals	CE, GOST-R
