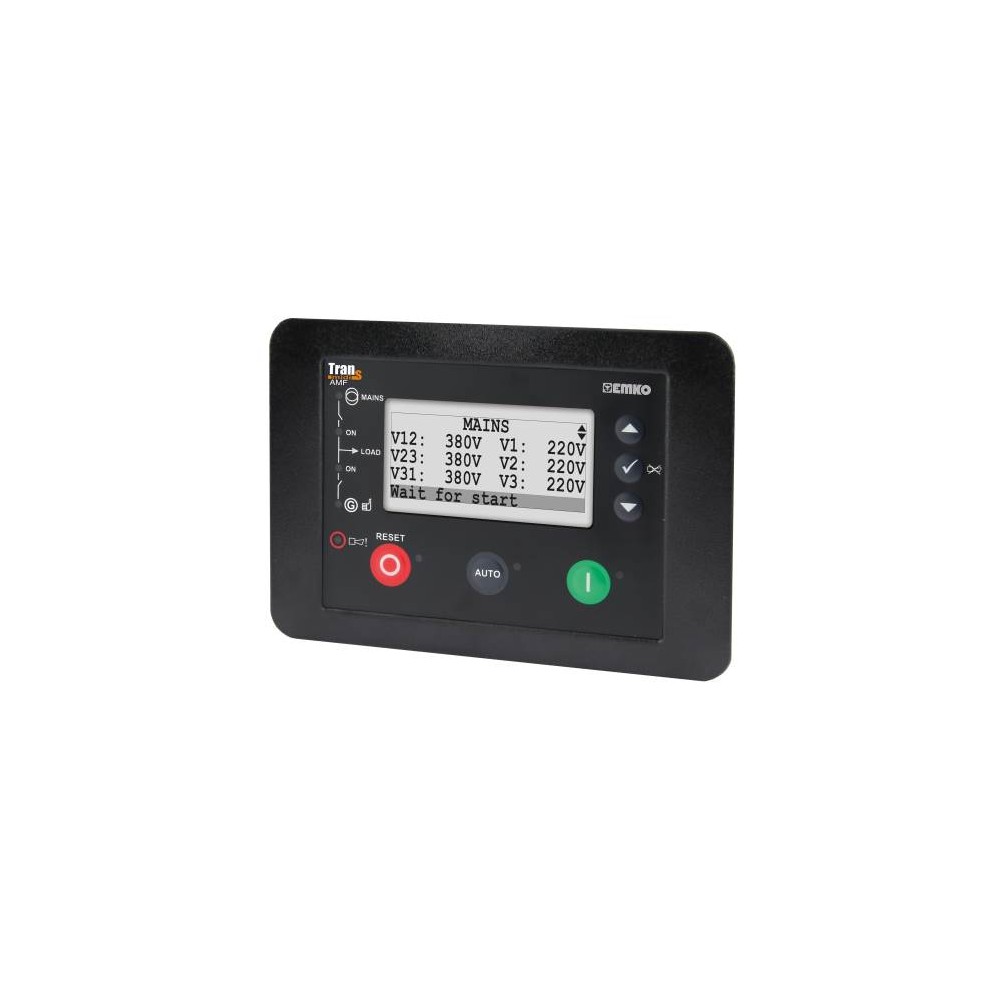

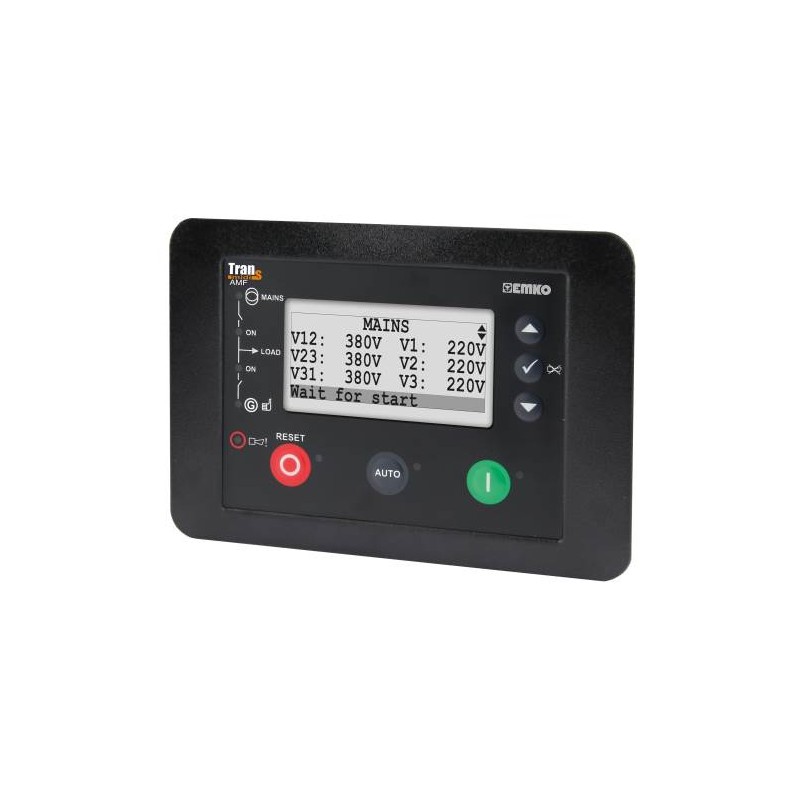

Trans-Midi AMF Automatic GenSet Controller with Transfer Switching

Condition: New product

More info

Trans-Midi AMFAutomatic GenSet Controller with Transfer SwitchingLog last 50 events & alarm information wiht measured values
Statistics records
Mains & Generator phase sequence control
Selectable Resistive sender types; Pt-100 VDO, US, GM, Ford, Datcon, etc...
CanBus J1939 ECU communication
SPN, FMI and OC values reading from engines via J1939
Remote Start/Stop Speed and Idle mode Control via J1939
Local Remote Control and Visualisation function

Features	Descriptions
LCD Languages	English/Chinese, English/Deutch, English/Turkish, English/Espanol, English/Francais, English/Russian
Inputs	5x Configurable digital, 3x Analogue senders, Magnetic Pickup
Outputs	6x Configurable transistor, Mains and Generator Contactor Outputs
Current Measurement	3 phases CT inputs
Voltage Measurement	3 phase mains, 3 phase generator
Case
Dimensions	158mm x 111mm x 67mm
Protection Class	NEMA 4X IP65 at front side
Operating Range
DC Battery Supply range	8 to 32Vdc, max.operating current is 370mA
Sender Measurement	0 ... 1300 ohm, Accuracy: 1%FS, resolution: 1 ohm
Cabin.Temp.Measuremet
Operating / Storage Temp.	-20°C ... +70°C / -30°C ... +80°C
Expansions
Internal
GPRS	with Trans-Messenger.GP module
Embedded WEB server
Serial ModBus
Approvals	CE
