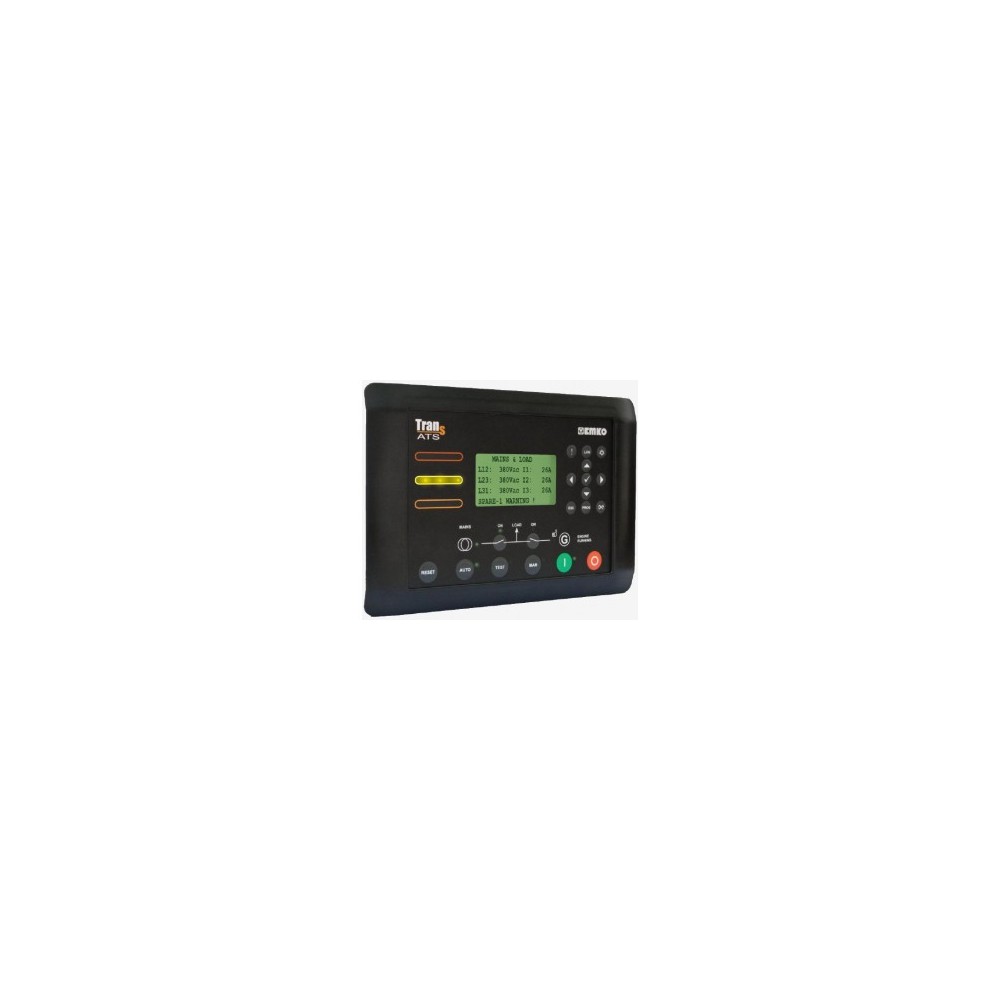

Trans-ATS Automatic Transfer Switching Controllers

Condition: New product

More info

Trans-ATSAutomatic Transfer Switching ControllersAuthorised access, secure communication
Selectable second language
Log last 50 events & alarm information with measured values
Statistics records
Mains and Generator phase sequence control
Power factor measurement for 3 phases
Active, Reactive, Apparent power measurement

Features	Descriptions
LCD Languages	English/Chinese, English/Turkish, English/Francais
Inputs	6x Configurable digital input
Outputs	Configurable 2x Relays, 2x Transistors, 1x Remote Start output MBR and GBR outputs
Current Measurement	3 phases CT inputs for Load Current, 1x CT input for Earth Current
Voltage Measurement	3 phases for Mains, 3 phases for Alternator
Case
Dimensions	229mm x 152mm x 41mm
Protection Class	NEMA 4X IP65 at front side
Operating Range
DC Battery Supply range	8 to 32Vdc, max.operating current is 360mA
Sender Measurement
Cabin.Temp.Measuremet
Operating / Storage Temp.	-20°C ... +70°C / -30°C ... +80°C
Expansions
Internal
GPRS	with Trans-Messenger.GP module
Embedded WEB server	with Trans-WEB-AMF module or with Trans-WEB.GP module
Serial ModBus	with Trans-Messenger.485 module
Approvals	CE, GOST-R
