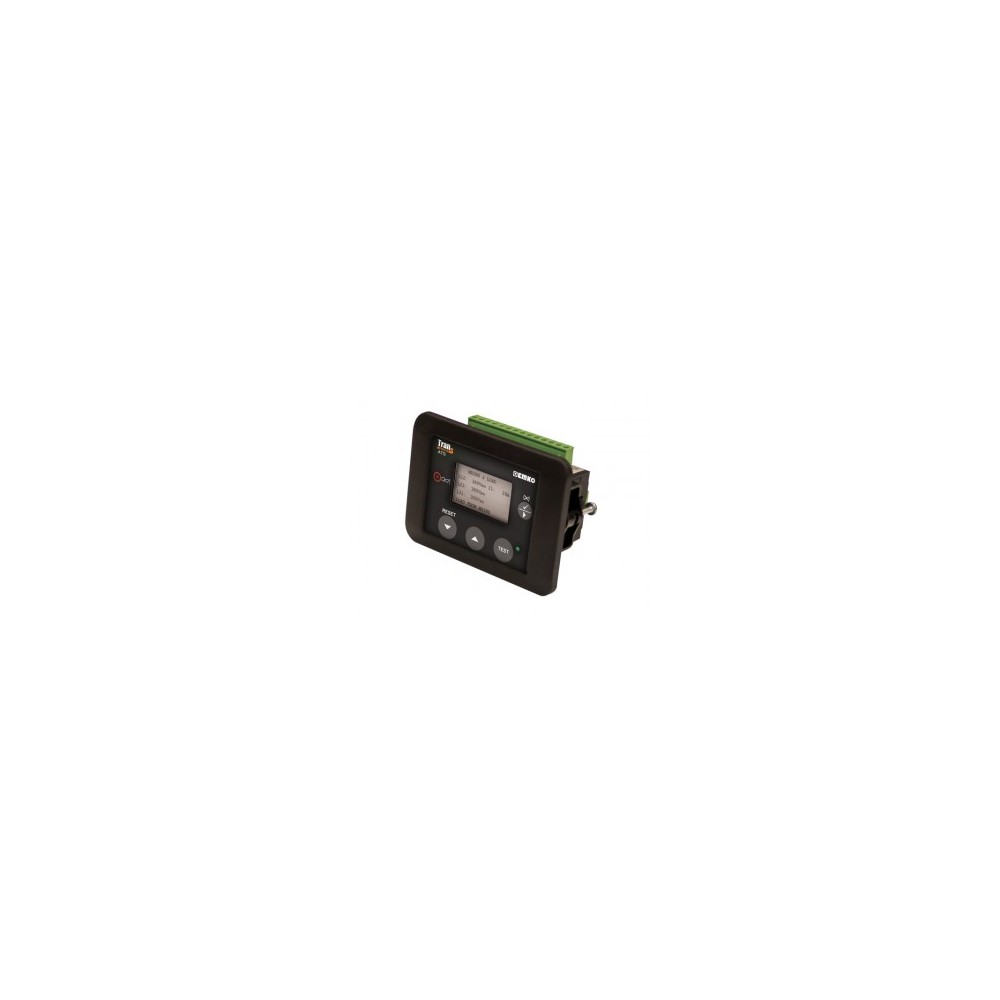

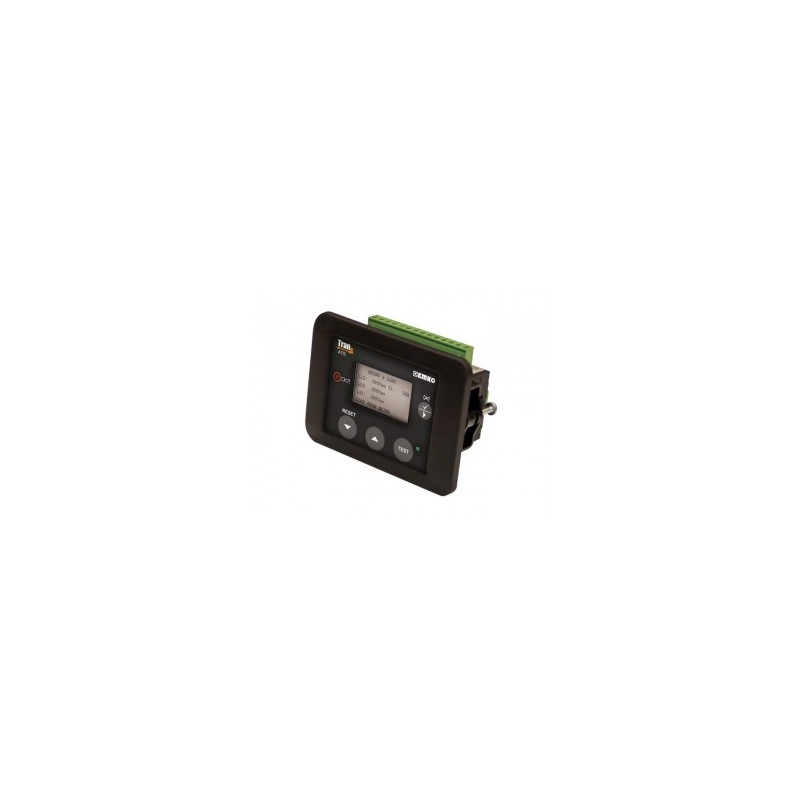

Trans-MiniATS Automatic Transfer Switching Controllers

Condition: New product

More info

Trans-MiniATSAutomatic Transfer Switching ControllersParameter configuration via RS-232 serial communication
Log last 50 events & alarm information with measured values
Statistics records
Remote Start/Stop output
Mains voltage failure detection
Emergency backup and Test mode

Features	Descriptions
LCD Languages	English/Chinese, English/Turkish, English/Francais
Inputs	6x Configurable digital,
Outputs	Configurable 5x Transistors
Current Measurement
Voltage Measurement	3 phases for mains , 1 phases for Alternator
Case
Dimensions	111mm x 81mm x 61mm
Protection Class	NEMA 4X IP65 at front side
Operating Range
DC Battery Supply range	8 to 32Vdc, max.operating current is 360mA
Sender Measurement
Cabin.Temp.Measuremet
Operating / Storage Temp.	-20°C ... +70°C / -30°C ... +80°C
Expansions
Internal	Parameter configuration via RS-232 serial communication
GPRS
Embedded WEB server
Serial ModBus
Approvals	CE, GOST-R
