New

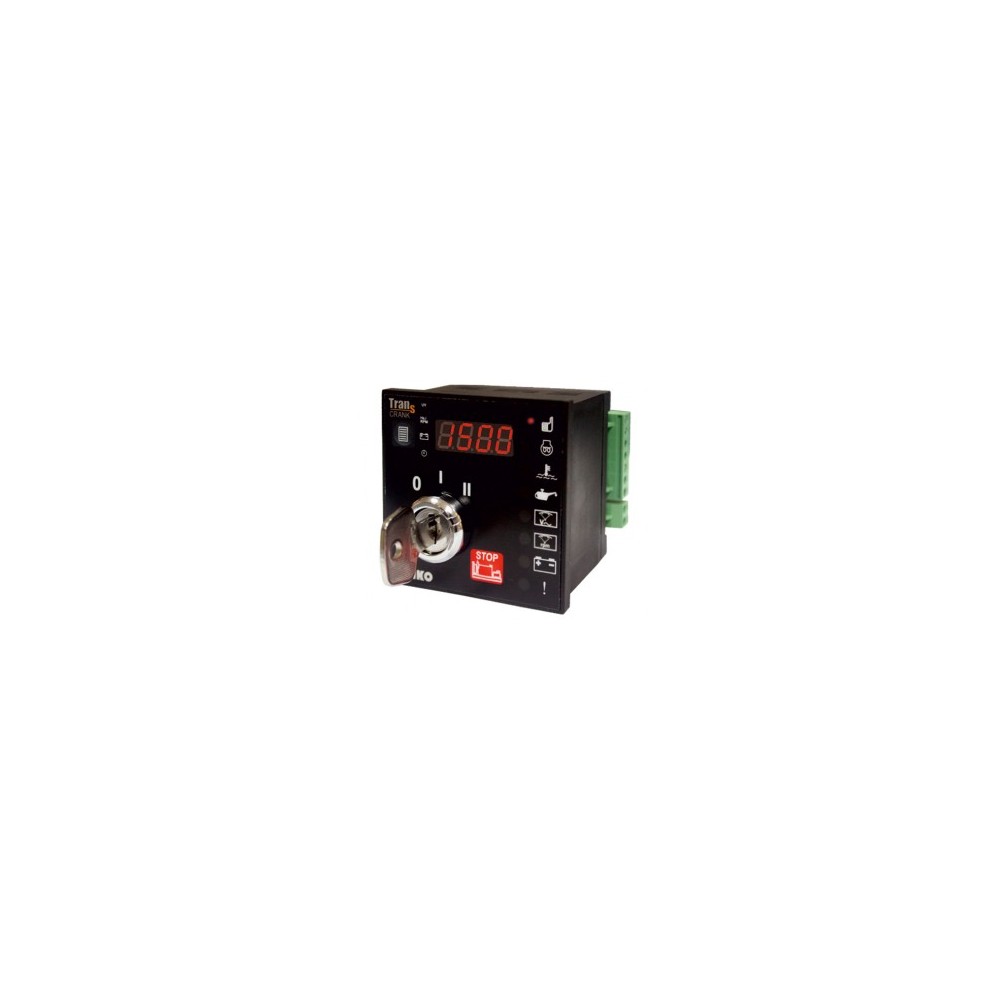

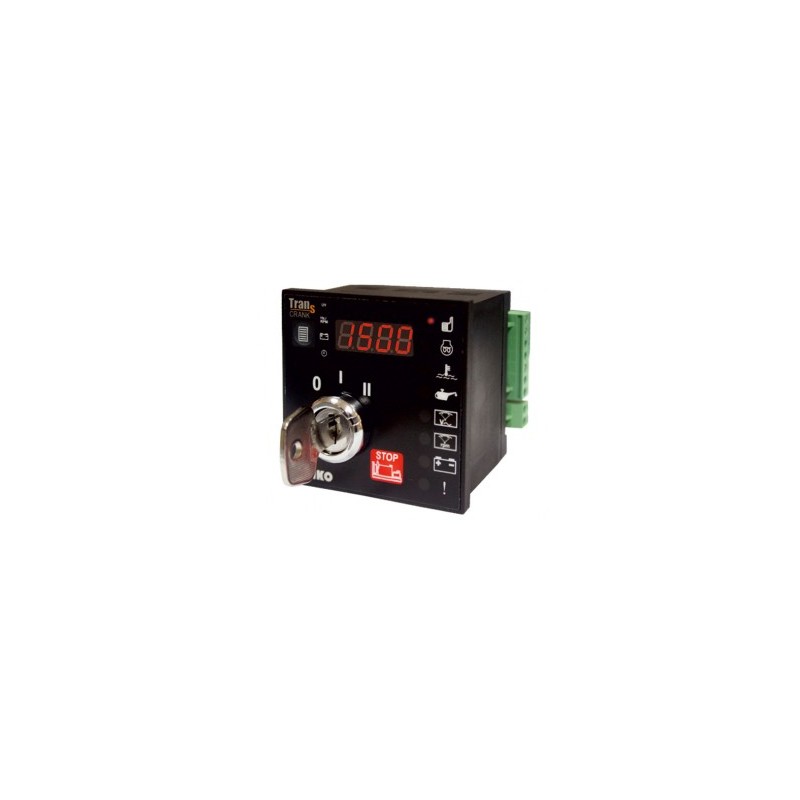

Trans-CRANK Manuel Start Unit with Key Switch

Condition: New product

More info

Trans-CRANKManuel Start Unit with Key SwitchDesigned for generator,Pump & Fire Pump Applications Engine start/stop,Automatic shutdown on fault condition,Provides alarm and status information,Alarm and shutdown inputs,Provides charge alternator excitation currrent,Lamp test function

Features	Descriptions
LCD Languages
Inputs	2x Configurable input, Oil pressure and temperature , Charge Alternator D+(WL) inputs
Outputs	Start , Fuel/Stop,Alarm,Configurable transistor output
Current Measurement
Voltage Measurement
Case
Dimensions	72mm x 72mm x 52mm
Protection Class	NEMA 4X IP65 at front side
Operating Range
DC Battery Supply range	8 to 32Vdc, max.operating current is 360mA
Sender Measurement
Cabin.Temp.Measuremet
Operating / Storage Temp.	-25°C ... +70°C / -40°C ... +85°C
Expansions
Internal	Parameter configuration via RS-232 serial communication
GPRS
Embedded WEB server
Serial ModBus
Approvals	CE, GOST-R
