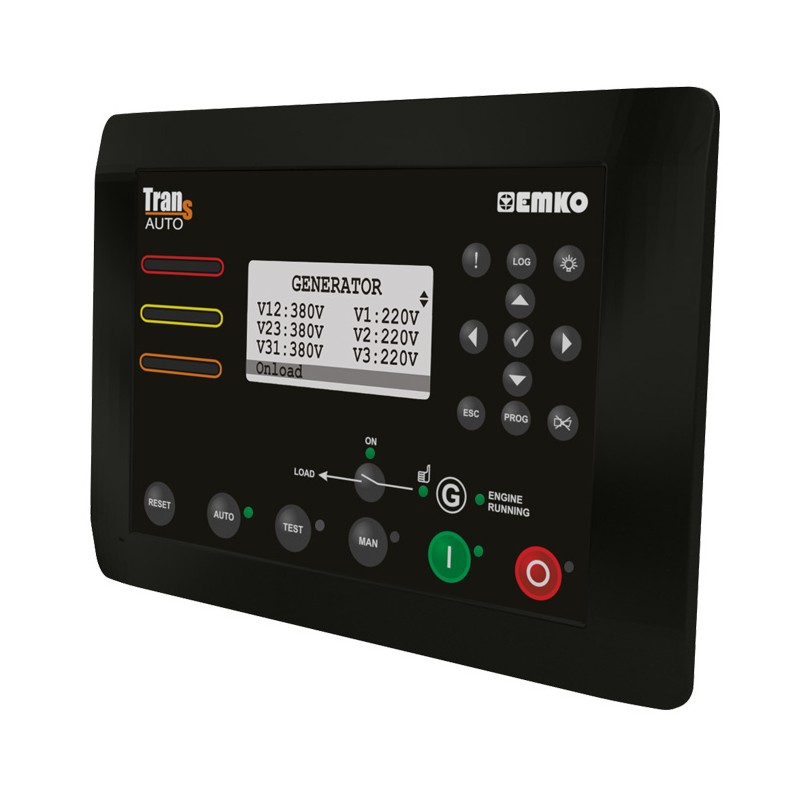

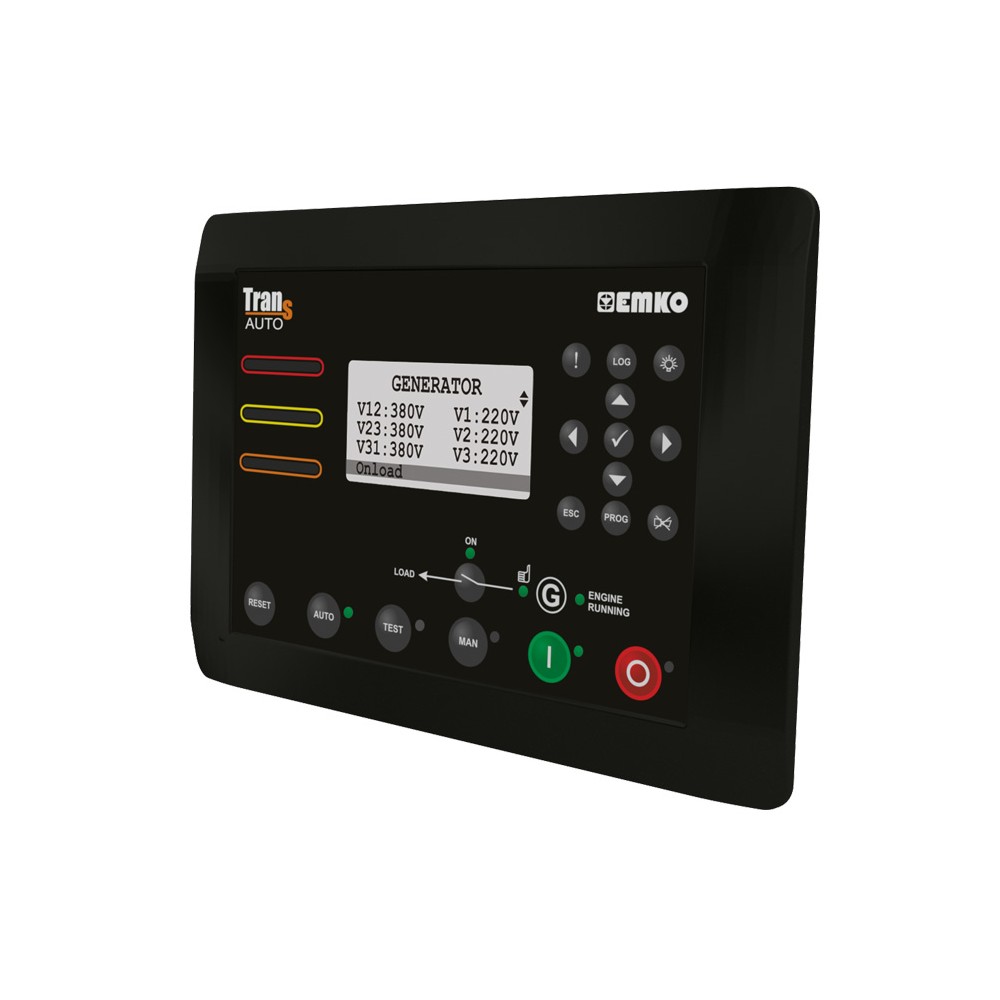

Trans-AUTO Automatic Genset Controller
New product
Trans-AUTO
Automatic Genset Controller
Automatic Genset Controller CanBus J1939 ECU communication, Multi language selections, USB communication, Speed sensing from Magnetic Pickup, Alternator frequency and CanBus ECU, Statistic Records, Generator phase sequence control, Exercise at programmed time intervals
| Specifications | ||
| CanBus | J1939 ECU Communication | |
| LCD Languages | English/Chinese, English/Deutch, English/Turkish, English/Italiano, English/Espanol, English/Francais, English/Russian | |
| Event Logs | Last 50 events with measured values | |
| Inputs | 6x Configurable digital, 4x Analogue senders, 1x Cabinet temperature, Magnetic Pickup, Charge Alternator D+(WL) inputs | |
| Outputs | Configurable 2x Relays, 4x Transistors, GBR outputs | |
| Current Measurement | 3 phases CT inputs for Load Current, 1x CT input for Earth Current | |
| Voltage Measurement | 3 phases for Alternator | |
| Power Factor Measurement | For 3 phases | |
| Case | ||
| Dimensions | 229mm x 152mm x 41mm | |
| Panel Cut-Out | 182mm x 135mm | |
| Protection | NEMA 4X IP65 at front side | |
| Weight | Approximately 0,53Kg | |
| Ratings | ||
| DC Battery Supply range | 8 to 32Vdc, max.operating current is 360mA | |
| CT Secondary | 5A | |
| Sender Measurement |
0 to 1300 ohm, accuracy: 1%FS, resolution: 1 ohm |
|
|
Cabin.Temp.Measuremet |
-50 to +100 ºC, accuracy: 1 % FS, resolution: 1 ºC. | |
| Operating / Storage Temp. | -20°C to +70°C / -30°C to +80°C | |
| Expansions | ||
| Input /Output | with Trans-I/O module | |
| Analogue Input | with Trans-Analogue module | |
| Dual working | with Trans-DUAL module | |
| Remote Communication & Visualisation | ||
| Built-in | USB 2.0 | |
| GSM | with Trans-Messenger module | |
| GPRS | with Trans-Messenger.GP module | |
| Ethernet | with Trans-Messenger.PRO module | |
| Embedded WEB server |
with Trans-WEB-AMF module or with Trans-WEB.GP module |
|
| Serial ModBus | with Trans-Messenger.485 module | |
| Wireless | with Trans-Messenger.RF module | |
| Quality Certificates | ||
| CE, GOST-R | ||
