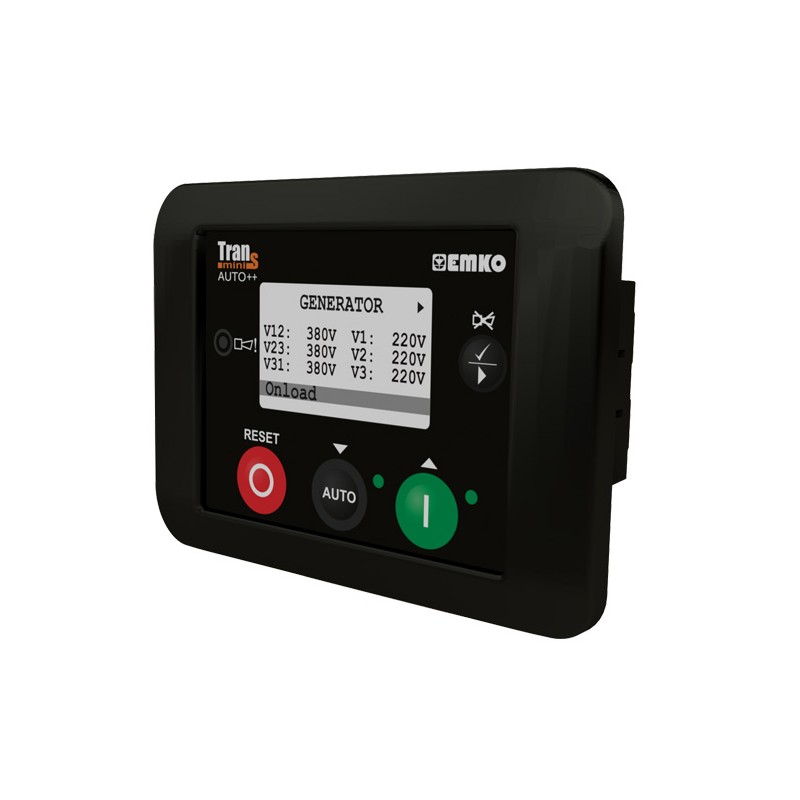

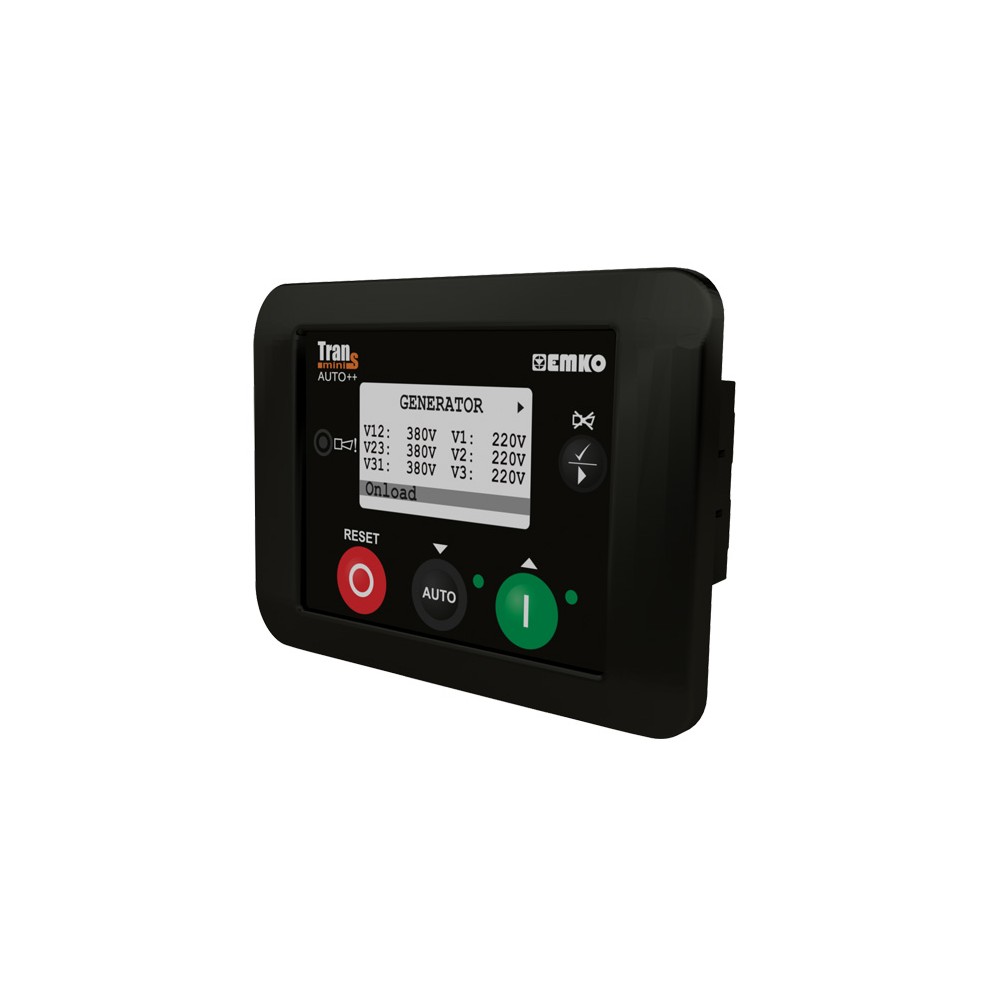

Trans-MiniAUTO++ Automatic Genset Controller
New product
Trans-MiniAUTO++
Automatic Genset Controller
Automatic Genset Controller CanBus J1939 ECU communication, Multi language selections, RS-232 communication, Speed sensing from Magnetic Pickup, Alternator frequency and CanBus ECU, Statistic Records, 3x resistive sender inputs for Temperature,Oil Pressure and Fuel Level,Configurable 3 inputs and 3 outputs, 3 phase alternatore voltage measurement, 1 phase load current measurement
| Specifications | ||
| CanBus | J1939 ECU Communication | |
| LCD Languages | English/Chinese, English/Deutch, English/Turkish, English/Italiano, English/Espanol, English/Francais, English/Russian | |
| Event Logs | Last 50 events with measured values | |
| Inputs | 3x Configurable digital, 3x Analogue senders, Magnetic Pickup, Charge Alternator D+(WL) inputs | |
| Outputs | Configurable 3x Transistors, GBR outputs | |
| Current Measurement | 3 phases CT inputs for Load Current, 1x CT input for Earth Current | |
| Voltage Measurement | 3 phases for Alternator | |
| Power Factor Measurement | For 3 phases | |
| Case | ||
| Dimensions | 111mm x 81mm x 61mm | |
| Panel Cut-Out | 81mm x 70mm | |
| Protection | NEMA 4X IP65 at front side | |
| Weight | Approximately 0,3Kg | |
| Ratings | ||
| DC Battery Supply range | 8 to 32Vdc, max.operating current is 360mA | |
| CT Secondary | 5A | |
| Sender Measurement |
0 to 1300 ohm, accuracy: 1%FS, resolution: 1 ohm |
|
|
Cabin.Temp.Measuremet |
-50 to +100 ºC, accuracy: 1 % FS, resolution: 1 ºC. | |
| Operating / Storage Temp. | -20°C to +70°C / -30°C to +80°C | |
| Product Options | ||
| Trans-MiniAUTO++ | Auto Start GenSet Controller | |
| Trans-MiniAUTO++.CAN | Auto Start GenSet Controller,CanBus J1939 communication | |
| Trans-MiniAUTO++.MPU | Auto Start GenSet Controller, speed sensing from Magnetic Pickup | |
| Remote Communication & Visualisation | ||
| Built-in | RS-232 | |
| Quality Certificates | ||
| CE, GOST-R | ||
