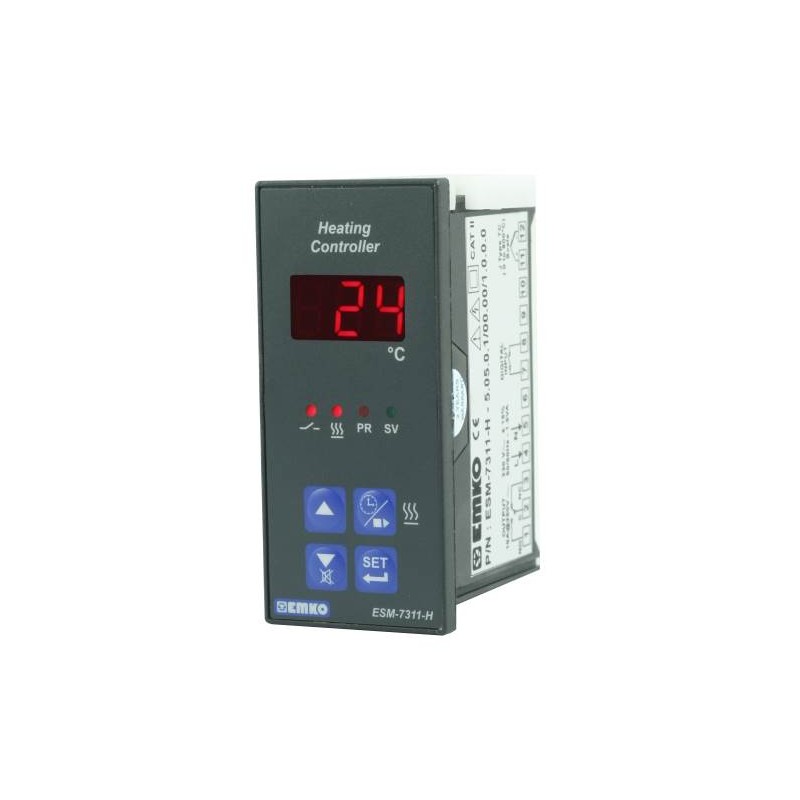

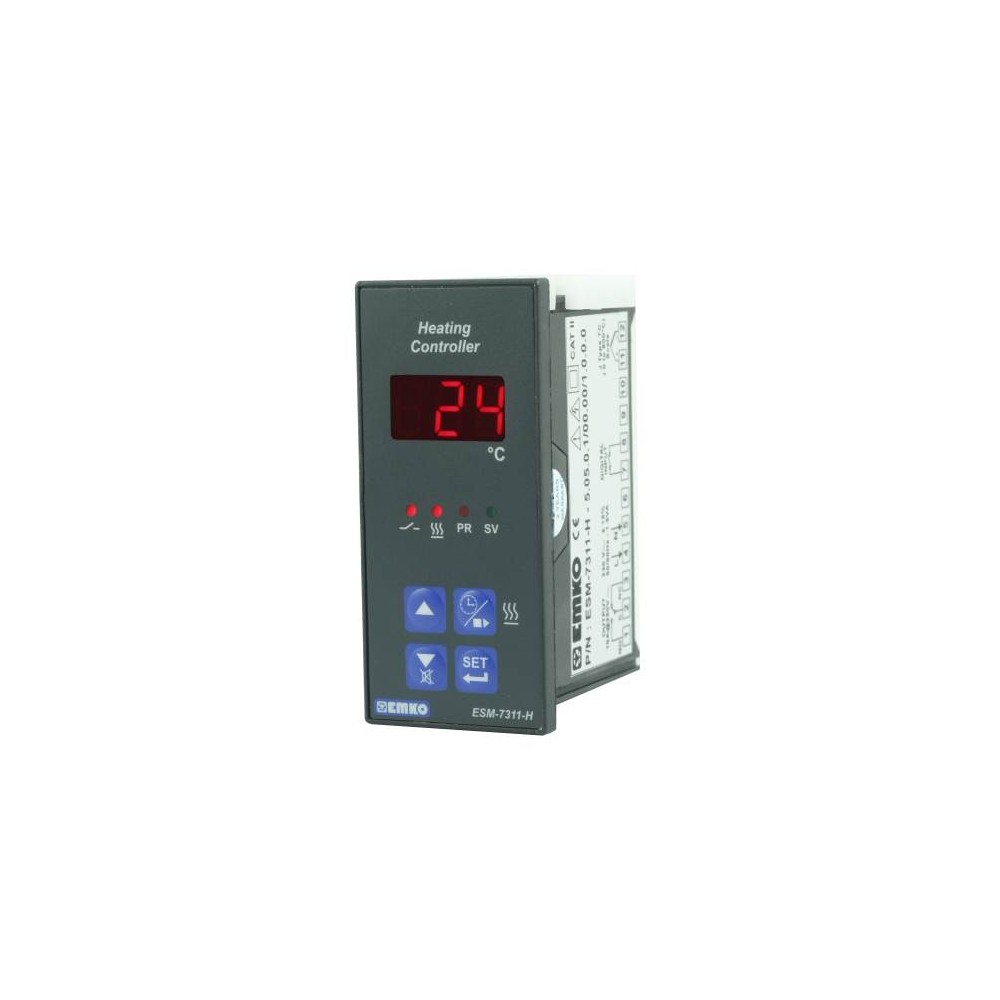

ESM-7311-H Digital ON/OFF Temperature Control Device With Buzzer

Condition: New product

More info

ESM-7311-H
Digital ON/OFF Temperature Control Device With Buzzer

ESM-7311-H series heating controllers are designed for measuring and controlling temperature. They can be used in many applications with their easy use, On/ Off control form and cooking time properties. Some application fields; Heating, Baking Ovens, Incubators, Storages, Air Conditioning.

Display and Front Panel
Buttons	Set, direction and cooking time buttons
Led Indicators	SV (Green), OUT (Red), PR (Red), Cooking Time Active (Red) 3 mm
Display	14 mm Red 3 digits LED display
Body
Physical Features	35 mm x 77 mm 62,5 mm
Protection Class	NEMA 4X (IP65 at front, IP20 at rear)
Weight	Approximately 0.20 Kg.
Installation	Fixed Installation
Electrical Features
Supply Voltage and Power	230 V ~ (+%15) 50/60 Hz. 1.5 VA 115 V ~ (+%15) 50/60 Hz. 1.5 VA 24 V ~ (+%15) 50/60 Hz. 1.5 VA 24 Vac/dc ~ (-%15, +%10) 50/60 Hz. 1.5 VA
Sensor Inputs	NTC, PTC, TC, RTD NTC (10k @.25 ℃) PTC(1000 @.25 ℃) J, K (IEC584.1)(ITS90) PT-100, PT-1000 (IEC751)(ITS90)
Scale	Fe CuNi 0℃...800℃ NiCr 0℃...999℃ PTC -50℃...150℃ / -19,9℃...99.9℃ NTC -50℃...400℃ / -19,9℃...99.9℃ PT 100 / PT 1000 -50℃...400℃ / -19,9℃...99.9℃
Accuracy	± % 1 of full scale for Thermocouple and Thermoresistance
Outputs
Relay Output	10A@250 V~ at resistive load
SSR Output (Optional)	15mA@12Vdc (Maximum)
Control
Hysteresis	1 to 100℃for TC type devices, 1 to 100℃for PT-100 (-50℃, 400℃) and PT-1000 (-50℃, 400℃) , 0.1 to 10.0℃PT-100 (-19.9℃, 99.9℃) and PT-1000 (-19.9℃, 99.9℃), 0.1 to 10.0℃PTC (-19.9℃, 99.9℃) and NTC (-19.9℃, 99.9℃) 1 to 20℃PTC (-50℃, 150℃) and NTC (-50℃, 100℃)
Control Form	On / Off
Reading Frequency	3 readings per second
Internal Buzzer	>83dB
Quality Standarts
Approvals	EAC, CE
