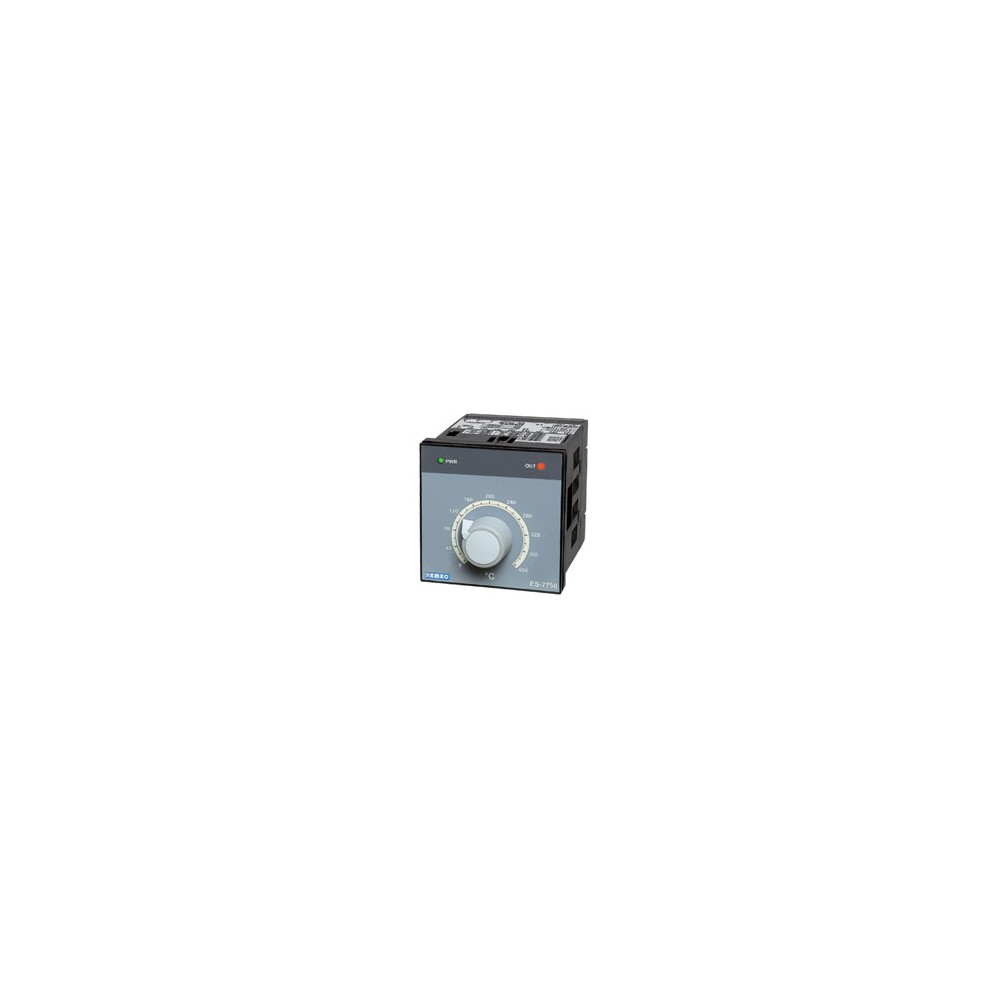

ES-7750 Analogue Temperature Controller

ES-7750
Analogue Temperature Controller

- J type Thermocouple Input or , K type Thermocouple Input or , R type Thermocouple Input or , S type Thermocouple Input or , 2 or 3-wire PT 100 Input (It must be determined in order) - ON/OFF operation - Hysteresis value configurable with Jumper (It must be determined in order)

Device Type : Analogue Temperature Controller

Housing&Mounting : 72mm x 72mm x 104mm DIN Size 43700 plastic housing for panel mounting.

Panel cut-out is 69x69mm.

Protection Class : NEMA 4X (IP65 at front, IP20 at rear).

Weight : Approximately 0.30 Kg.

Environmental Ratings : Standard, indoor at an altitude of less than 2000 meters

with none condensing humidity.

Storage/Operating Temperature : -40 C to +85 C / 0 C to +50 C

Storage/Operating Humidity : 90 % max. (None condensing)

Installation : Fixed installation

Overvoltage Category : II

Pollution Degree : II, office or workplace, none conductive pollution

Operating Conditions : Continuous

Supply Voltage and Power :  230V V (±15%) 50/60 Hz. 4VA, 115V V (±15%) 50/60 Hz. 4VA ,

24V V (±15%) 50/60 Hz. 4VA

Temperature Sensor Inputs : TC, RTD

Thermocouple Input Types : J, K, R, S (IEC584.1)(ITS90)

Thermoresistance Input Type : PT-100. (IEC751)(ITS90)

Accuracy : 1% of full scale for Thermocouple and Thermoresistance

Cold Junction Compensation : Automatically ± 0.1°C/1°C.

Line Compensation : Maximum 10 W .

Sensor Break Protection : Upscale

Sampling Cycle : 3 samples per second
