BES05Z2 BES 516-300-S358/1.250"-S4
New product

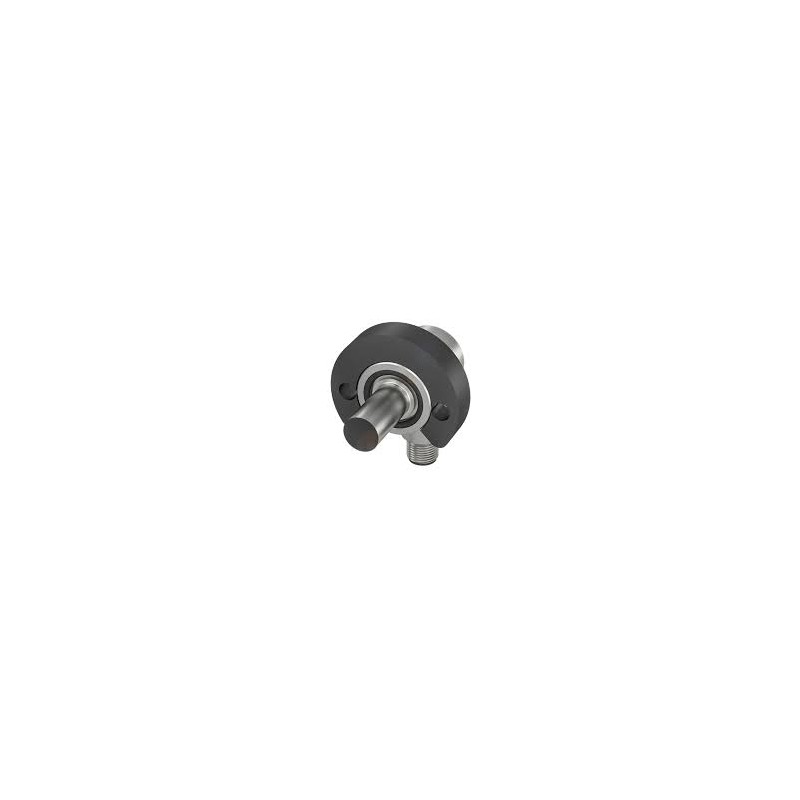

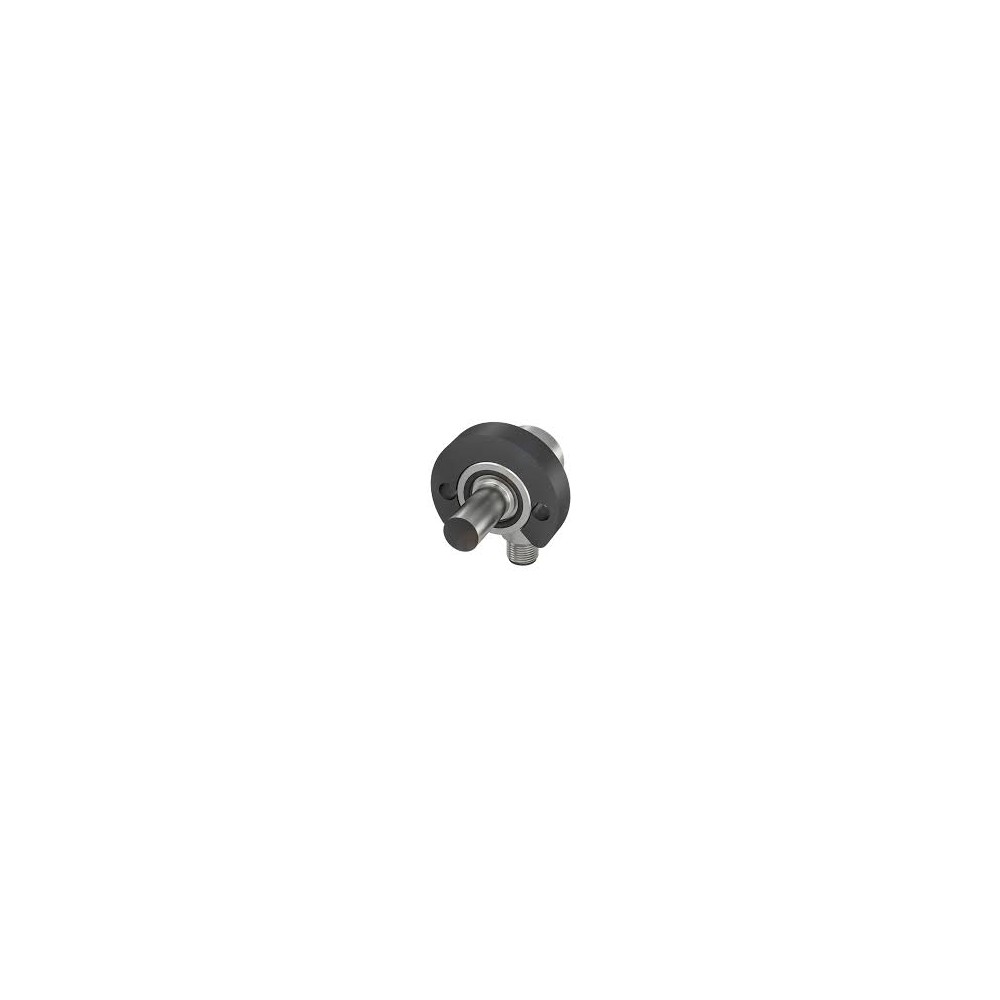

Balluff BES05Z2 BES 516-300-S358/1.250"-S4 Inductive proximity switches
Dimension; Ø 12.7 mm x 1.25 ″
Style; Ø 12.7 mm
Assembly; flush
Range; 2 mm
Switching output; PNP/NPN normally open (NO)
Switching frequency; 30 Hz
Outer body material; Zinc, Aluminum
Detection surface material; Duroplast
Connection; Connector, M12x1-male, 4-pole
Working voltage Ub; 10th..30 VDC
Ambient temperature; -25...70 °C
Maximum nominal pressure; 206 bar
IP rating; IP67
