New
BAW000J BAW G06EE-UAF20B-EP03-K
New product

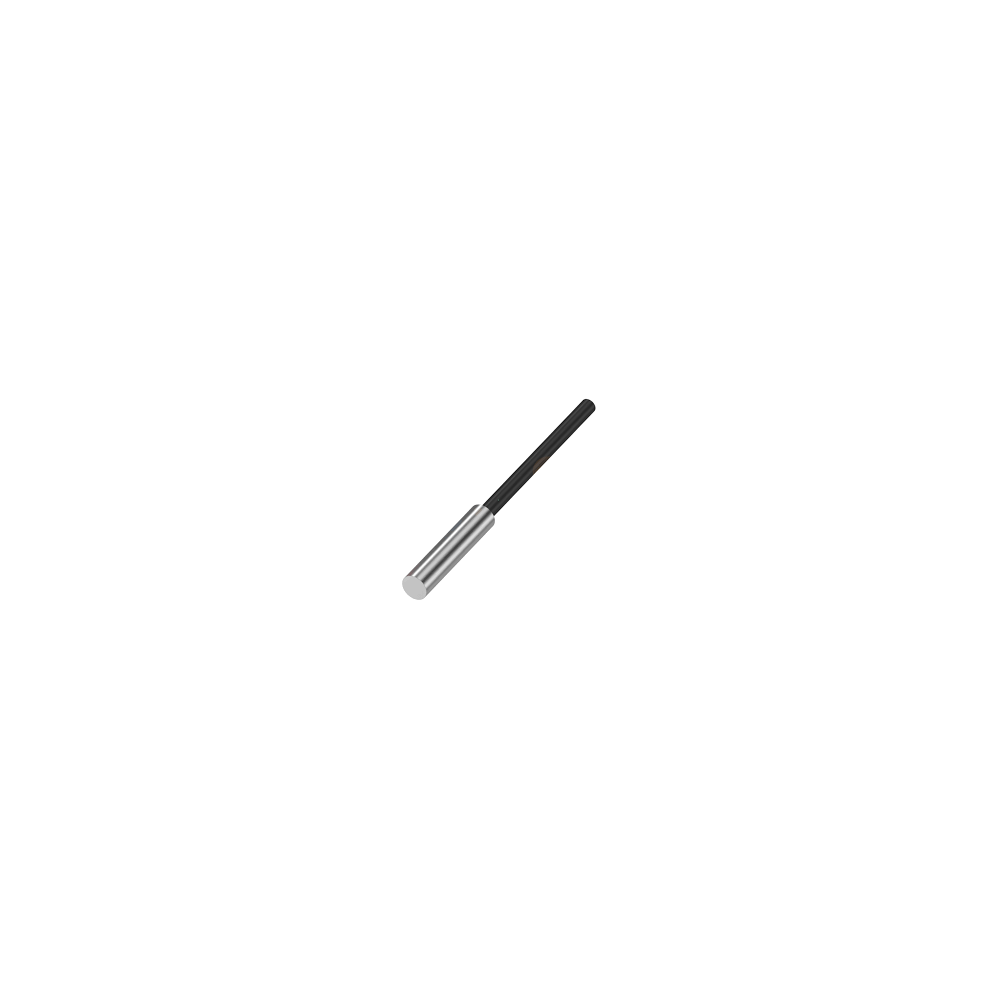

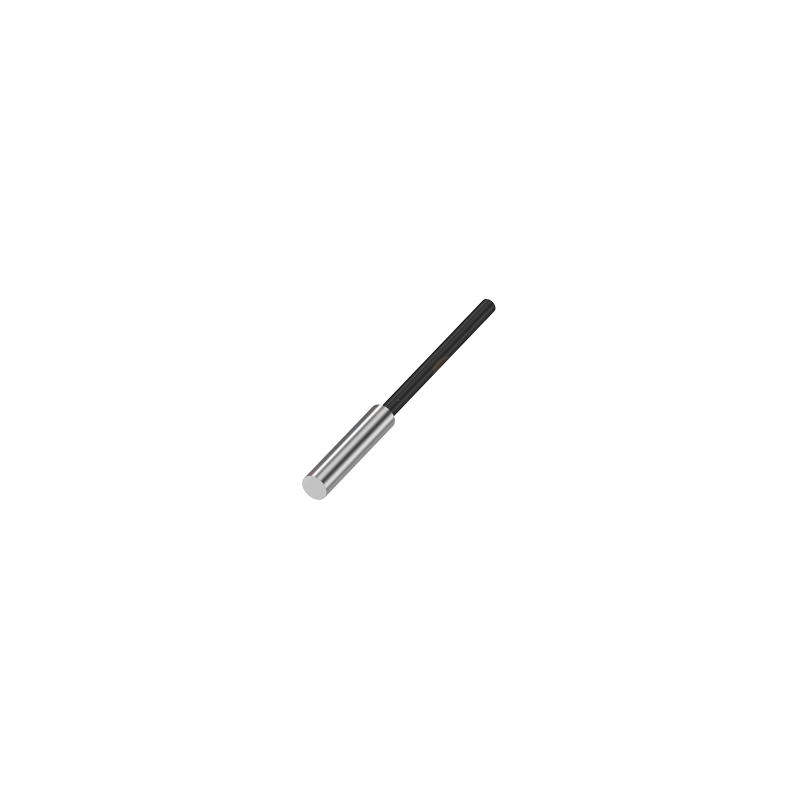

Balluff BAW000J BAW G06EE-UAF20B-EP03-K Inductive distance sensors
Dimension; Ø 6.5 x 30.5 mm
Style; D6.5
Assembly; flush
Range; 0.5...2mm
Analogue output; Analog, voltage 0...10 V / Analog, temperature
Output feature; approaching decline
Limit frequency –3dB; 1000Hz
Repeat accuracy per BWN; ±10 µm
Maximum nonlinearity; ±45 µm
Outer body material; Stainless steel
Detection surface material; PBT
Connection; Cable, 3.00 m, PUR
Working voltage Ub; 21.6...26.4 VDC
Ambient temperature; 10...60 °C
IP rating; IP67
