BAW002Y BAW M30ME-UAC15F-S04G
New product

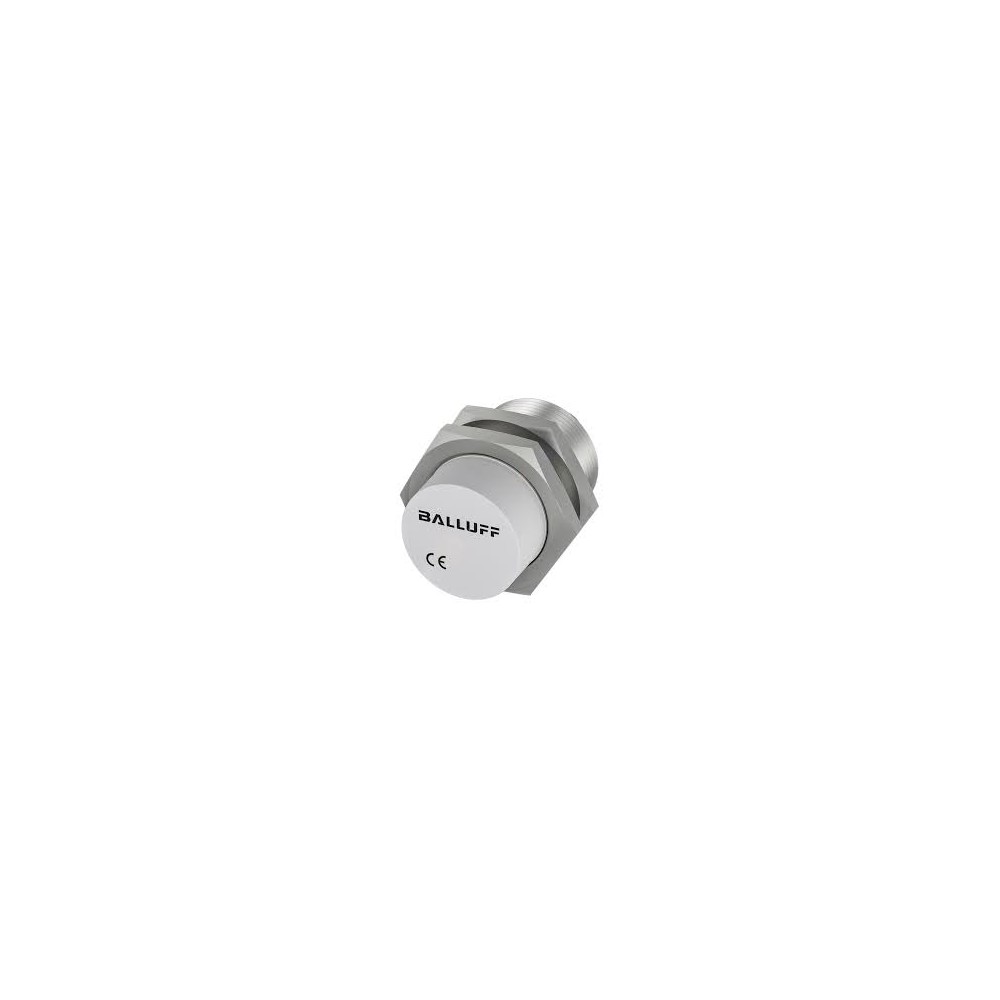

Balluff BAW002Y BAW M30ME-UAC15F-S04G Inductive distance sensors
Dimension; Ø 30 x 57 mm
Style; M30x1.5
Assembly; unburied
Range; 3...15mm
Analogue output; Analog, voltage 0...10 V
Output feature; approaching decline
Limit frequency –3dB; 350Hz
Repeat accuracy per BWN; ±12 µm
Maximum nonlinearity; ±360 µm
Outer body material; Brass, nickel plated
Detection surface material; PBT
Connection; Connector, M12x1-male, 3-pole
Working voltage Ub; 15...30 VDC
Ambient temperature; -10...70 °C
IP rating; IP67
