BAW005J BAW Q80KA-UAC50F-S4-504
New product

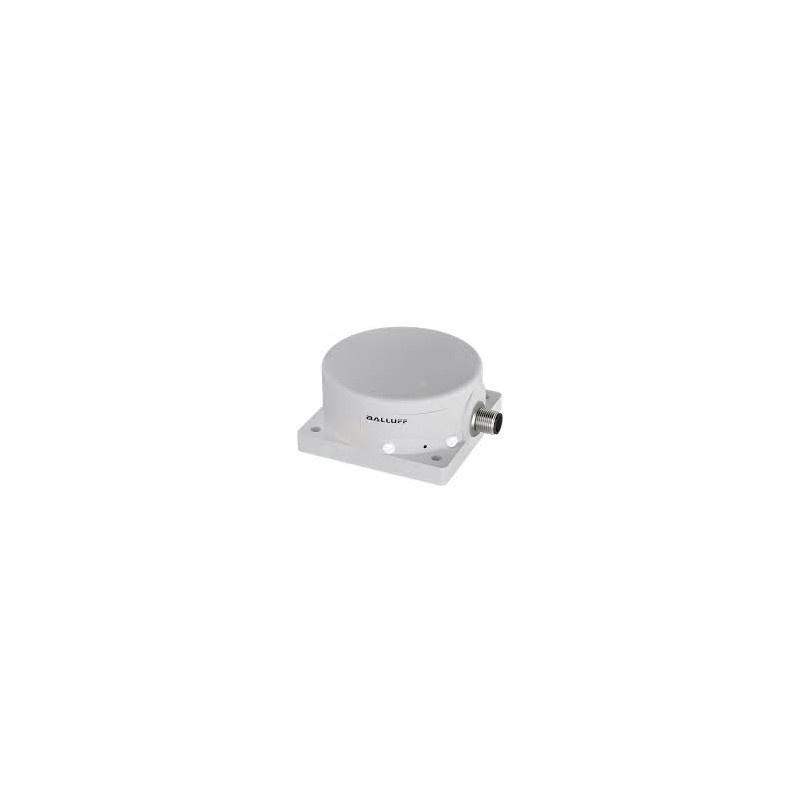

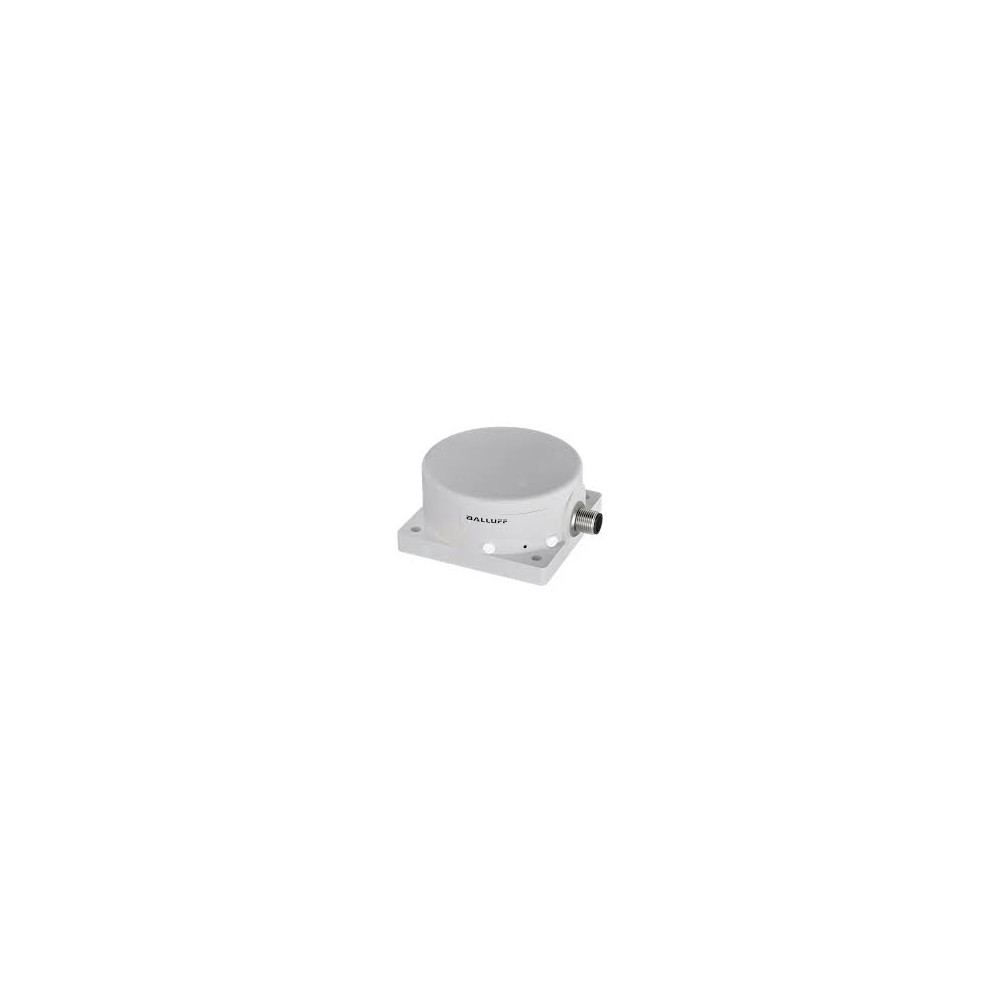

Balluff BAW005J BAW Q80KA-UAC50F-S4-504 Inductive distance sensors
Dimension; 80 x 40 x 80mm
Style; Block style
Assembly; unburied
Range; 0...50mm
Analogue output; Analog, voltage 0...10 V
Output feature; approaching decline
Limit frequency –3dB; 15Hz
Repeat accuracy per BWN; ±12 µm
Maximum nonlinearity; ±750 µm [15…35 mm]; ±1500 µm [5…15 mm, 35…45 mm]; ±2000 µm [0…5 mm, 45…50 mm]
Outer body material; PBT
Detection surface material; PBT
Connection; Connector, M12x1-male, 3-pole
Working voltage Ub; 20...30 VDC
Ambient temperature; -10...70 °C
IP rating; IP67
