BIP0005 BIP CD2-B040-02-S4
New product

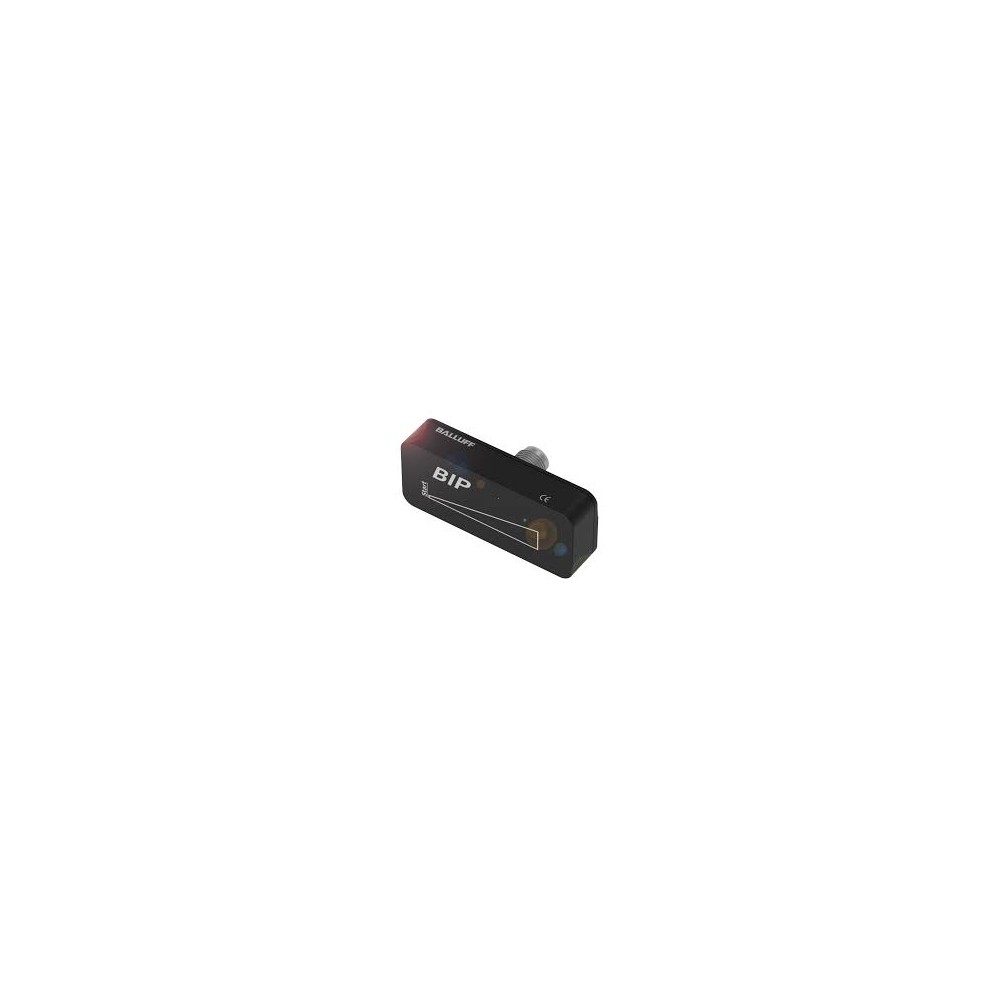

Balluff BIP0005 BIP CD2-B040-02-S4 Inductive position sensors
Dimension; 70 x 30 x 16mm
Style; Block style
Connection; Connector, M12x1-male, 3-pole
Outer body material; PA
Measuring range; 0...40mm
Analogue output; Analog, current 4…20 mA
Output feature; Adjustable
Repeat accuracy per BWN; ±100 µm
Maximum nonlinearity; ±500 µm
Working voltage Ub; 15...30 VDC
Ambient temperature; -25...85 °C
IP rating; IP67
