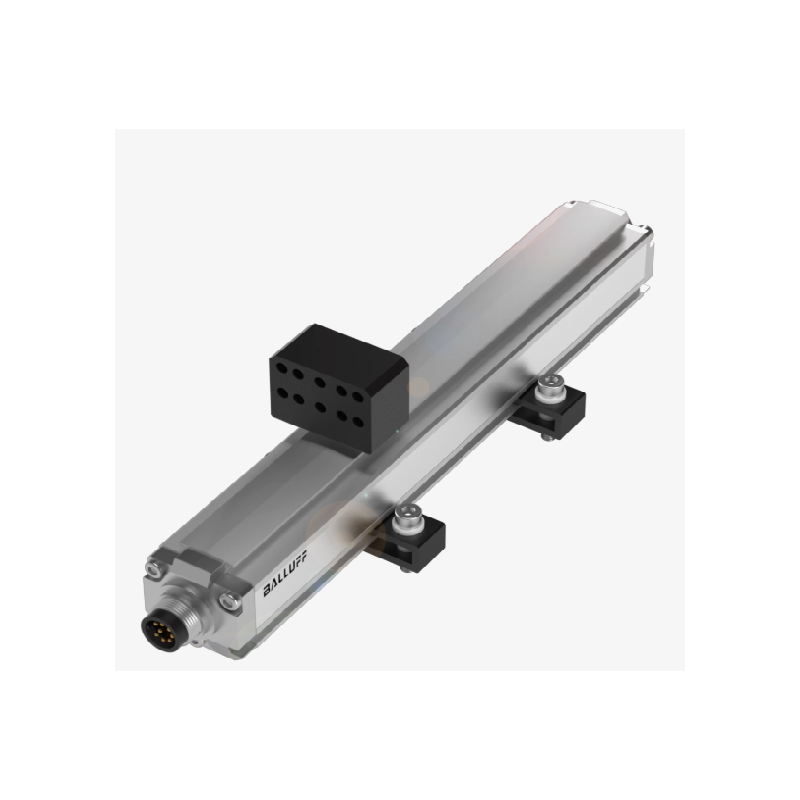

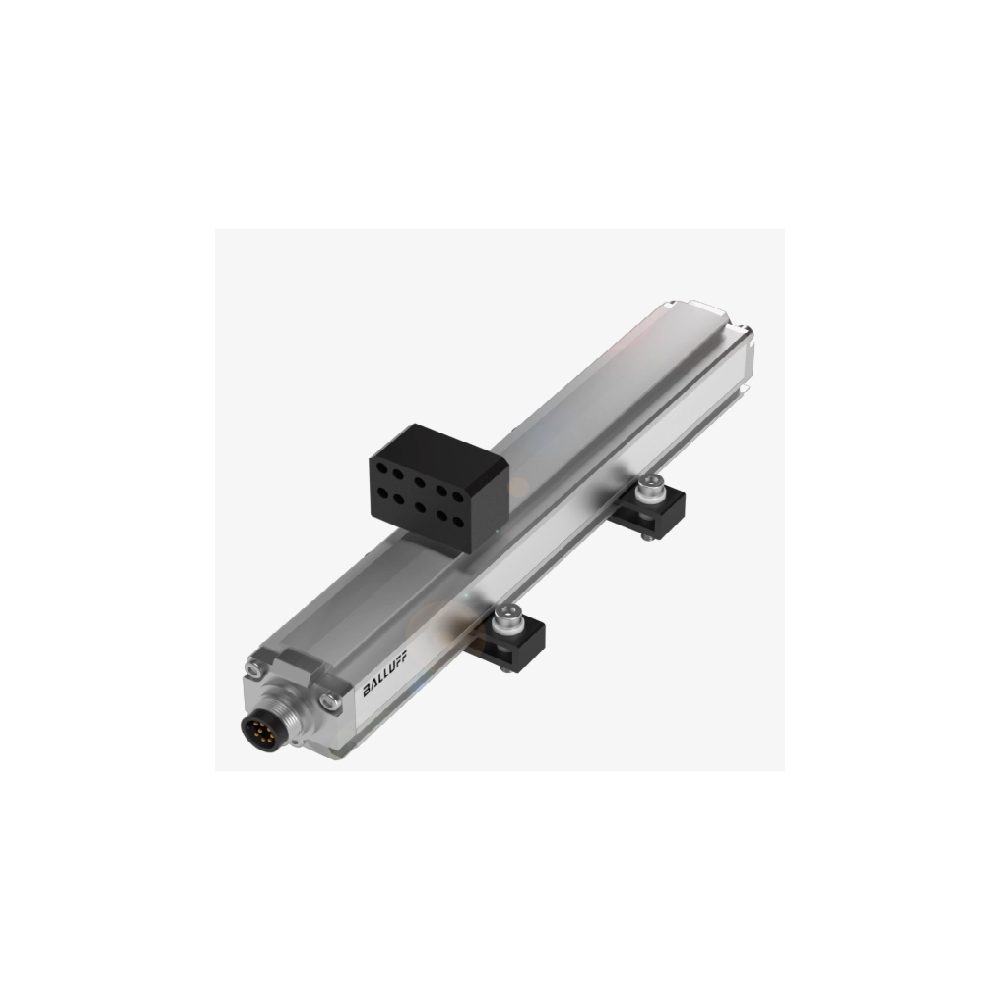

Balluff BTL7 -P- Series - Digital Magnetostrictive linear position sensors in profile housing
Interface; Digital pulse
Measuring length; 50...7620mm
Repetition accuracy; ≤ ± 5 µm
Linearity deviation; nnnn = 0050…5500: ± 50 µm / nnnn > 5500: ± 0.02% FS
Working voltage Ub; 10th..30 VDC
Ambient temperature; -40...85 °C
Mechanical configuration; Block style profile - 37 x 35 mm
Outer body material; Aluminum, Anodized
IP rating; l = S: IP67 with connector l = KA: IP68
