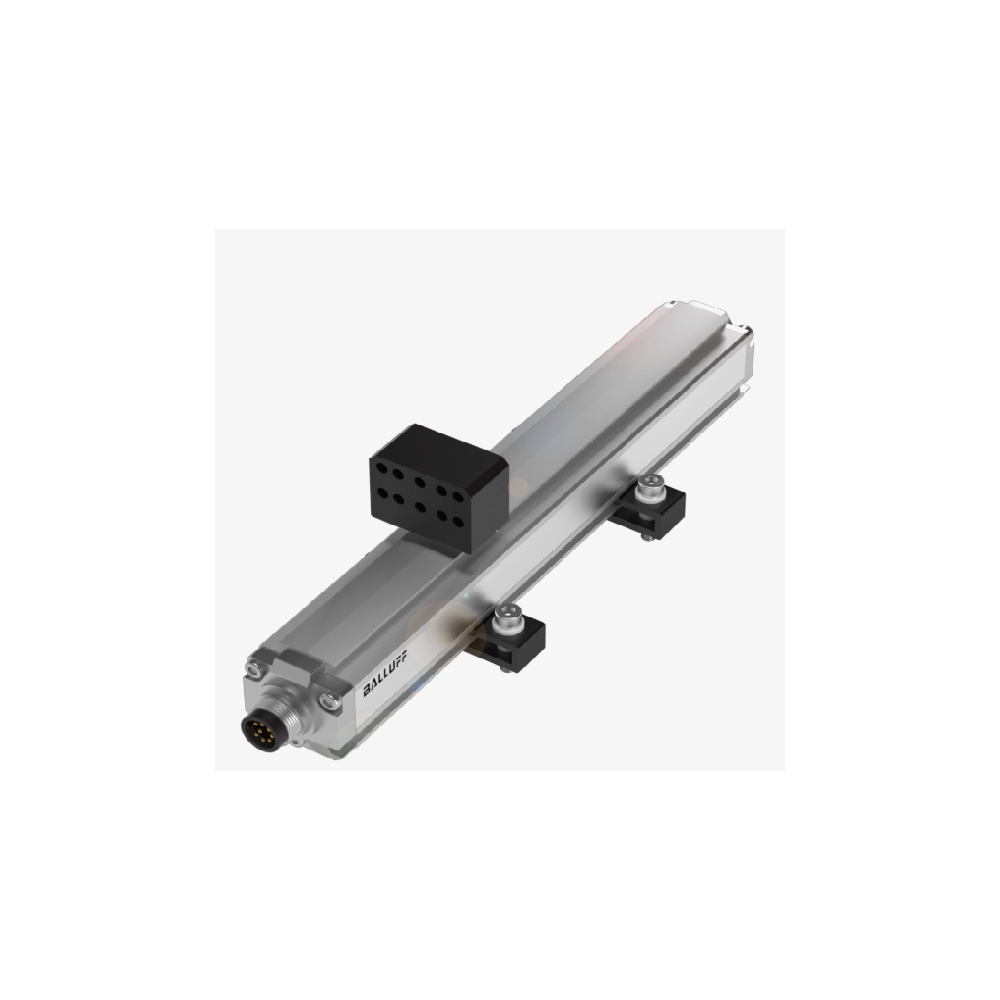

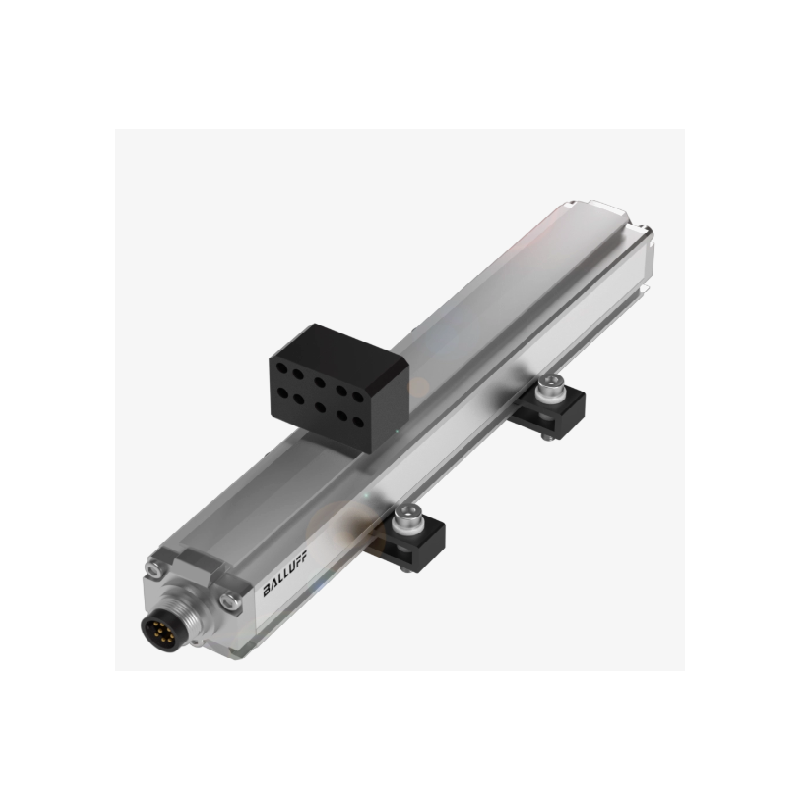

Balluff BTL7 -P- Series - SSI Magnetostrictive linear position sensors in profile housing
Interface; SSI
Measuring length; 50...7620mm
Repetition accuracy; ≤ ± 5 µm
Linearity deviation; d = 1, 2, 3, 7, 9: nnnn = 50…5500: ± 30µm / d = 4, 5, 6, 8 / nnnn = 50…5500: ± 2 LSB / nnnn > 5500: ± 0.02% FS
Working voltage Ub; 10th..30 VDC
Ambient temperature; -40...85 °C
Mechanical configuration; Block style profile - 37 x 35 mm
Outer body material; Aluminum, Anodized
IP rating; l = S: IP67 with connector l = KA: IP68
