BTL7 -Y/Z- Series - Digital
New product

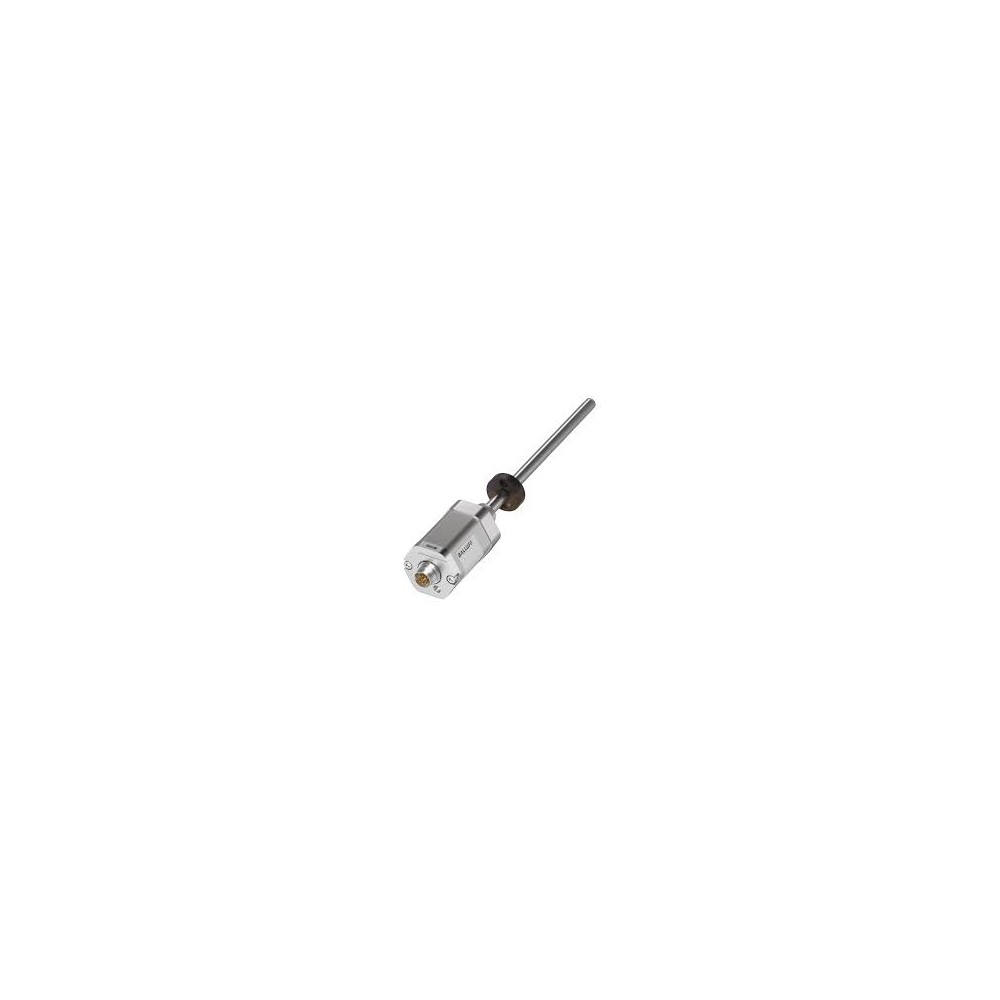

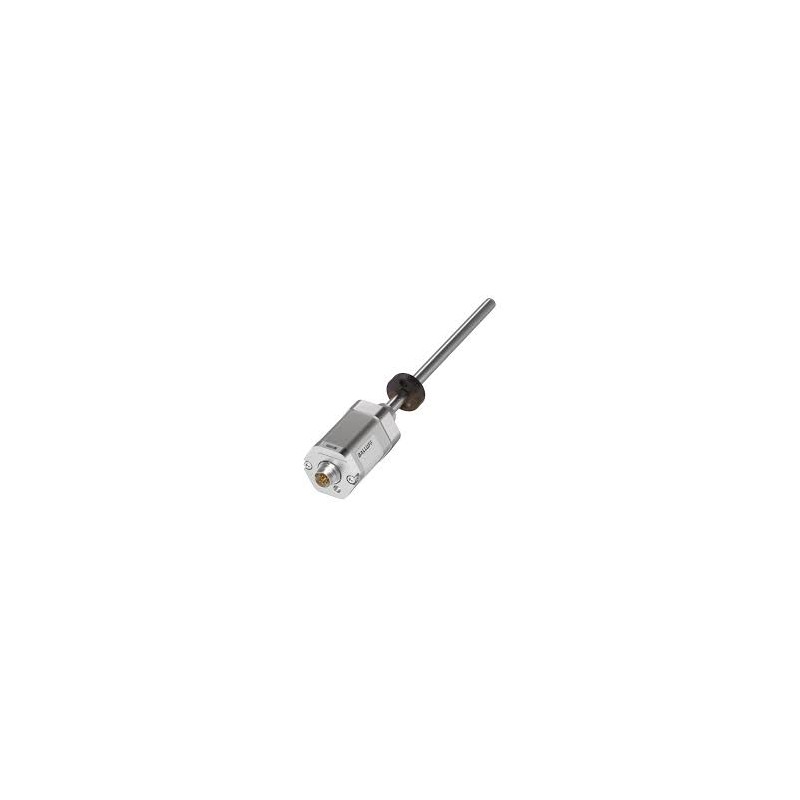

Balluff BTL7 -Y/Z- Series -Magnetostrictive linear position sensors for industrial hydraulic applications
Interface; Digital pulse
Measuring length; 25...7620mm
Repetition accuracy; ≤ ± 5 µm
Linearity deviation; nnnn = 0025…5500: ± 50 µm / nnnn > 5500: ± 0.02% FS
Working voltage Ub; 10th..30 VDC
Ambient temperature; -40...85 °C
Mechanical configuration; 3/4" thread compression
Outer body material; Aluminum, Anodized
IP rating; l = S: IP67 with connector l = KA, FA: IP68
Approval/Compliance; l = S, KA: CE + UKCA + cULus + WEEE / l = FA: CE + UKCA + WEEE
