BTL6 -E- Series - Digital
New product

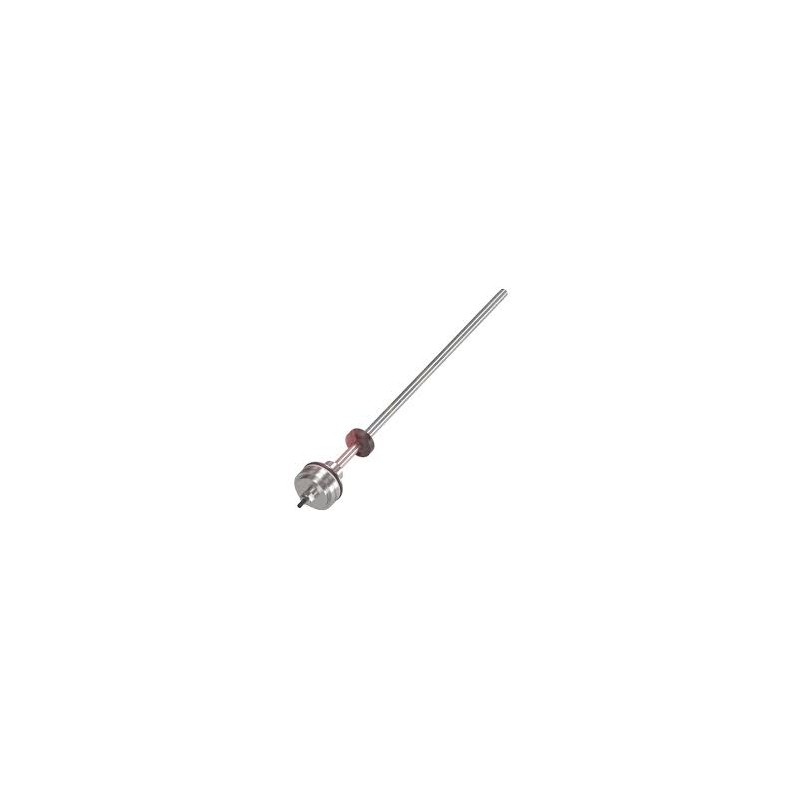

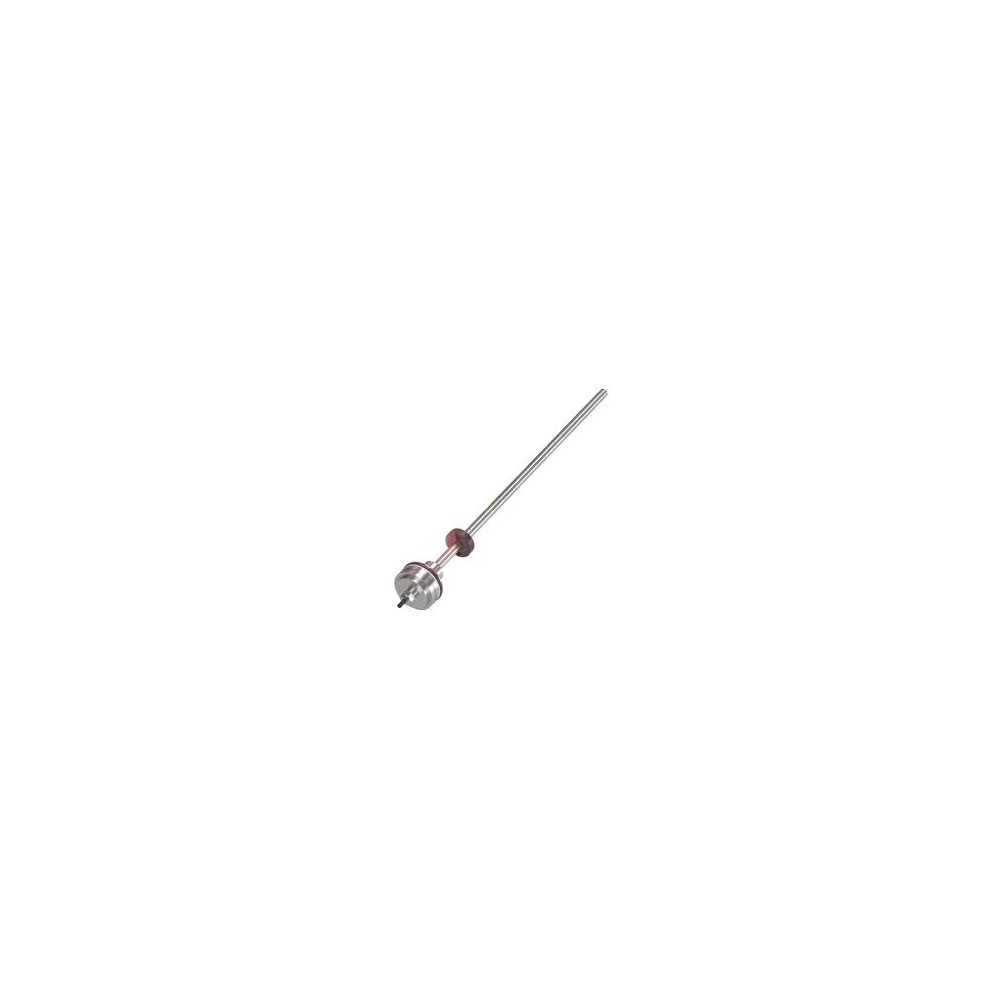

Balluff BTL6 -E- Series - Digital Magnetostrictive position measuring systems for mobile hydraulics
Interface, Digital pulse
Measuring length; 50...2540mm
Repetition accuracy; ≤ 30 µm
Linearity deviation; nnnn = 0050…0500: ± 200 µm / nnnn > 0500: ± 0.04% FS (typ.± 0.02% FS)
Working voltage Ub; 10th..30 VDC
Ambient temperature; -40...85 °C
Mechanical configuration; Compressing the 48h7 bond
Outer body material; Stainless steel (1.4404)
IP rating; IP67
