BTL7 -TZ- Series - Analog Voltage
New product

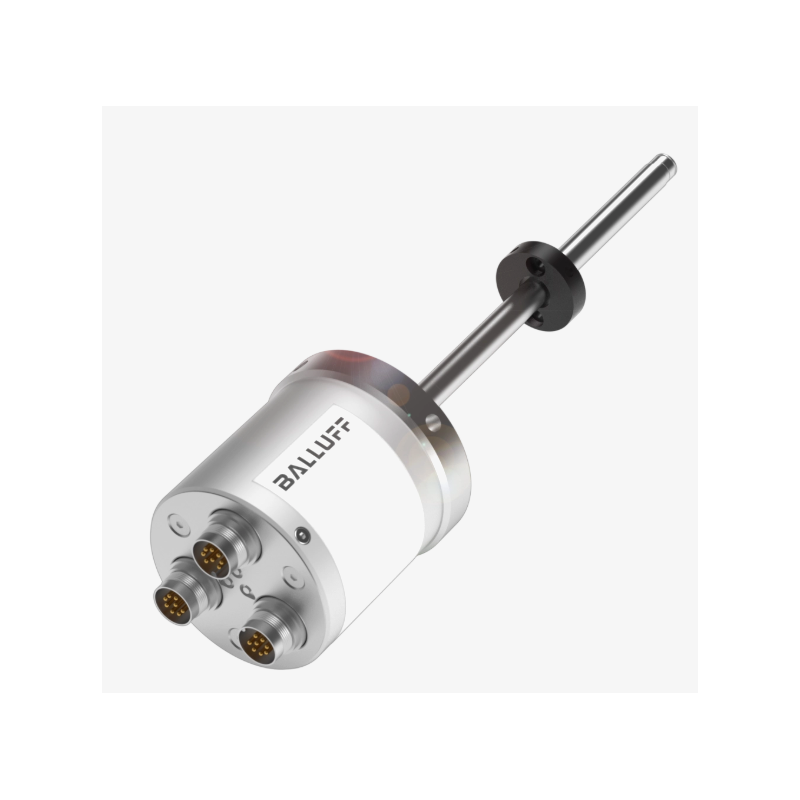

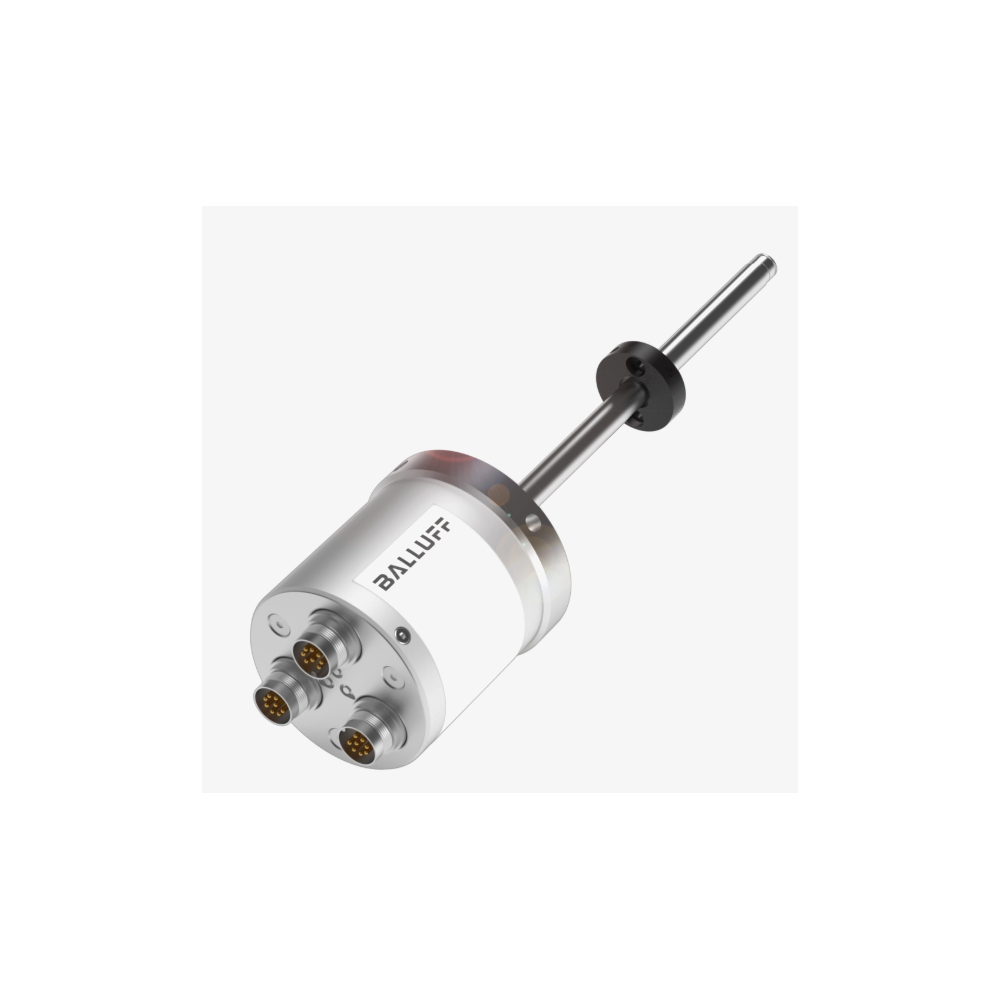

Balluff BTL7 -TZ- Series - Analog Voltage / Redundant magnetostrictive linear position sensors
Interface; Analog, voltage
Measuring length; 25...7620mm
Repetition accuracy; ± 10 µm
Linearity deviation; nnnn = 0050…0500: ± 200 µm / nnnn > 0500: ± 0.04% FS
Working voltage Ub; 10th..30 VDC
Ambient temperature; -40...85 °C
Mechanical configuration; 3/4" thread compression
Outer body material; Aluminum, Anodized
IP rating; IP67
