MSU 3.4L Manual Start Units - MSU Series
New product
MSU 3.4L is designed for single Generator applications with Load management. The unit is fitted with LCD graphic display for simple and efficient user interface. User can select his/her own display language.
MSU3.4L is a full Automatic Control Module, intended for controlling single Generator sets, where intelligent load management is required . The controller can be used with single or three phase generator systems.
3 phase generator voltages are measured in true RMS and also 3 phase generator load current is measured. Phase sequence and Reverse Power detection and protection is provided for the Generator.
User can program any of the auxiliary i/o ports for custom applications. The menu offers extensive control for each i/o and all the parameters can be configured via PC, using the ENKO PRO-Link configuration program. All the parameters can also be configured from the front panel controls. SMS messages can be sent, using optional GSM interface module. The unit can be programmed from remote distance.

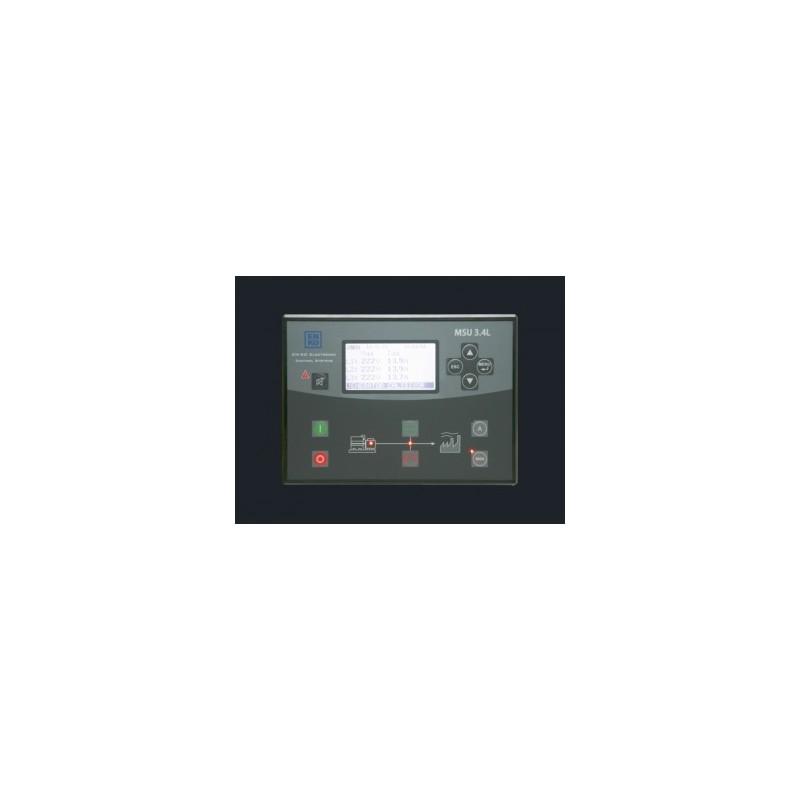

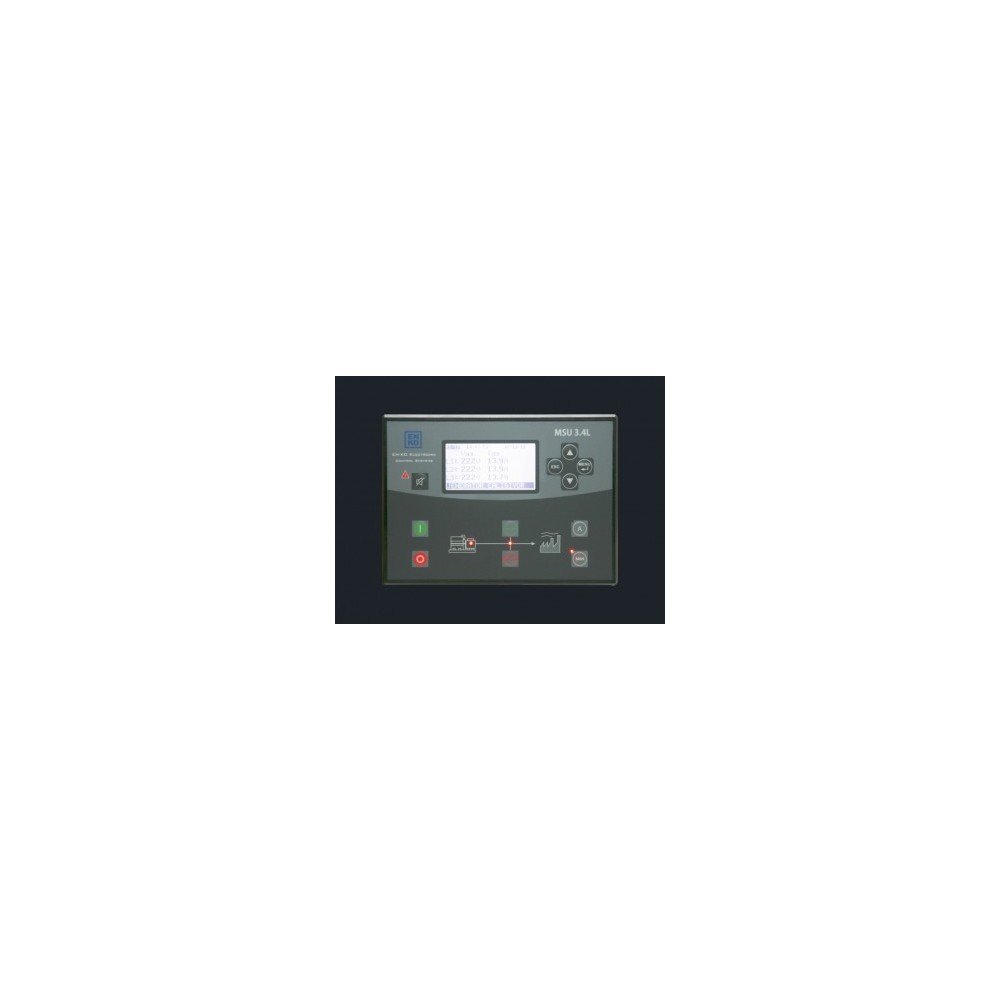

Built-in graphical display offers easy reading of all the parameters during run time and programming. There are 3 analog sensor inputs available and characteristics can be configured from the menu to adapt any type of sensor. There are altogether 13 i/o ports available, among which many can be configured by the user.
Load power is also measured and can be used with dedicated functions in the menu. Decisions can be made depending on active and/or reactive load power value. Total accumulated active/reactive power is also measured and recorded.
The real-time clock allows weekly and/or monthly generator control programs to be made, which can manage periodic test run and /or disabling the generator at certain hours or on specific days.
Magnetic pick-up input is available for reliable and accurate measurement and control of engine speed.
