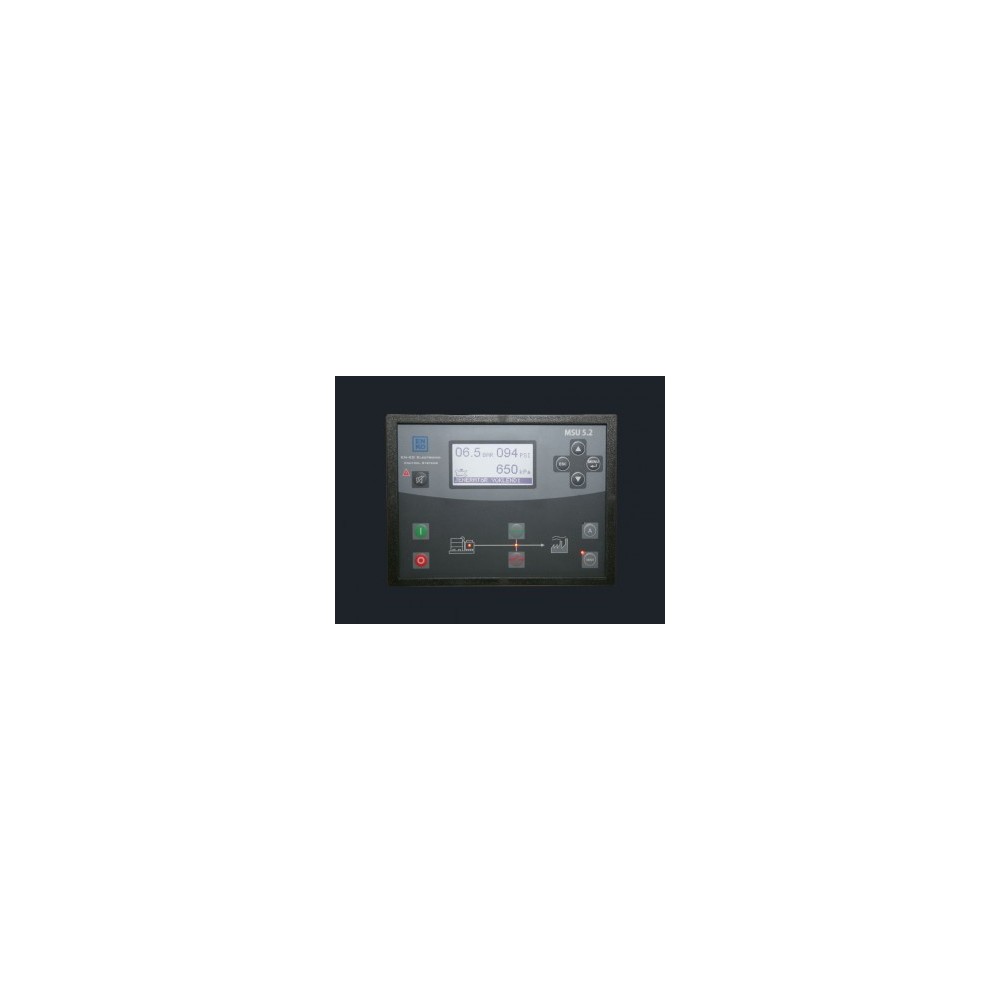

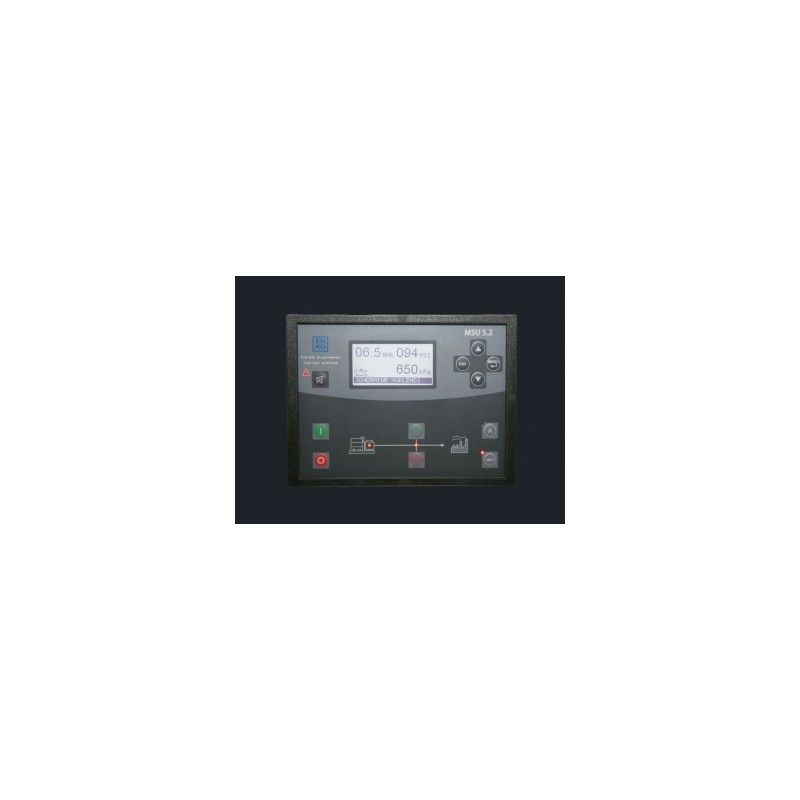

MSU 5.2 Manual Start Units - MSU Series
New product
MSU 5.2 is equipped with Graphical LCD display and provides embedded inteligence for Gen-Set control applications, where high integration flexibility and "on-site" system monitoring is required.
MSU 5.2 is designed with enhanced applications in mind and equipped with all the necessary hardware and software to fulfill this demand.
The unit is equipped with LCD Graphic Display, where user interface is simple and efficient. The user can choose what to display and all the alarm events are described in words. User can select the active display language from the menu. All system parameters can be set very easily.
System hardware allows the user to interface with high demanding applications, where high number of peripheral control is required. The system software also carefully designed in order to allow dedicated functions to be characterized for a particular application. Simple logic functions can also be executed on the auxiliary inputs and outputs, hence reducing the number of peripheral components.
The controller has built-in multiple communication ports for enhanced interface with external control systems. RS232/485 can be used for onsite system configuration as well as remote control and monitoring of the system while integrated CAN Bus can communicate with engine ECU module. The system can also be interfaced with ENKO external I/O expansion modules for applications where specific dedicated hardware
control is needed.
Three analog variables can be measured and controlled and functions can be made to operate on these measured analog values. In the standby mode, the unit can also measure and control the engine body temperature. The load can be controlled both manual and automatic, where both MCB and GCB contactors can be controlled from the front panel.
The system can be used for dual Gen-Set applications, where one can be selected to be master and allow to control the others as slave units. MSU 5.1 allows remote programming, monitoring and GSM interface with any external control system.
