Model A2G-45 Differential pressure transducer For ventilation and air-conditioning, with switch and digital display
New product
Model A2G-45
Differential pressure transducer
For ventilation and air-conditioning, with switch and digital display
Applications of the differential pressure transducer
- For monitoring the differential pressure of air and other non-inflammable and non-aggressive gases
- Differential pressure monitoring in filters and clean rooms
Special features of the differential pressure transducer
-
- Electrical output signal 0 ... 10 V (3-wire)
- Simple and quick mounting
- Maintenance-free
- Maximum operating pressure 20 kPa
Description of the differential pressure transducer

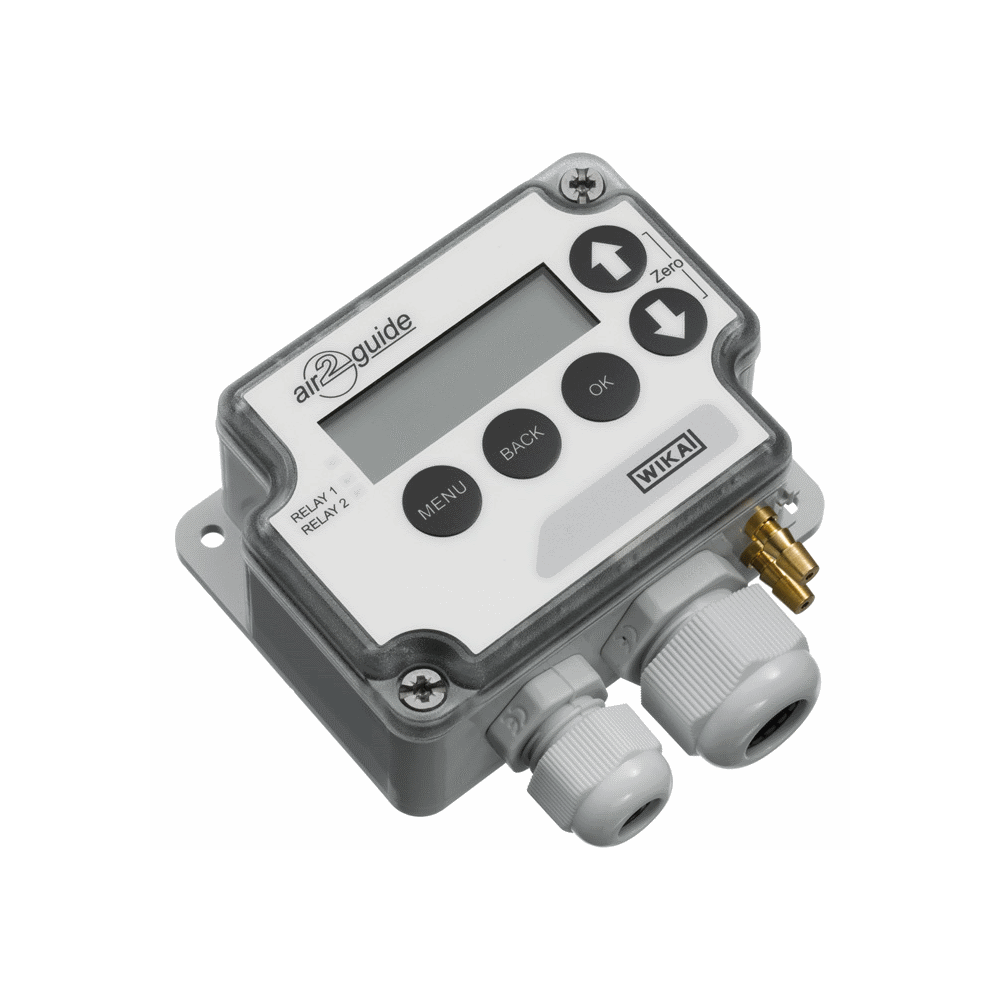

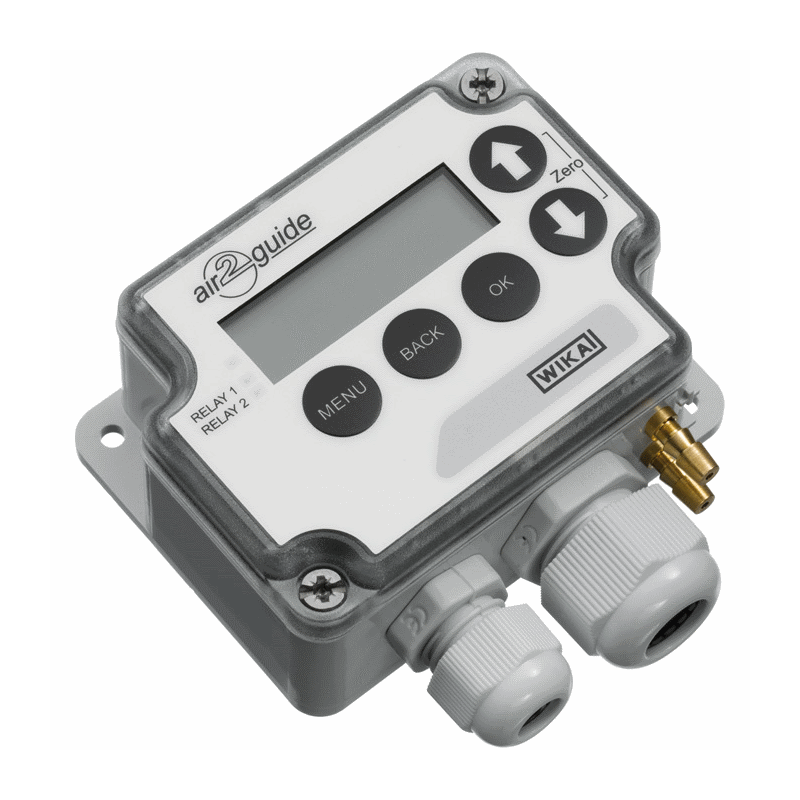

The model A2G-45 differential pressure transducercombines a local differential pressure display, measured value transmission and differential pressure switching in a single instrument and is therefore mainly used in the ventilation and air-conditioning industry.
A second switch relay and/or an automatic zero point setting are optionally available. The compact and robust measuring instrument impresses with its intuitive operation. The setting of different switch points for rising and falling differential pressure make the A2G-45 very flexible and adaptable in use.
Through the use of the model A2G-45 differential pressure transducer the number of conventional measuring instruments otherwise used can be reduced considerably.
