BNS057M BNS 813-B03-D08-40-69-03-FC
New product

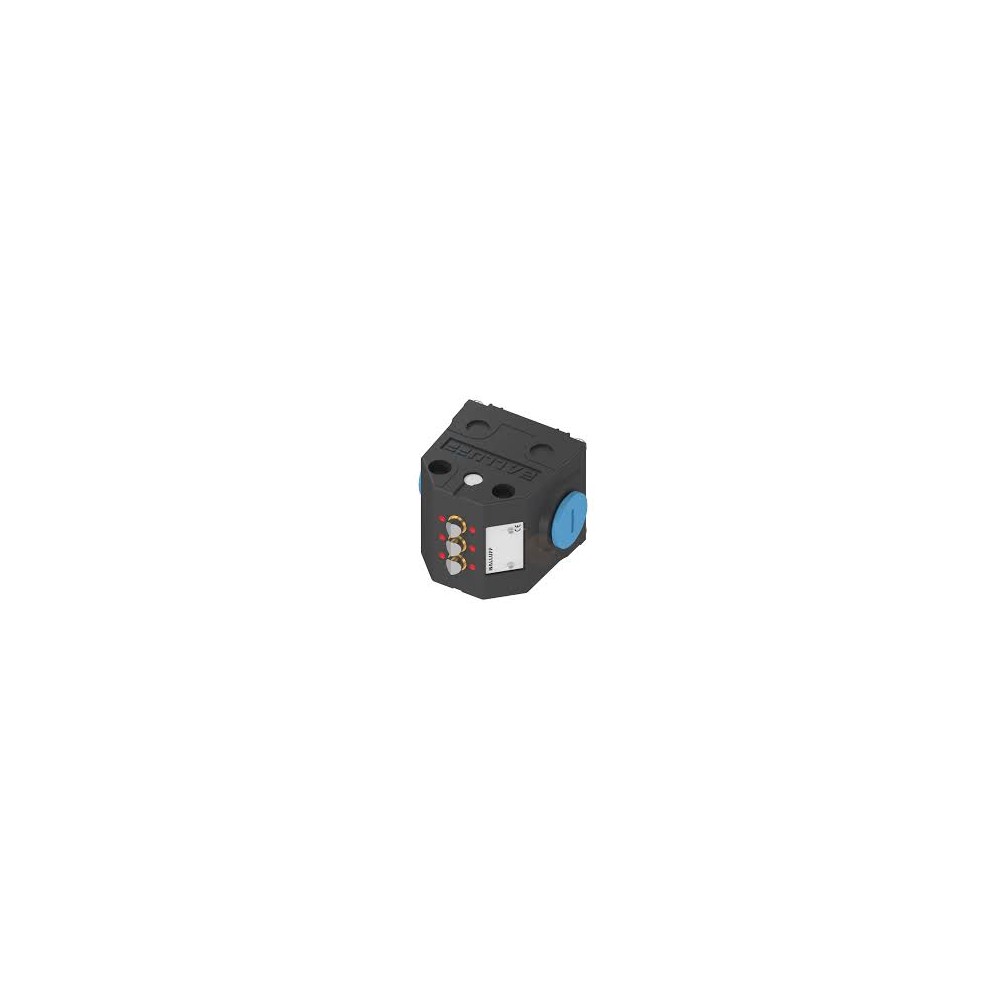

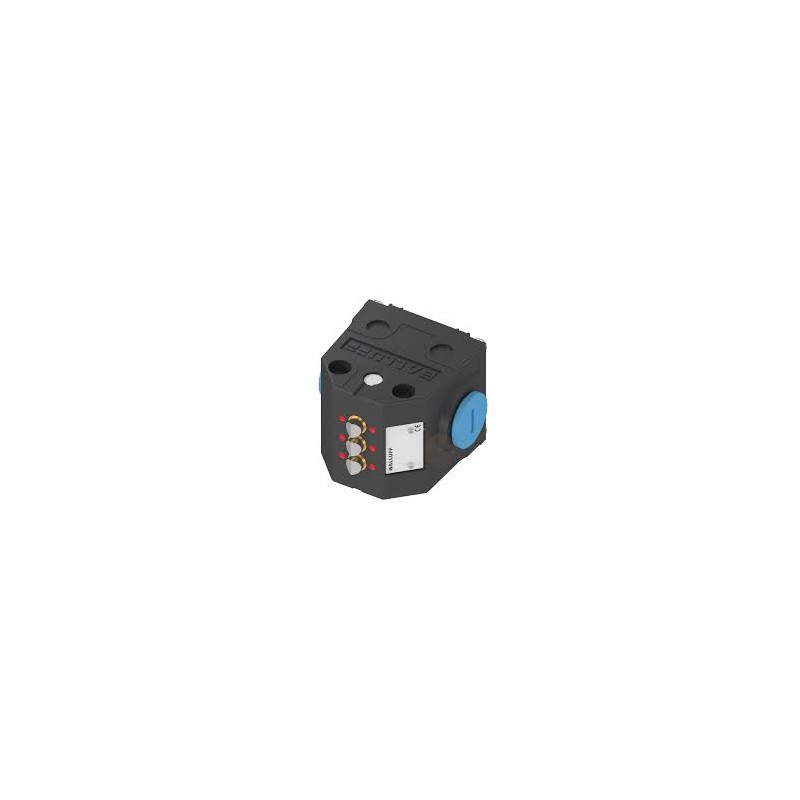

Balluff BNS057M BNS 813-B03-D08-40-69-03-FC Mechanical multi-position limit switches with positive opening
Outer body material; Aluminum, Anodized
Number of switching positions; 3x Chisel
Version; With forced opening
Working principle; Mechanical
Continuous current; 5 A
Rated operating voltage; 250 V AC
Assembly; Vertical
Direction of approach; length, parallel to the joint surface
Approach speed; 20 m/min
Connection type; Solder connection
Ambient temperature; -5...85 °C
IP rating; IP67
