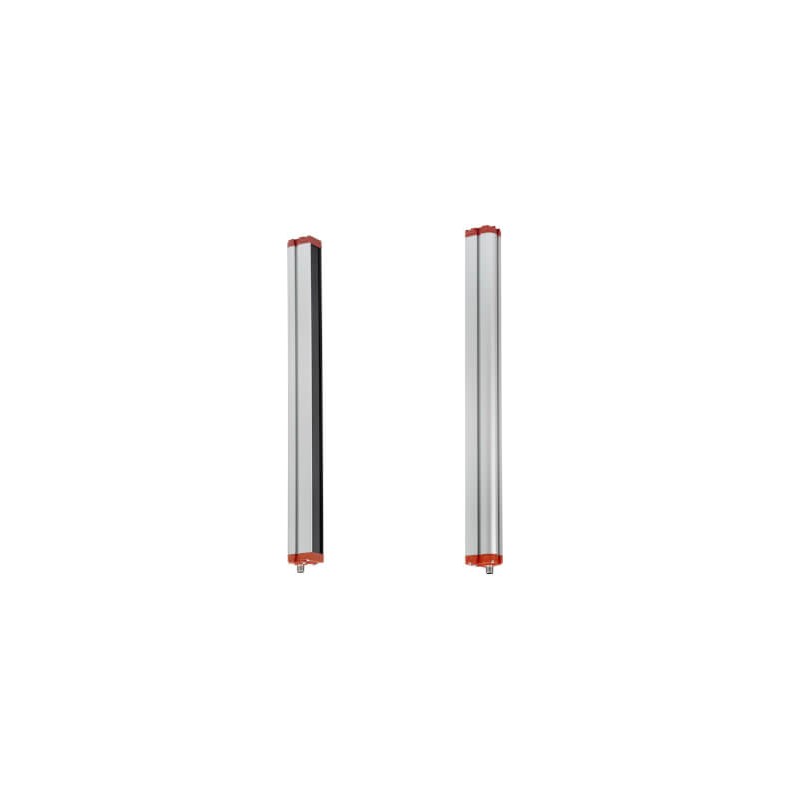

F3EM2 Measuring Light Curtain in robust aluminium housing
New

F3EM2 Measuring Light Curtain in robust aluminium housing

New product

Measuring light curtains in robust aluminium housing

The F3EM2 provides easy to install and set up height and profile measurement. The analogue output provides simple overall height detection and the serial output models provide single beam evaluation for profile measurements.

  • Robust aluminium housing
  • Analogue output for simple height detections
  • Serial output with single beam evaluation for profile measurement
  • Various output modes to adapt output data to the given application

Ordering information

Sensor type

Measurement range (mm)

Pitch

1

Sensing
distance

Channels

Connection method

Order code





RS-232-C serial/analog output models

2

Analog output models

Through-beam
(measuring)


150

5 mm

3 m

30

-

M12 8-pin/
M12 5-pin

-

-

F3EM2-005-150

F3EM2-005-150-AV

18 mm

15 m

8

-

-

-

F3EM2-018-150

F3EM2-018-150-AV

300

5 mm

3 m

60

-

-

-

F3EM2-005-300

F3EM2-005-300-AV

18 mm

15 m

16

-

-

-

F3EM2-018-300

F3EM2-018-300-AV

450

5 mm

3 m

90

-

-

-

F3EM2-005-450

F3EM2-005-450-AV

18 mm

15 m

24

-

-

-

F3EM2-018-450

F3EM2-018-450-AV

600

5 mm

3 m

120

-

-

-

F3EM2-005-600

F3EM2-005-600-AV

18 mm

15 m

32

-

-

-

F3EM2-018-600

F3EM2-018-600-AV

900

5 mm

3 m

180

-

-

-

F3EM2-005-900

F3EM2-005-900-AV

18 mm

15 m

48

-

-

-

F3EM2-018-900

F3EM2-018-900-AV

1200

5 mm

3 m

240

-

-

-

F3EM2-005-1200

F3EM2-005-1200-AV

18 mm

15 m

64

-

-

-

F3EM2-018-1200

F3EM2-018-1200-AV

1500

5 mm

3 m

300

-

-

-

F3EM2-005-1500

F3EM2-005-1500-AV

18 mm

15 m

80

-

-

-

F3EM2-018-1500

F3EM2-018-1500-AV

1800

5 mm

3 m

360

-

-

-

F3EM2-005-1800

F3EM2-005-1800-AV

18 mm

15 m

96

-

-

-

F3EM2-018-1800

F3EM2-018-1800-AV

2100

18 mm

15 m

112

-

-

-

F3EM2-018-2100

F3EM2-018-2100-AV

Connector cables

Type

Features

Material

Order code

Nut

Cable

Straight

Angled

M12

8 wires

CuZN

PUR 2 m

Y92E-M12PURSH8S2M-L



PUR 5 m

Y92E-M12PURSH8S5M-L



5 wires

CuZn

PVC 2 m

XS2F-M12PVC5S2M-EU

XS2F-M12PVC5A2M-EU

PUR 2 m

XS2F-M12PUR5S2M-EU

XS2F-M12PUR5A2M-EU

PVC 5 m

XS2F-M12PVC5S5M-EU

XS2F-M12PVC5A5M-EU

PUR 5 m

XS2F-M12PUR5S5M-EU

XS2F-M12PUR5A5M-EU

Specifications

Item

Through-beam

F3EM2-005_

F3EM2-018_

Sensing distance

0 to 3 m

0 to 15 m

Vertical measurement range

0 to MaxM mm; MaxM: 150, 300, 450, 600, 900, 1200, 1500, 1800

3

0 to MaxM mm; MaxM: 150, 300, 450, 600, 900, 1200, 1500, 1800

1

Minimum detectable object size

10 mm

30 mm

Pitch

5 mm

18 mm

Response time

4 ms + 80 µs × number of beams (+ transmitting time for serial operation)

Light source (wave length)

Infrared LED (880 nm)

Power supply voltage

24 VDC±20%

Ambient temperature

-10 to 55°C

Degree of protection

IEC 60529 IP65

Material

Case

Aluminum
