BOS01Z8 BOS 21M-PA-RH22-S4
New product

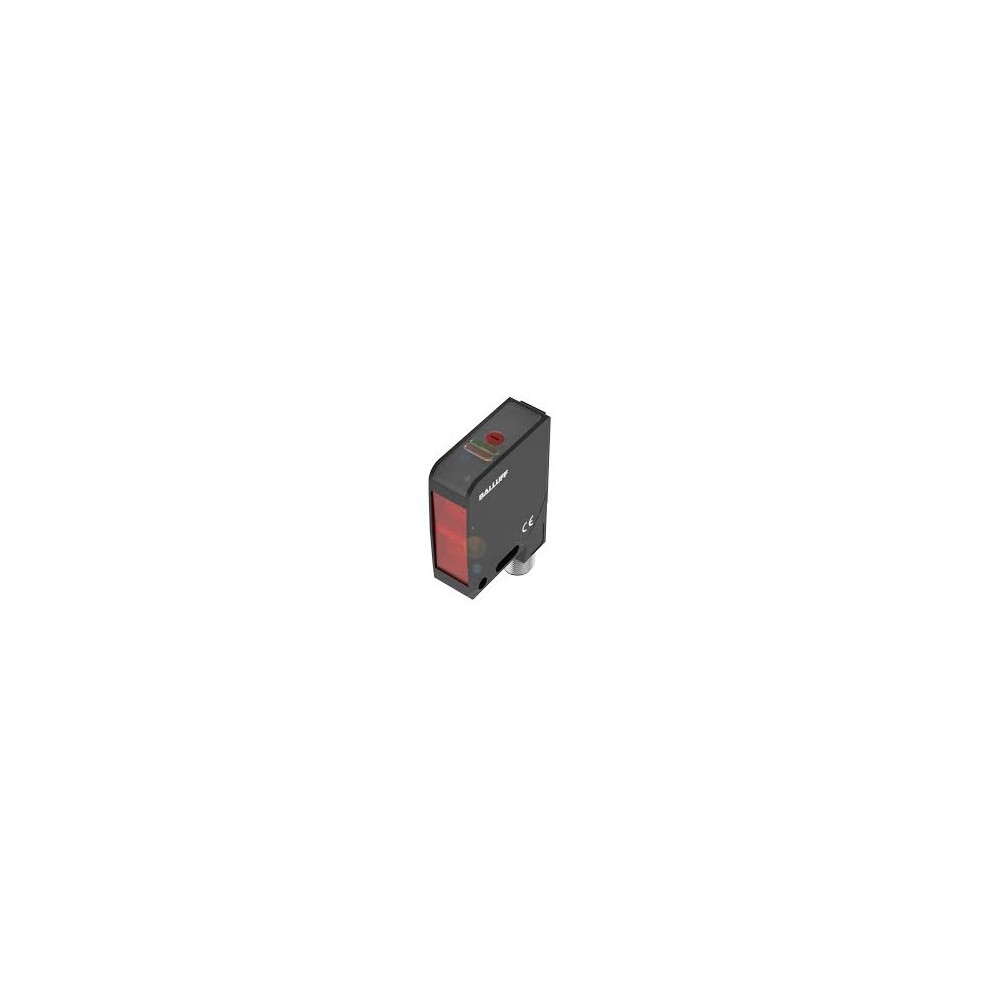

Balluff BOS01Z8 BOS 21M-PA-RH22-S4 Light switch
Series; 21M
Dimension; 15 x 51 x 42.5mm
Interface; PNP Normally open (NO) / PNP Normally closed (NC)
Working principle; Photoelectric sensor
Optical working principle; Diffuse reflection sensor, triangular shape
Unique optical properties; Background suppression
Beam feature; Focus typically 200mm
Light type; LED, red light
Light zone size; 6 x 6 mm at 200 mm
Range; 1...400mm
Connection; Connector, M12x1-male, 4-pole
Outer body material; Zinc, Die Casting, Powder Coated / Aluminum
Detection surface material; Pine
Working voltage Ub; 10th..30 VDC
