BGL003C BGL 50C-005-S4
New product

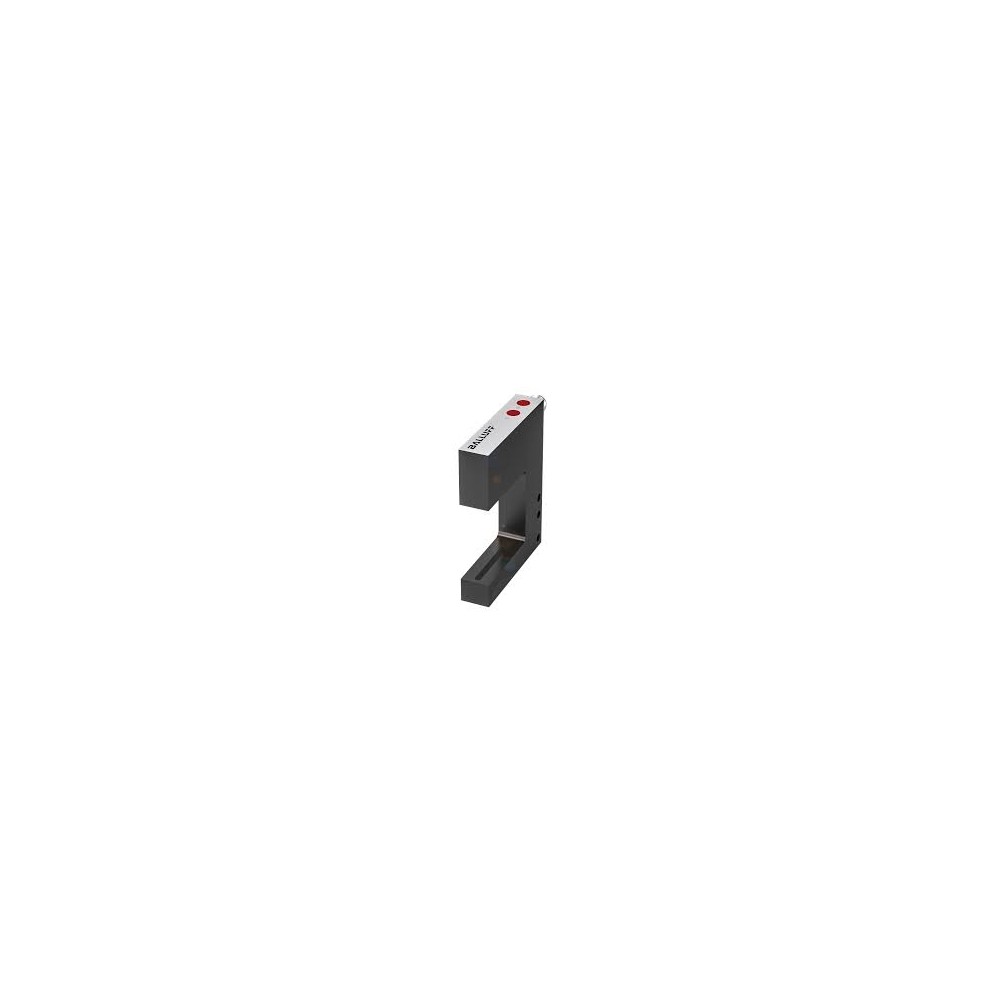

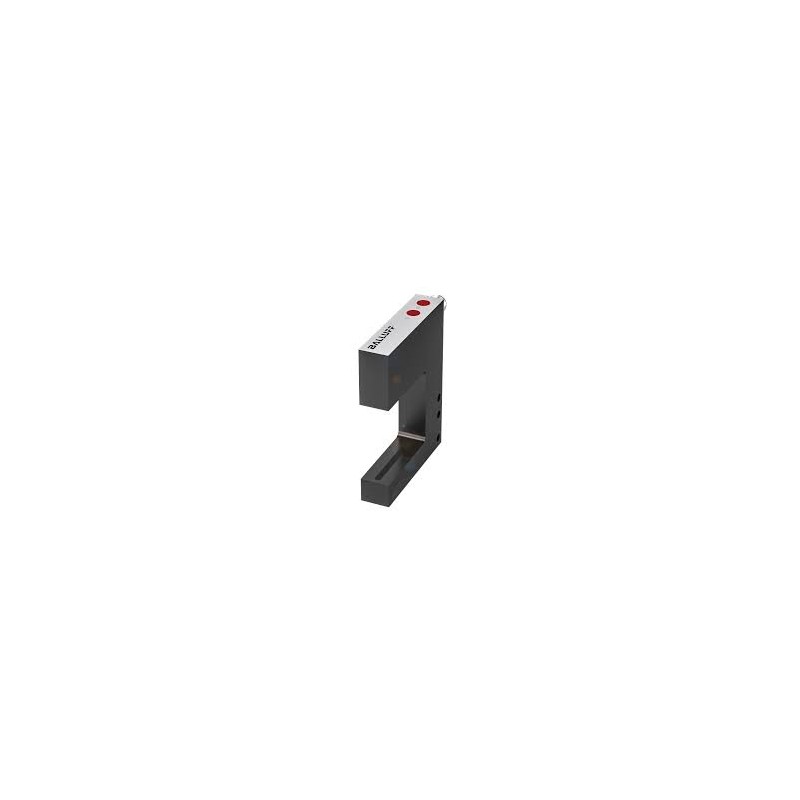

Balluff BGL003C BGL 50C-005-S4 Forked light barriers and angled light barriers
Series; C
Dimension; 18 x 100 x 93.5mm
Fork opening; 50mm
Interface; PNP NO/NC Analog, voltage 0…10 V
Working principle; Fork sensor
Optical working principle; Transmission beam sensor
Unique optical properties; Light sequence
Beam feature; Divergent
Light type; LED, red light
Light zone size; 3 x 28 mm Light output
Connection; Connector, M12x1-male, 4-pole
Outer body material; Aluminum, Anodized
Detection surface material; PMMA
Working voltage Ub; 18...30 VDC
