BOH00F7 BOH AI-R073-036-01-S49F
New product

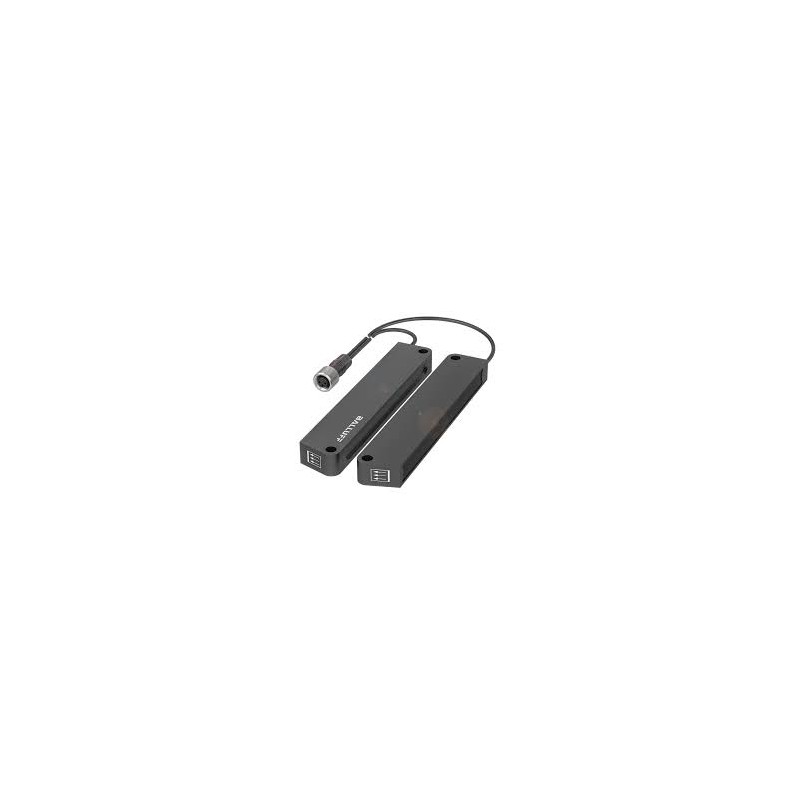

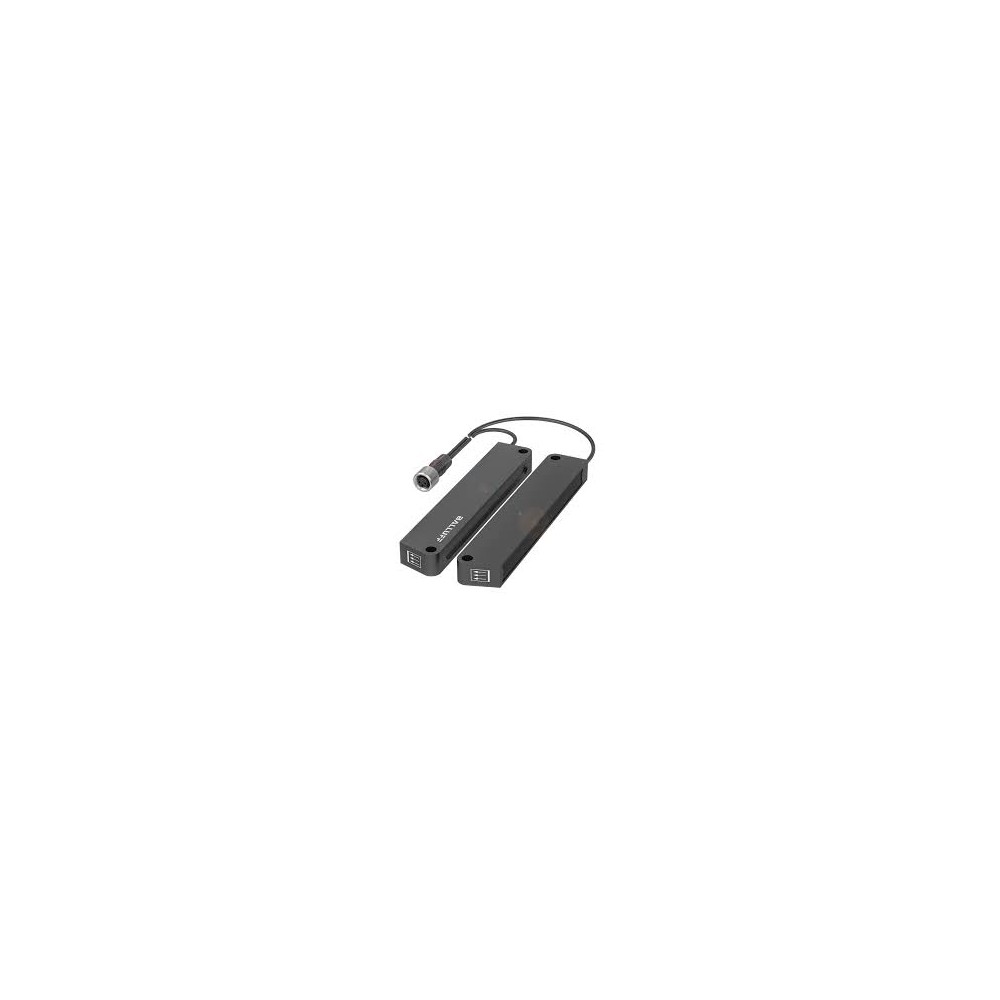

Balluff BOH00F7 BOH AI-R073-036-01-S49F Micromote – optical sensor heads
Dimension; 11 x 9 x 66mm
Working principle; Optical sensor head
Optical working principle; Transmission beam sensor
Unique optical properties; Light sequence
Light type; LED infrared
Active length AL 1; 50mm
Range; 10...500mm
Connection; Cable with connector, M8x1-female, 3-pin, 1 m, PUR
Outer body material; PA 6
Detection surface material; PMMA
Assembly; Screw M3 (2x)
The smallest part is typical; 0.80mm
