BOH000E BOH TK-M03-005-01-S49F
New product

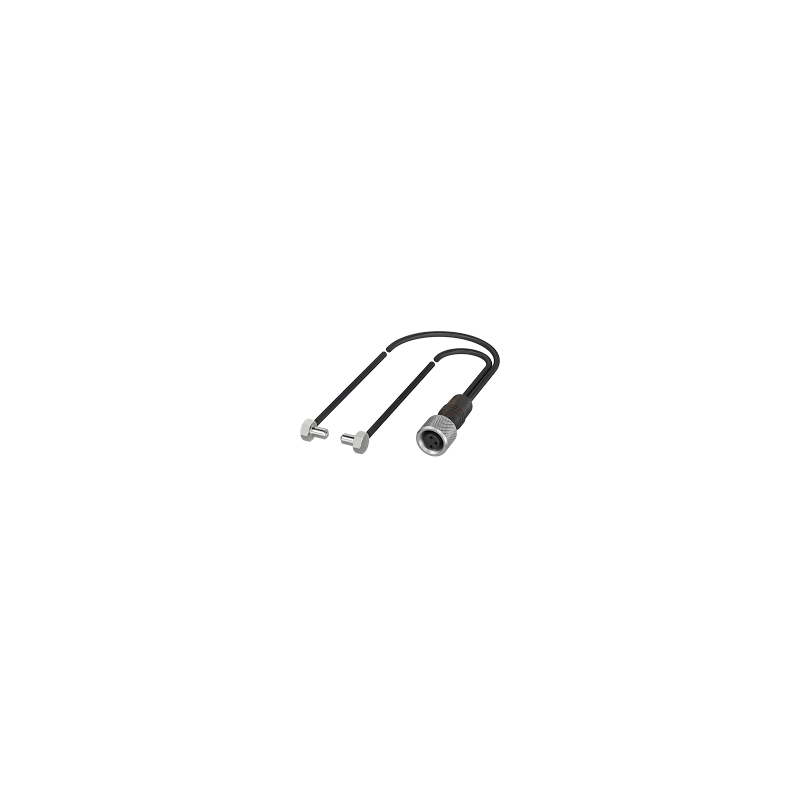

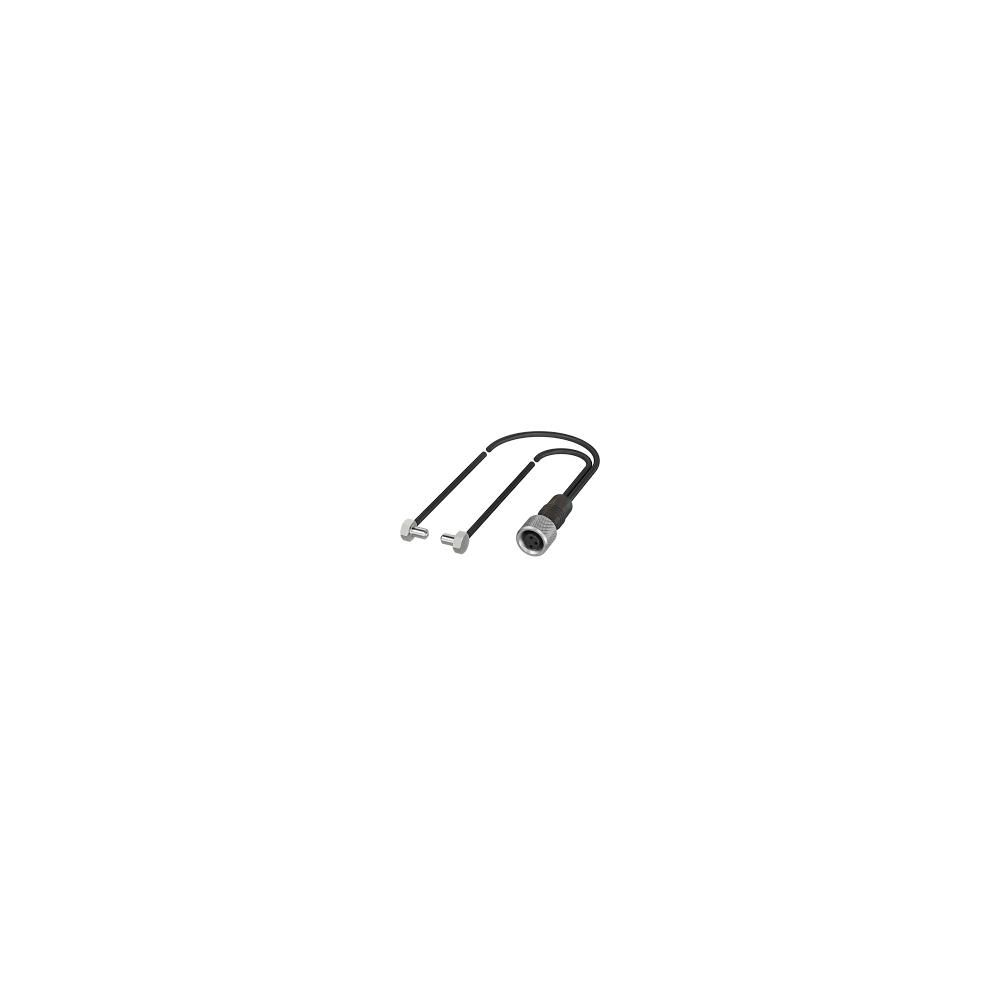

Balluff BOH000E BOH TK-M03-005-01-S49F Micromote – optical sensor heads
Series; M03
Dimension; 6 x 5.5 x 7.6mm
Interface; for amplifier switching
Working principle; Optical sensor head
Optical working principle; Transmission beam sensor
Beam feature; divergent, max 3.5°
Light type; Microspot-LED red light
Light zone size; Ø 10 mm at 100 mm
Range; 0...500mm
Connection; Cable with connector, M8x1-female, 1 m, PUR
Outer body material; Stainless steel
Detection surface material; Epoxy
Assembly; M3 Nut
The smallest part is typical; 0.2mm
