BOD0006 BOD 26K-LB05-S115-C
New product

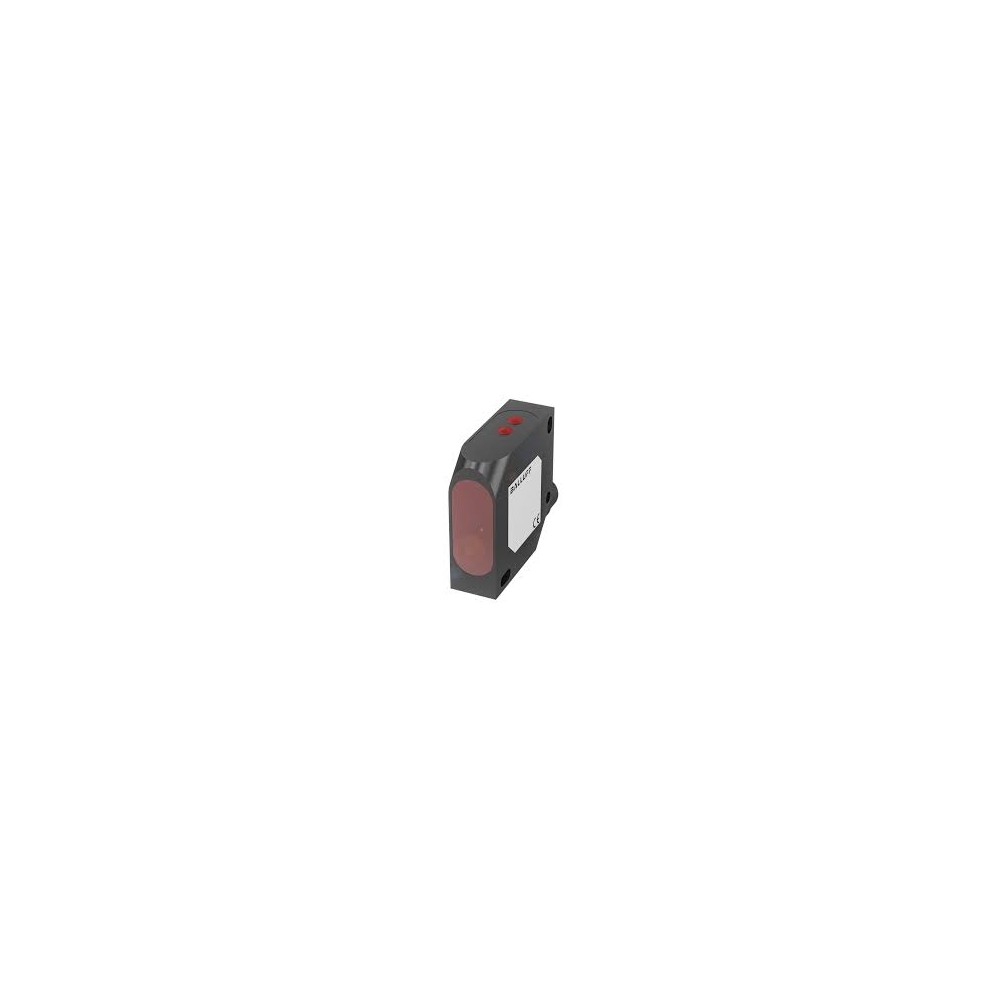

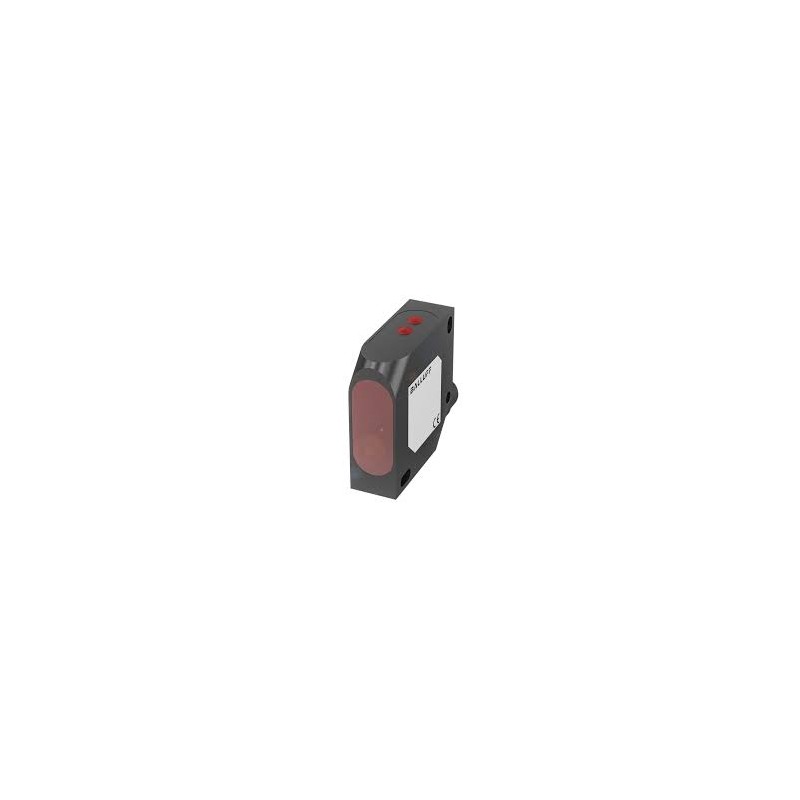

Balluff BOD0006 BOD 26K-LB05-S115-C Optical distance sensors
Series; 26K
Dimension; 17 x 50 x 50mm
Interface; Analog, current 4…20 mA linear rising/falling 2x PNP/NPN NO/NC
Working principle; Photoelectric distance sensor
Optical working principle; Triangulation
Beam feature; Divergent
Light type; Laser red light
Light zone size; 2 x 4.5 mm at 300 mm
Range; 80...300 mm, adjustable
Sensibility; ±0.25% FS
Repetition accuracy; 0.25% FS
Resolution; 0.1% FS
Connection; Connector, M12x1-male, 8-pole
Outer body material; ABS
Working voltage Ub; 18...30 VDC
