BOD001E BOD 66M-LA14-S92
New product

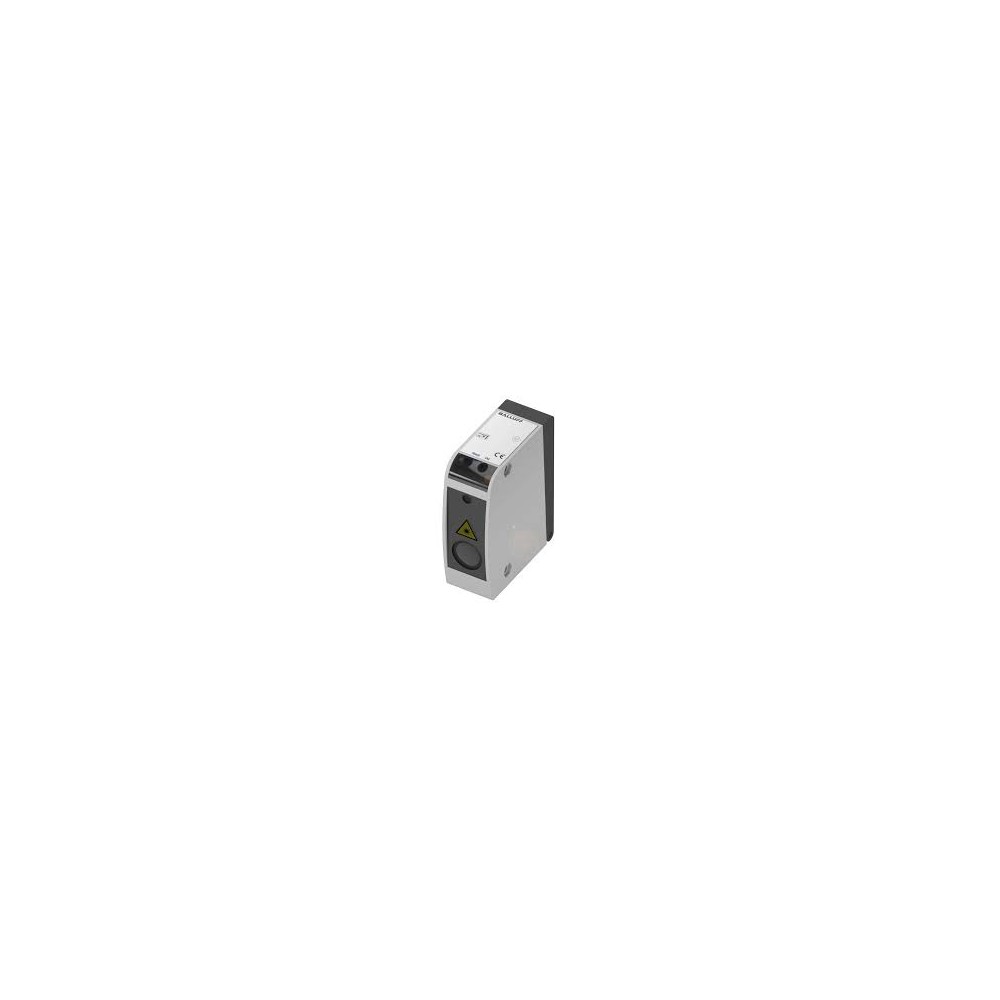

Balluff BOD001E BOD 66M-LA14-S92 Optical distance sensors
Series; 66M
Dimension; 30 x 100.5 x 73.2mm
Interface; Analog, voltage 1…10 V linear rising/falling PNP/NPN NO/NC
Working principle; Photoelectric distance sensor
Optical working principle; Triangulation
Beam feature; Divergent
Light type; Laser red light
Light zone size; 2 x 6 mm in 2 m
Range; 150...2000mm
Sensibility; ±1.5% FS
Repetition accuracy; 0.5% FS
Resolution; 1...3mm
Connection; Connector, M12x1-male, 5-pole
Outer body material; Zinc, Cast, painted
Working voltage Ub; 18...30 VDC
