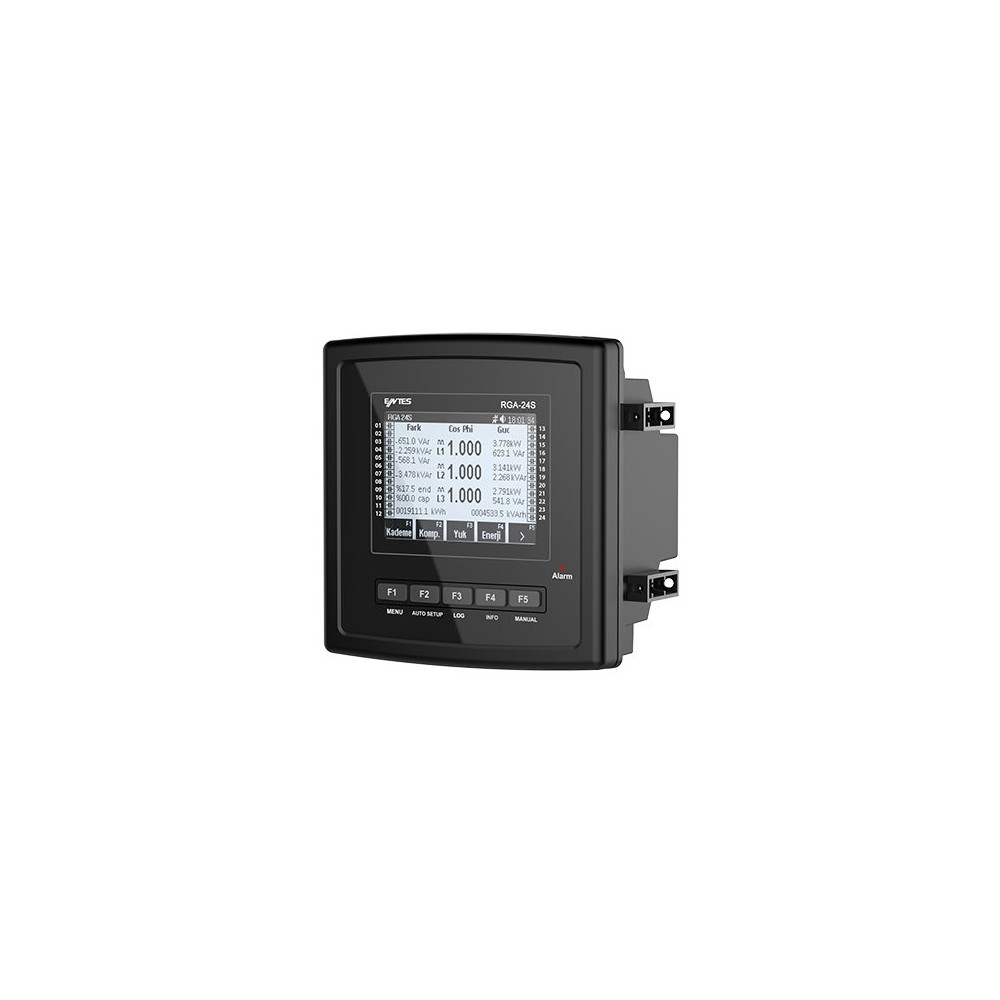

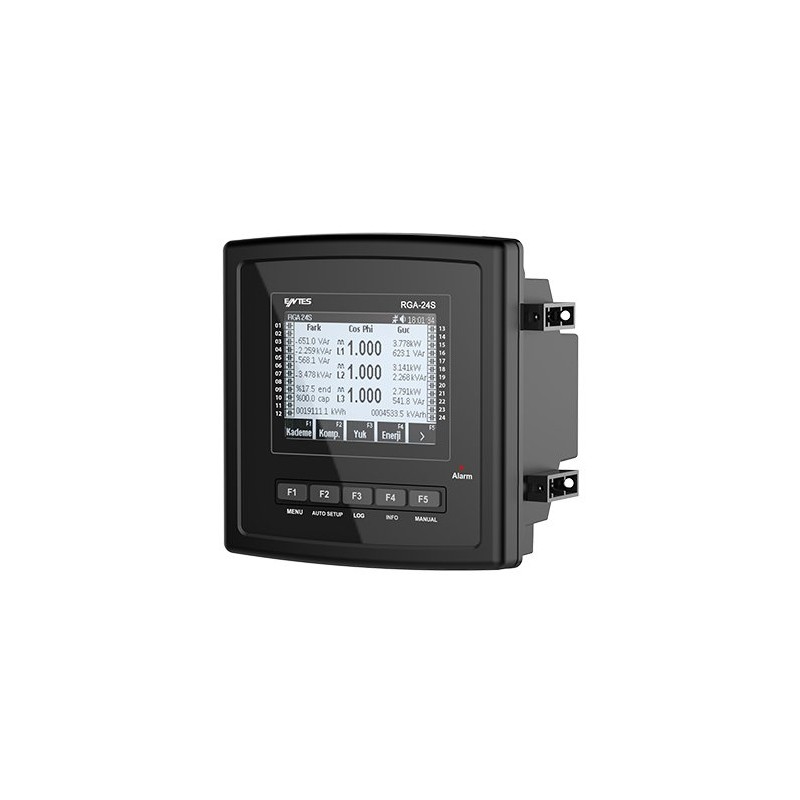

RGA-15S Power Factor Controllers

1. General Information RGA Series is the new 3-phase reactive power factor controller ENTES. It controls each of the 3 phases individually with its 15 and 20 steps and converges the Cos Φ value of each phase into 1 to prevent businesses from being fined. It cannot be used for other purposes (energy analyser). The device has 4-phase 1-neutral voltage input, separate current inputs for network and load steps, and RS-485 communication port. It has up to 20** and 15** step outputs and 1 alarm output. Connection diagram is at the back of the device. The device has replaceable batteries. The box comes with CR2032 battery. If you operate the device without inserting the battery, some information such as the time information may be deleted in case of power failure. The device has a Graphic Display and 5 buttons. Functions of the buttons are written on them and functions are updated on each window. ** The module with the SVAR driver has up to 16 steps, and an additional SVAR driver.
